Now on to the main part of the job !

Second part of this procedure is to replace the toasted tube with the new bare one using the Sony original LC housing. This part is sub divided in ten sections:

- Removal of 150-200ml of glycol from the LC tank,
- Removal of the tube’s metal pressure bracket,
- Removal of the HV lead silicon cup,
- Cleaning remaining silicon traces from the HV lead silicon cup,
- Glueing the HV lead silicon cup on the new tube,
- Old/new tube swap using the LC housing still filled with most of the glycol,
- Putting the 150-200ml of glycol back in the LC tank,
- Placing tissue/scotch tape on new tube neck,
- Placing the DY/Sub-DY/MG and 2P/4P coils back on the tube neck,
- Tube placement and re-wiring inside the G70

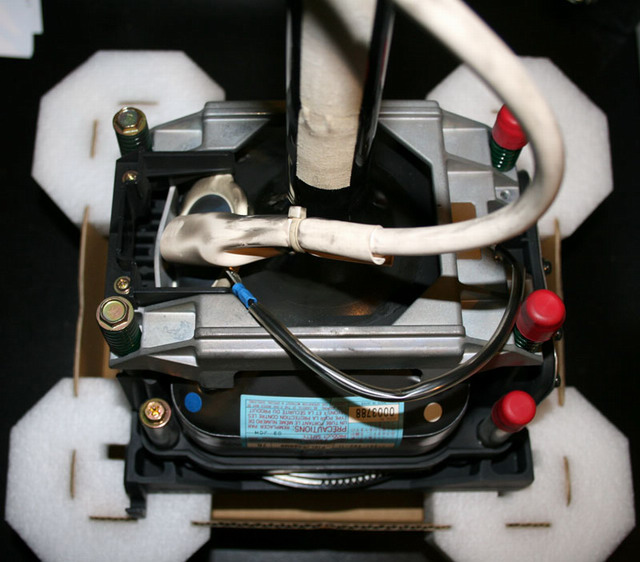

1. Place the toasted tube + LC housing on a proper/stable surface:

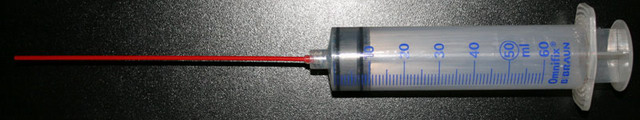

2. Buy a 50ml plastic syringe and add a 2mm diameter thin spray tube on the end:

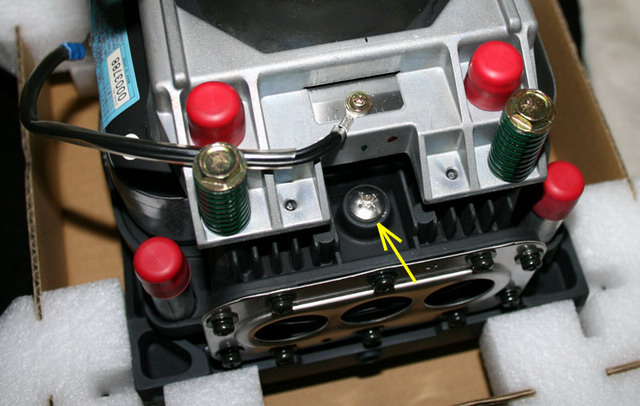

3. Locate the glycol tank filling screw:

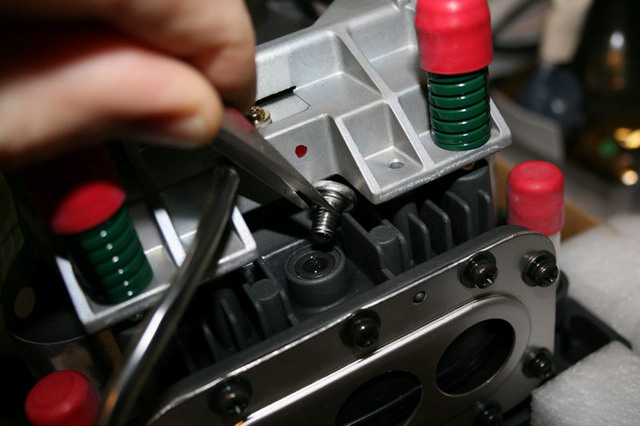

4. Unscrew the tank filling screw and leave the annular rubber joint in place:

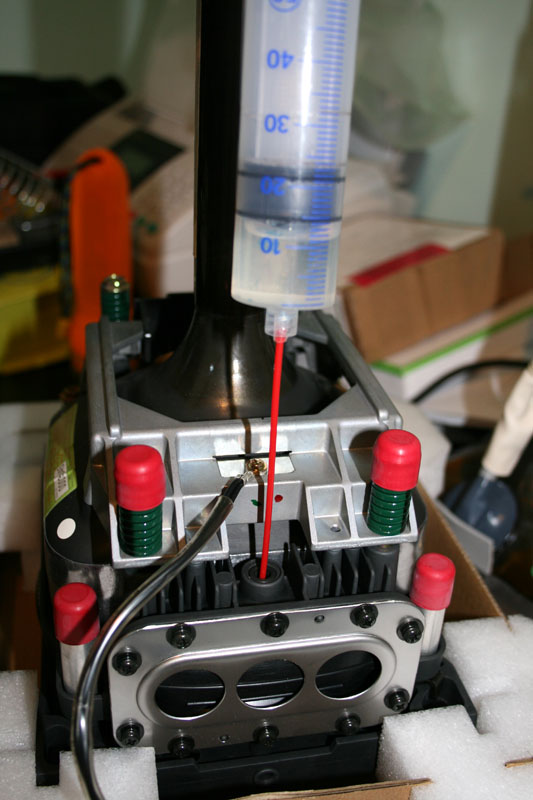

5. Using the syringe, remove glycol from the tank:
