Layout and Setup Tips

 (Page 1)

Page: 1 2 3 4 5 6 7 8 9

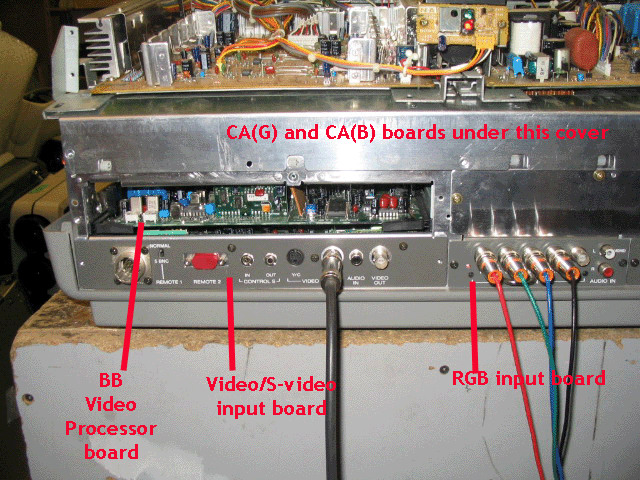

Looking at the back of the set, a blank cover hides the BB board which contains video processing circuitry. The video/S-video input board is located under the BB board. The standard RGB input board is shown to the right of the video input board. The video output boards are located under the metal shield over the BB board.
