| Posted: Fri Aug 31, 2007 8:30 pm Post subject: XG pc cable |
|
|
Hi all,
I am looking to build the cable to connect my XG75 to a pc. I have the DB9 and DB15 connectors. I was wondering what I should use for the actual cable?
Anybody built one that can advise?
Thanks,
David
|
|
| Back to top |
|
 |
dbaisey
Joined: 09 Mar 2006
Posts: 821
Location: Southern Cal LA / Seattle WA
|
| Posted: Sat Sep 01, 2007 4:05 pm Post subject: |
|
|

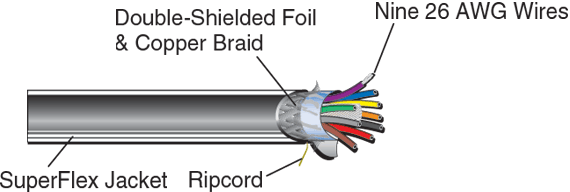

Any serial multi conductor 26AWG cable.[/img]
| Description: |
|
| Filesize: |
17.45 KB |
| Viewed: |
6158 Time(s) |
|
|
|
| Back to top |
|
|
Dgeorge
Joined: 17 Aug 2007
Posts: 30
|
| Posted: Sat Sep 01, 2007 4:39 pm Post subject: |
|
|
Doug,
I was thinking of buying a 15pin serial cable and cutting the connector off one end and splicing a 9pin connector on. Will that work?
Also, the diagram on Curts site shows a15pin male and 9pin female connector but my pj has a small 15pin female connector that is the same size as a 9pin. Is that an error on the diagram?
Thanks for your help,
David[/i]
|
|
| Back to top |
|
|
dbaisey
Joined: 09 Mar 2006
Posts: 821
Location: Southern Cal LA / Seattle WA
|
| Posted: Sat Sep 01, 2007 5:04 pm Post subject: |
|
|
You can try it that way but some cable pin outs are not straight through and have grounds terminated together. The 15 pin male is for the option port that is female on the projector. The 9 pin end is what gets connected to the PC's serial port and is female. The 9pin is male on the serial card. Its not a error. The 15 pin is the same size as the 9 pin but different pin count and pin out.
Make sure the 9 pin end is wired female. Check everything and make sure all pins pass to the right pin and are not terminated to anything else. Doug
|
|
| Back to top |
|
|
CZ Eddie
Joined: 23 Mar 2006
Posts: 1601
Location: Austin, TX
|
| Posted: Sat Sep 01, 2007 6:13 pm Post subject: Re: XG pc cable |
|
|
| Dgeorge wrote: | Hi all,
I am looking to build the cable to connect my XG75 to a pc. I have the DB9 and DB15 connectors. I was wondering what I should use for the actual cable?
Anybody built one that can advise?
Thanks,
David |
Your DB9 connector won't do anything for you if you're looking to add VGA input for your XG. If you're just looking for a data cable, then I'm not sure what you need.
But again, if VGA output is what you're after, then Fry's has a 6' VGA to 5BNC 50ohm cable for about $17 I think. You really want 75ohm for best results though.
_________________
Back after a digital sabatical.
|
|
| Back to top |
|
|
dbaisey
Joined: 09 Mar 2006
Posts: 821
Location: Southern Cal LA / Seattle WA
|
| Posted: Sat Sep 01, 2007 6:24 pm Post subject: |
|
|
|
I thought this was for PC CONTROL only. If not then if you have a VGA 15 pin on the video card you would need a HD15 VGA to 5 BNC like CZ said but 75 ohm that would connect to the 5 BNCs on the input board A. Doug
|
|
| Back to top |
|
|
Dgeorge
Joined: 17 Aug 2007
Posts: 30
|
| Posted: Sat Sep 01, 2007 6:54 pm Post subject: |
|
|
Yup, pc control only.
The reason I want to do this is the pj shut down one night and lost all its settings so i want to be able to store them on my pc in case it happens again so I can just reload them from the pc.
|
|
| Back to top |
|
|
fuzzybee
Joined: 26 Sep 2006
Posts: 187
|
| Posted: Mon Sep 03, 2007 4:20 am Post subject: |
|
|
|
Is this the same cable that serially controls the ISS switchers?
|
|
