bluemoonhu
Joined: 16 Feb 2021
Posts: 259
|
| Posted: Tue May 16, 2023 1:04 am Post subject: Barco C7 image jitter |
|
|
|
I got a C7 produced in 2002, but after turning it on, the image jittered and I don't know why. I think some potentiometer needs to be adjusted, but I don't know how to do it. Thank you all!
|
|
| Back to top |
|
 |
kal
Forum Administrator
Joined: 06 Mar 2006
Posts: 18114
Location: Ottawa, Canada
TV/Projector: JVC DLA-NZ7
|
|
| Back to top |
|
|
bluemoonhu
Joined: 16 Feb 2021
Posts: 259
|
| Posted: Tue May 16, 2023 1:38 pm Post subject: |
|
|
|
Sorry！Barco cine7--http://www.curtpalme.com/Barco701.shtm
|
|
| Back to top |
|
|
kal
Forum Administrator
Joined: 06 Mar 2006
Posts: 18114
Location: Ottawa, Canada
TV/Projector: JVC DLA-NZ7
|
|
| Back to top |
|
|
bluemoonhu
Joined: 16 Feb 2021
Posts: 259
|
| Posted: Tue May 16, 2023 2:11 pm Post subject: |
|
|
|
Regardless of whether the signal is input or not, the image will jitter. I have a short video, but I can't upload it
|
|
| Back to top |
|
|
kal
Forum Administrator
Joined: 06 Mar 2006
Posts: 18114
Location: Ottawa, Canada
TV/Projector: JVC DLA-NZ7
|
|
| Back to top |
|
|
AnalogRocks
Forum Moderator
Joined: 08 Mar 2006
Posts: 26706
Location: Toronto, Ontario, Canada
TV/Projector: Sony 1252Q, AMPRO 4000G
|
| Posted: Tue May 16, 2023 3:09 pm Post subject: |
|
|
What source are you feeding it and which input are you using?
_________________
Tech support for nothing
CRT.
HD done right!
|
|
| Back to top |
|
|
bluemoonhu
Joined: 16 Feb 2021
Posts: 259
|
| Posted: Tue May 16, 2023 3:31 pm Post subject: |
|
|
| AnalogRocks wrote: | | What source are you feeding it and which input are you using? |
S-video
|
|
| Back to top |
|
|
Curt Palme
CRT Tech
Joined: 08 Mar 2006
Posts: 24396
Location: Langley, BC
TV/Projector: All of them!
|
| Posted: Wed May 17, 2023 2:07 am Post subject: |
|
|
|
Link to a video please? Jitter can mean about 10 different things..
|
|
| Back to top |
|
|
bluemoonhu
Joined: 16 Feb 2021
Posts: 259
|
| Posted: Wed May 17, 2023 4:50 am Post subject: Barco cine 7 issue |
|
|
| Curt Palme wrote: | | Link to a video please? Jitter can mean about 10 different things.. |
Hi Curt ,I can only upload the video through email, Please check your email。Thanks!
|
|
| Back to top |
|
|
Hulio
Joined: 15 Apr 2006
Posts: 494
Location: Belgium
|
| Posted: Wed May 17, 2023 10:28 am Post subject: |
|
|
Since we know very little about the video path you are using, here some easy things to check first, before you start tweaking pots or swapping boards:
Firstly, on a Cine 7, you have to configure port 2 to use S-video signals. With the video active, press ADJ on your IR remote, service menus, random access, selected source, picture tuning, port 2. Now, pressing enter each time, will let you toggle between Video an S-video. Make sure you choose S-video, and press ADJ again to go out of the menu. See if your image is jitter free now...
Secondly, maybe your line multiplier should be active. Press ADJ, random access, picture tuning (here you might set the sync to slow), line multiplier. Pressing enter will toggle between ON and OFF. Give it a try.
|
|
| Back to top |
|
|
kal
Forum Administrator
Joined: 06 Mar 2006
Posts: 18114
Location: Ottawa, Canada
TV/Projector: JVC DLA-NZ7
|
| Posted: Wed May 17, 2023 12:18 pm Post subject: Re: Barco cine 7 issue |
|
|
| bluemoonhu wrote: | | I can only upload the video through email, Please check your email |
Why can’t you use any of the free video or file hosting services available on the internet? There are literally hundreds if not thousands available. Examples: YouTube, Imgur, Instagram, Vimeo, Twitch, Google Drive, Facebook, Twitter, etc. To name a few. If you have access to the internet as you do to be able to post here, you would have access to at least one of these free services.
Kal
_________________
Support our site by using our affiliate links. We thank you!
My basement/HT/bar/brewery build 2.0
|
|
| Back to top |
|
|
bluemoonhu
Joined: 16 Feb 2021
Posts: 259
|
| Posted: Wed May 17, 2023 12:35 pm Post subject: Re: Barco cine 7 issue |
|
|
| kal wrote: | | bluemoonhu wrote: | | I can only upload the video through email, Please check your email |
Why can’t you use any of the free video or file hosting services available on the internet? There are literally hundreds if not thousands available. Examples: YouTube, Imgur, Instagram, Vimeo, Twitch, Google Drive, Facebook, Twitter, etc. To name a few. If you have access to the internet as you do to be able to post here, you would have access to at least one of these free services.
Kal |
Sorry! I cannot obtain the websites you mentioned.
|
|
| Back to top |
|
|
bluemoonhu
Joined: 16 Feb 2021
Posts: 259
|
| Posted: Wed May 17, 2023 9:43 pm Post subject: Re: Barco cine 7 issue |
|
|
| kal wrote: | | bluemoonhu wrote: | | I can only upload the video through email, Please check your email |
Why can’t you use any of the free video or file hosting services available on the internet? There are literally hundreds if not thousands available. Examples: YouTube, Imgur, Instagram, Vimeo, Twitch, Google Drive, Facebook, Twitter, etc. To name a few. If you have access to the internet as you do to be able to post here, you would have access to at least one of these free services.
Kal |
https://youtu.be/ghFN64wpliU
Can you see the video？
|
|
| Back to top |
|
|
kal
Forum Administrator
Joined: 06 Mar 2006
Posts: 18114
Location: Ottawa, Canada
TV/Projector: JVC DLA-NZ7
|
|
| Back to top |
|
|
Curt Palme
CRT Tech
Joined: 08 Mar 2006
Posts: 24396
Location: Langley, BC
TV/Projector: All of them!
|
| Posted: Wed May 17, 2023 11:56 pm Post subject: |
|
|
I've never seen that either. It looks like the H sync is temporarily failing, which could be a problem on the RGB input board or the deflection board.
I was hoping the picture would jump up and down, indicating a vertical problem, but that's not the case here.
|
|
| Back to top |
|
|
bluemoonhu
Joined: 16 Feb 2021
Posts: 259
|
| Posted: Thu May 18, 2023 12:58 am Post subject: |
|
|
| Curt Palme wrote: | I've never seen that either. It looks like the H sync is temporarily failing, which could be a problem on the RGB input board or the deflection board.
I was hoping the picture would jump up and down, indicating a vertical problem, but that's not the case here. |
If there is no signal input, the displayed image will show such jitter after starting up，
If the image is adjusted to a grid state， the picture would jump up and down。
|
|
| Back to top |
|
|
bluemoonhu
Joined: 16 Feb 2021
Posts: 259
|
| Posted: Thu May 18, 2023 1:09 am Post subject: |
|
|
|
When selecting a signal source on the remote (between key 2 and 4,with the input signal corresponding to 1080i for key 4), the machine hangs up and displays "SF" fault, deflection board issue, then there will be no any images
|
|
| Back to top |
|
|
bluemoonhu
Joined: 16 Feb 2021
Posts: 259
|
| Posted: Thu May 18, 2023 1:11 am Post subject: Barco C7 image jitter |
|
|

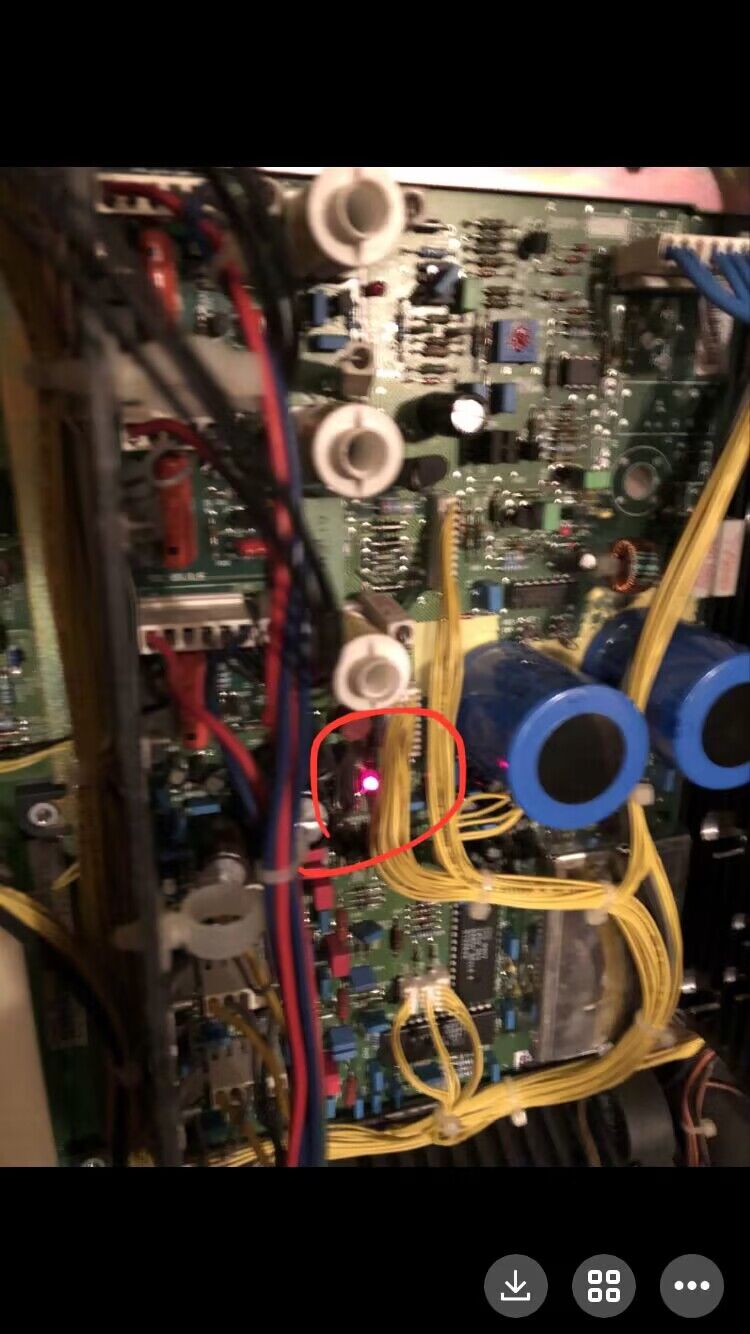

The deflection board
| Description: |
|
| Filesize: |
162.35 KB |
| Viewed: |
11886 Time(s) |
|
|
|
| Back to top |
|
|
bluemoonhu
Joined: 16 Feb 2021
Posts: 259
|
| Posted: Thu May 18, 2023 1:12 am Post subject: Barco C7 image jitter |
|
|

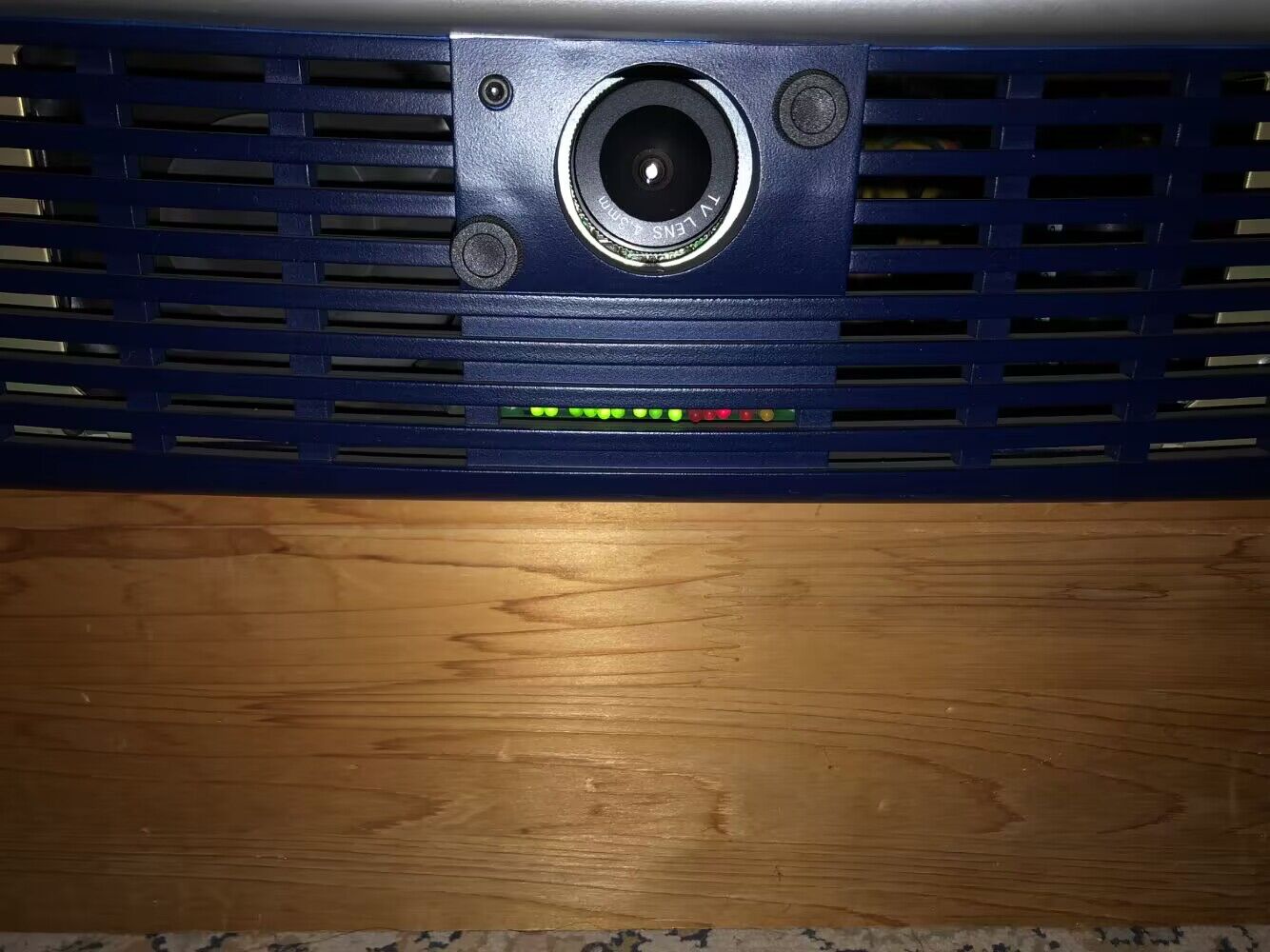

The deflection board
| Description: |
|
| Filesize: |
120.49 KB |
| Viewed: |
11885 Time(s) |
|
|
|
| Back to top |
|
|
|
|
