| Posted: Sat Jan 15, 2022 6:57 am Post subject: barco 808s:contrast adjustment failure |
|
|
|
I have an 808s projector. Turn it on and input the signal. The image presented is very dark and the contrast cannot be adjusted, but the brightness can be adjusted. I don't know what's wrong? thanks!
|
|
| Back to top |
|
 |
Curt Palme
CRT Tech
Joined: 08 Mar 2006
Posts: 24396
Location: Langley, BC
TV/Projector: All of them!
|
| Posted: Sat Jan 15, 2022 4:01 pm Post subject: |
|
|
|
It's likely a problem in the RGB Switcher board or the quad decoder.
|
|
| Back to top |
|
|
bluemoonhu
Joined: 16 Feb 2021
Posts: 259
|
| Posted: Sun Jan 16, 2022 3:23 am Post subject: |
|
|
The quad decoder board should be bad.
Thanks! Curt
|
|
| Back to top |
|
|
bluemoonhu
Joined: 16 Feb 2021
Posts: 259
|
| Posted: Sat Jan 22, 2022 5:26 am Post subject: |
|
|
|
I replaced the quad decoder，the 808S can run properly, the contrast can be adjusted, but I found that the brightness of the red tube was abnormal when the machine was running, its brightness is relatively low, so, the image is color biased, I don't know what the problem is？Thanks!
|
|
| Back to top |
|
|
Hulio
Joined: 15 Apr 2006
Posts: 494
Location: Belgium
|
| Posted: Sat Jan 22, 2022 7:25 am Post subject: |
|
|
|
G2 voltage maybe ? Adjust G2 with a non-metal screwdriver according to page 40 on installation manual.
|
|
| Back to top |
|
|
bluemoonhu
Joined: 16 Feb 2021
Posts: 259
|
| Posted: Sat Jan 22, 2022 1:11 pm Post subject: |
|
|
|
I know the problem is not G2 voltage, I usually adjust the G2 voltage of red, green and blue to the standard value.
|
|
| Back to top |
|
|
bluemoonhu
Joined: 16 Feb 2021
Posts: 259
|
| Posted: Sat Jan 22, 2022 2:18 pm Post subject: |
|
|
|
In fact, I find that the brightness of the green tube is very bright, the brightness of the blue tube is slightly weak, and the brightness of the red tube is the lowest
|
|
| Back to top |
|
|
robin36mac
Joined: 24 Jan 2009
Posts: 46
|
| Posted: Sun Jan 23, 2022 11:15 am Post subject: |
|
|
If you are sure about the G2 voltage, you can check in Picture tuning/Color balance the gain and cut off for each tube
Robin
|
|
| Back to top |
|
|
bluemoonhu
Joined: 16 Feb 2021
Posts: 259
|
| Posted: Sun Jan 23, 2022 12:43 pm Post subject: |
|
|
|
I set the color balance to 6500，the color will be seriously biased, the brightness of the green tube is very bright, the brightness of the red tube is the lowest.I tried to adjust the Picture tuning/Color balance the gain and cut off for each tube ,but the color of the picture still was seriously biased
|
|
| Back to top |
|
|
bluemoonhu
Joined: 16 Feb 2021
Posts: 259
|
| Posted: Sun Jan 23, 2022 1:01 pm Post subject: barco 808s:contrast adjustment failure |
|
|

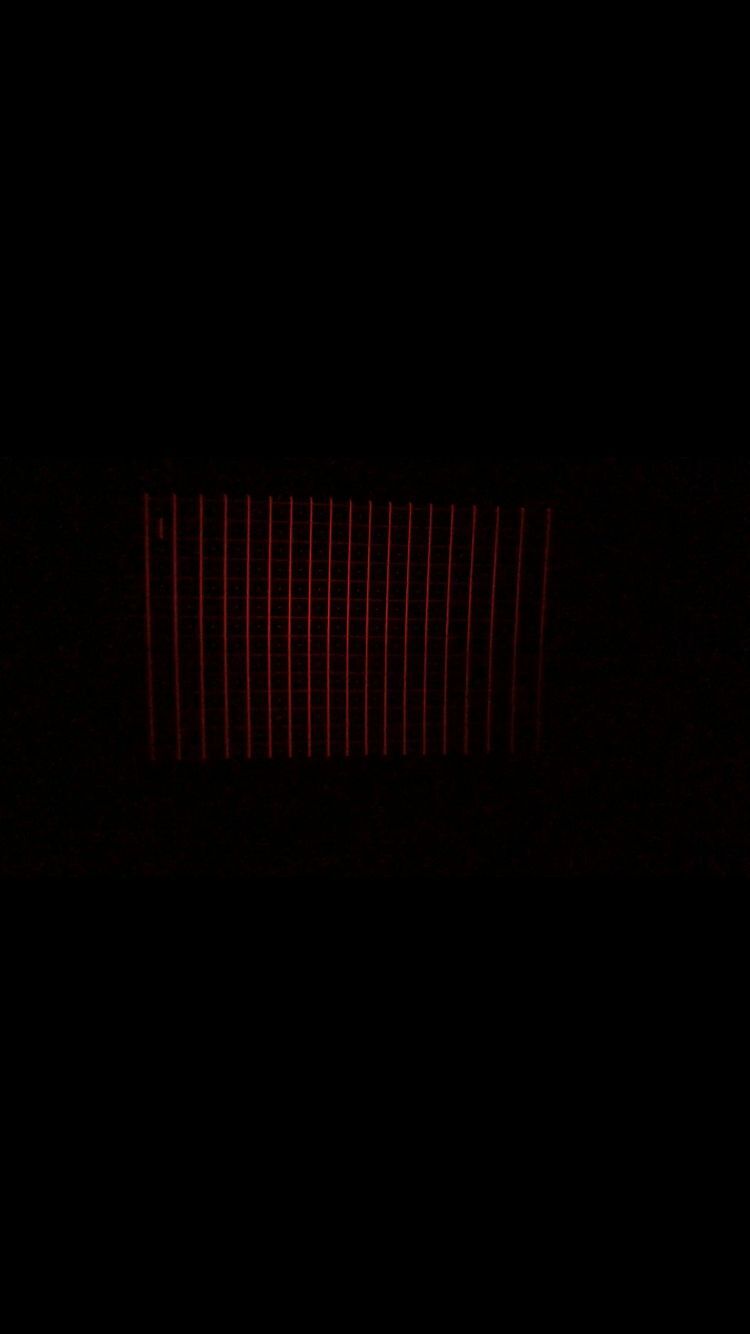

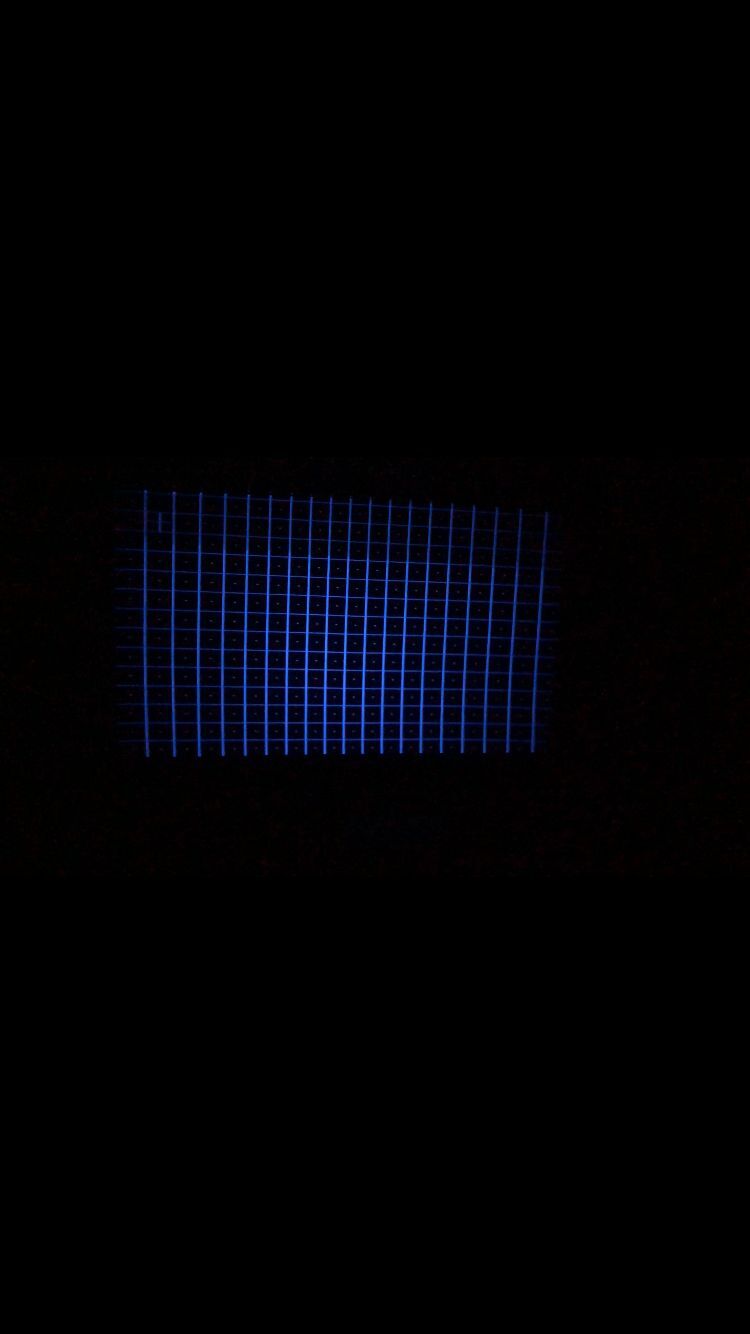

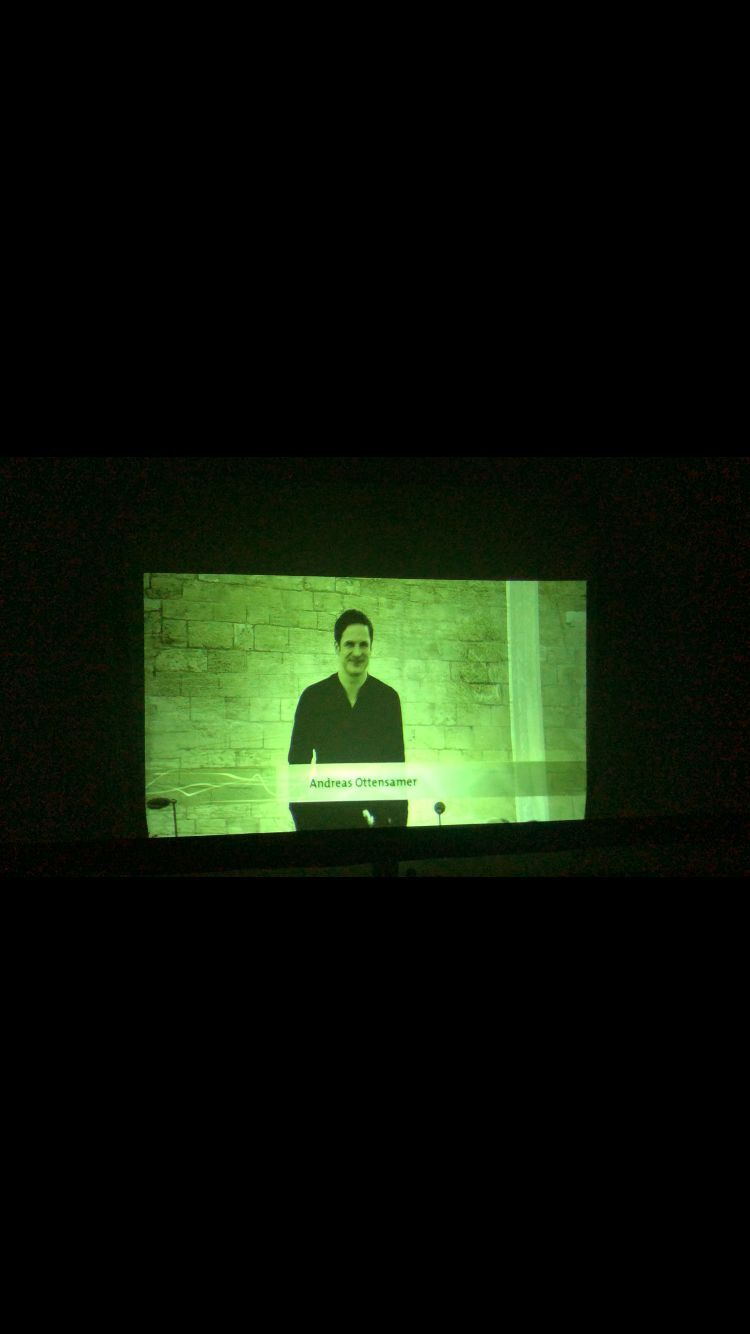

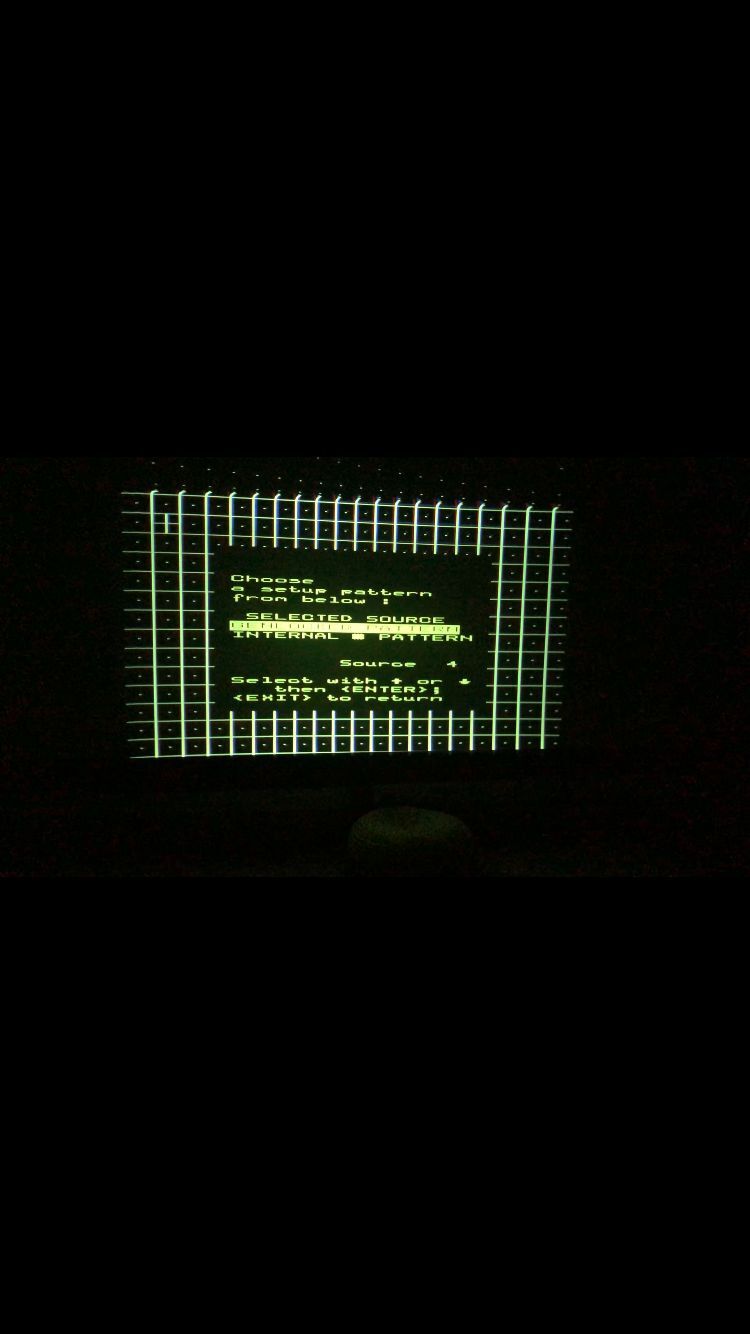

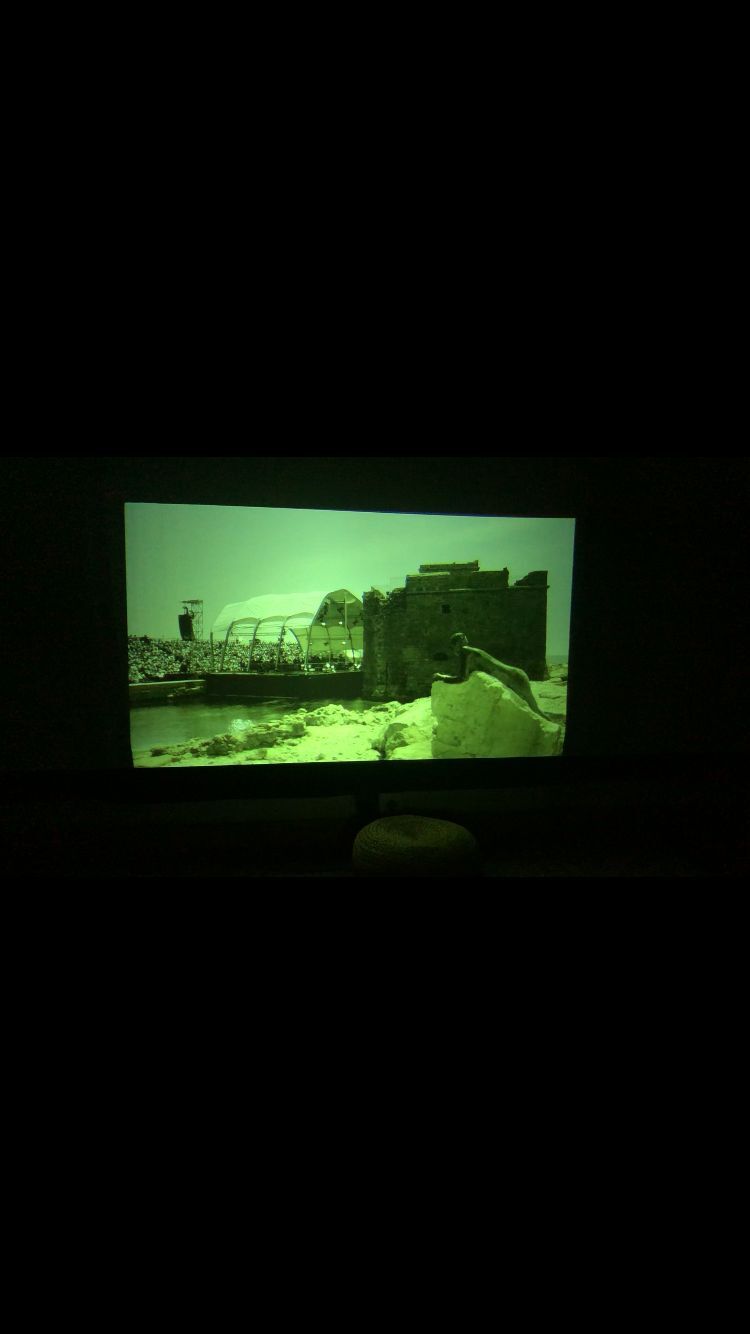

some pics[/img]
| Description: |
|
| Filesize: |
51.66 KB |
| Viewed: |
5029 Time(s) |
|
|
|
| Back to top |
|
|
bluemoonhu
Joined: 16 Feb 2021
Posts: 259
|
| Posted: Sun Jan 23, 2022 1:02 pm Post subject: barco 808s:contrast adjustment failure |
|
|
pics
| Description: |
|
| Filesize: |
40.86 KB |
| Viewed: |
5026 Time(s) |
|
|
|
| Back to top |
|
|
bluemoonhu
Joined: 16 Feb 2021
Posts: 259
|
| Posted: Sun Jan 23, 2022 1:03 pm Post subject: barco 808s:contrast adjustment failure |
|
|
pics
| Description: |
|
| Filesize: |
30.5 KB |
| Viewed: |
5023 Time(s) |
|
|
|
| Back to top |
|
|
bluemoonhu
Joined: 16 Feb 2021
Posts: 259
|
| Posted: Sun Jan 23, 2022 1:03 pm Post subject: barco 808s:contrast adjustment failure |
|
|
pics
| Description: |
|
| Filesize: |
60.37 KB |
| Viewed: |
5020 Time(s) |
|
|
|
| Back to top |
|
|
bluemoonhu
Joined: 16 Feb 2021
Posts: 259
|
| Posted: Sun Jan 23, 2022 1:04 pm Post subject: barco 808s:contrast adjustment failure |
|
|
pics
| Description: |
|
| Filesize: |
40.77 KB |
| Viewed: |
5017 Time(s) |
|
|
|
| Back to top |
|
|
Hulio
Joined: 15 Apr 2006
Posts: 494
Location: Belgium
|
| Posted: Sun Jan 23, 2022 1:48 pm Post subject: |
|
|
Ok, few things.
When you said that the G2 voltage was adjusted to standard value, how you've done that ? By measuring the voltage, by eye, or till the green G2 leds on the RGB amplifiers were out (while in the G2 adjustment menu) ?
Also, if you have a spare RGB driver board, try to swap it. And in case the contrast modulation, BCL-link and soft-edge boards are insalled, get rid of those too. They complicate things, and are useless for single projector configuration anyway.
|
|
| Back to top |
|
|
bluemoonhu
Joined: 16 Feb 2021
Posts: 259
|
| Posted: Sun Jan 23, 2022 1:58 pm Post subject: barco 808s:contrast adjustment failure |
|
|

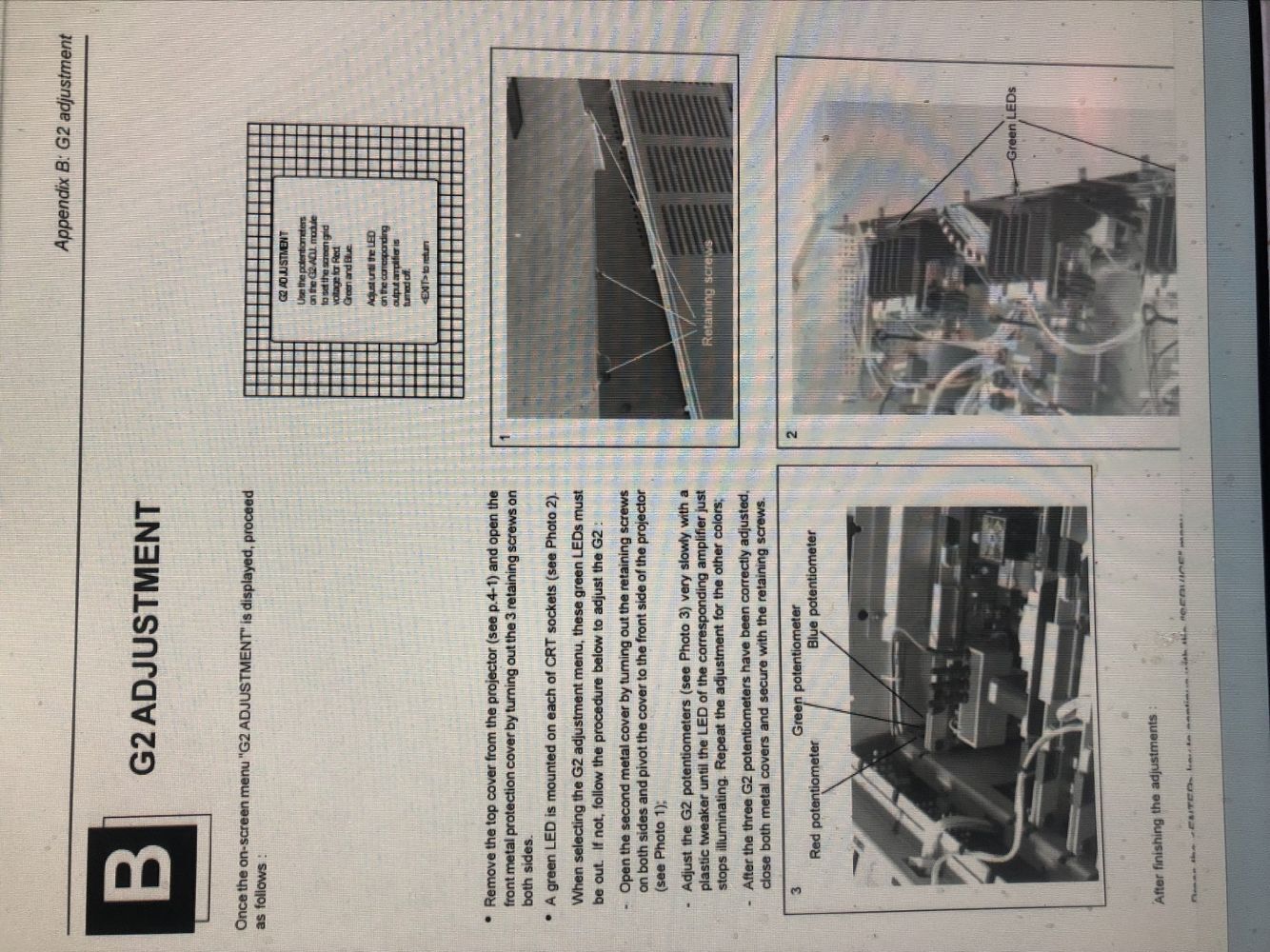

I adjusted G2 as the standard value according to the instructions
| Description: |
|
| Filesize: |
271.45 KB |
| Viewed: |
5006 Time(s) |
|
|
|
| Back to top |
|
|
bluemoonhu
Joined: 16 Feb 2021
Posts: 259
|
| Posted: Sun Jan 23, 2022 2:06 pm Post subject: |
|
|
|
I have not the spare RGB driver board again，I've changed it once。 I also suspect that there is still a problem with the driver board.
|
|
| Back to top |
|
|
bluemoonhu
Joined: 16 Feb 2021
Posts: 259
|
| Posted: Sun Jan 23, 2022 2:09 pm Post subject: |
|
|
|
I didn't install additional the contrast modulation, BCL-link and soft-edge boards 。
|
|
| Back to top |
|
|
bluemoonhu
Joined: 16 Feb 2021
Posts: 259
|
| Posted: Tue Jan 25, 2022 7:05 am Post subject: |
|
|
|
The driver board has problems！I swaped it with a good driver board.
|
|
| Back to top |
|
|
|
|
