| Posted: Mon Jun 22, 2015 12:21 pm Post subject: Finally my Barco CineMax |
|
|
I finally bought the projector of my dreams. It's a Barco Cinemax.
Currently not working. The symptoms are describe below.
- All tubes show a very low light output. The blue tube show a noise and light more intense than others but no menu appear on the screen.
- Red led lit on vertical and rgb input boards.
- No backlight on fixed remote control.
I think that quadrupler and EHT board are good, otherwise tubes would not show anything.
No red led on EHT board.
Here some pictures.
Low light output, blue tube.
G2 board
RGB board
Vertical board.
Any suggestions?
_________________
Domenico (Barco fan!)
|
|
| Back to top |
|
 |
winny
Joined: 09 Oct 2013
Posts: 403
Location: Sweden
TV/Projector: BD808s, BG1209/2
|
| Posted: Mon Jun 22, 2015 1:27 pm Post subject: |
|
|
Have you tried a known good source? Just in case the on-screen generation of menues are broken but not the video chain. Unlikley but should be easy to test.
_________________
| Melifluonze wrote: | | Digital is easy. This is torture, but far more interesting... |
|
|
| Back to top |
|
|
Decibel
Joined: 31 May 2007
Posts: 904
Location: Roma - Italia
|
| Posted: Mon Jun 22, 2015 2:10 pm Post subject: |
|
|
Thank you winny, tomorrow I'll try to connect a source.
Other strange things that I just checked.
- the center back fan no turn. It's normal?
- from R7627195 RGB input board there's a free yellow multiwire. I must connect this cable somewhere?
_________________
Domenico (Barco fan!)
|
|
| Back to top |
|
|
barclay66
Joined: 27 Jun 2011
Posts: 1304
Location: Germany
TV/Projector: Marquee 9500 Ultra
|
| Posted: Mon Jun 22, 2015 2:40 pm Post subject: |
|
|
Hi,
There shouldn't be any cable left unconnected. Check the document and see where it should be plugged in (check the connector numbers)...
Regards,
barclay66
| Description: |
|
Download |
| Filename: |
R7627195_02_Connections.pdf |
| Filesize: |
102.94 KB |
| Downloaded: |
553 Time(s) |
|
|
| Back to top |
|
|
Decibel
Joined: 31 May 2007
Posts: 904
Location: Roma - Italia
|
| Posted: Mon Jun 22, 2015 3:34 pm Post subject: |
|
|
Thank you Barclay.
Connector J7 (from controller) actually is unconnected.
There's a connector on the motherboard between slots of RGB input and Driver boards labeled "to rgb input+switching board".
So definitely the unconnected cable must to connect from motherboard to R7627195.
Do you agree?
Tonight, when I back home I'll try to connect the cable.
_________________
Domenico (Barco fan!)
|
|
| Back to top |
|
|
barclay66
Joined: 27 Jun 2011
Posts: 1304
Location: Germany
TV/Projector: Marquee 9500 Ultra
|
| Posted: Mon Jun 22, 2015 3:57 pm Post subject: |
|
|
Well,
A missing connection at J7 would explain everything about the menus You can't see -> Missing video signal from controller. You better check for more cables being unconnected...
Regards,
barclay66
|
|
| Back to top |
|
|
Hulio
Joined: 15 Apr 2006
Posts: 494
Location: Belgium
|
| Posted: Mon Jun 22, 2015 4:20 pm Post subject: |
|
|
Yepp, J7 should be connected with J129 on the mainboard.
Don't worry about the horizontal deflection fan. It is temperature controlled by a thermistor in the SMPS sub-board. Will start spinning when things are getting hot.
Congrats with the nice machine.
|
|
| Back to top |
|
|
Decibel
Joined: 31 May 2007
Posts: 904
Location: Roma - Italia
|
| Posted: Mon Jun 22, 2015 4:37 pm Post subject: |
|
|
Thank you Hulio 😉
_________________
Domenico (Barco fan!)
|
|
| Back to top |
|
|
ElTopo
Joined: 07 Nov 2006
Posts: 1640
|
| Posted: Mon Jun 22, 2015 5:47 pm Post subject: |
|
|
Hey,
congrats to the most beautiful projector out there
What year ? Runtime ?
cheers
_________________
Barco Cine 9 the one and only
|
|
| Back to top |
|
|
ElTopo
Joined: 07 Nov 2006
Posts: 1640
|
| Posted: Mon Jun 22, 2015 5:52 pm Post subject: |
|
|
Difficult to say what is Bad.
On mine i replaced
Quad + EHT + horizontal + temp sensor board
_________________
Barco Cine 9 the one and only
|
|
| Back to top |
|
|
Decibel
Joined: 31 May 2007
Posts: 904
Location: Roma - Italia
|
| Posted: Mon Jun 22, 2015 6:10 pm Post subject: |
|
|
| ElTopo wrote: | Hey,
congrats to the most beautiful projector out there
What year ? Runtime ?
cheers |
| Description: |
|
| Filesize: |
47.12 KB |
| Viewed: |
10222 Time(s) |
|
_________________
Domenico (Barco fan!)
|
|
| Back to top |
|
|
ElTopo
Joined: 07 Nov 2006
Posts: 1640
|
| Posted: Mon Jun 22, 2015 6:37 pm Post subject: |
|
|
A CineMax in a Reality 909 case ?
_________________
Barco Cine 9 the one and only
|
|
| Back to top |
|
|
Decibel
Joined: 31 May 2007
Posts: 904
Location: Roma - Italia
|
| Posted: Mon Jun 22, 2015 6:41 pm Post subject: |
|
|

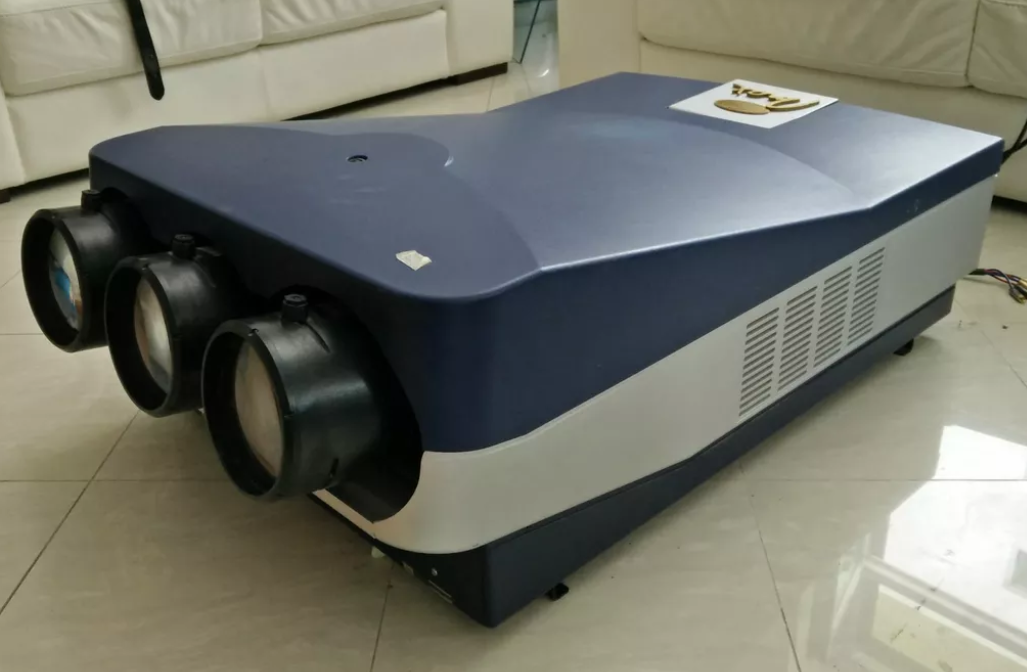

| ElTopo wrote: | | A CineMax in a Reality 909 case ? |
The top cover is blue like Reality.
| Description: |
|
| Filesize: |
497.17 KB |
| Viewed: |
10212 Time(s) |
|
_________________
Domenico (Barco fan!)
|
|
| Back to top |
|
|
Decibel
Joined: 31 May 2007
Posts: 904
Location: Roma - Italia
|
| Posted: Mon Jun 22, 2015 6:42 pm Post subject: |
|
|
Lenses HFQ900
_________________
Domenico (Barco fan!)
|
|
| Back to top |
|
|
winny
Joined: 09 Oct 2013
Posts: 403
Location: Sweden
TV/Projector: BD808s, BG1209/2
|
| Posted: Mon Jun 22, 2015 6:44 pm Post subject: |
|
|
You suck is usually reserved for when you get something for free or too cheap but...
_________________
| Melifluonze wrote: | | Digital is easy. This is torture, but far more interesting... |
|
|
| Back to top |
|
|
ElTopo
Joined: 07 Nov 2006
Posts: 1640
|
| Posted: Mon Jun 22, 2015 7:00 pm Post subject: |
|
|
This need a repainting either to blue again or silver
But first it has to be up again
_________________
Barco Cine 9 the one and only
|
|
| Back to top |
|
|
Decibel
Joined: 31 May 2007
Posts: 904
Location: Roma - Italia
|
| Posted: Mon Jun 22, 2015 7:04 pm Post subject: |
|
|
| ElTopo wrote: | This need a repainting either to blue again or silver
But first it has to be up again |
It will be totally black
_________________
Domenico (Barco fan!)
|
|
| Back to top |
|
|
CasetheCorvetteman
Joined: 09 Nov 2008
Posts: 6326
Location: Australia
|
| Posted: Mon Jun 22, 2015 8:42 pm Post subject: |
|
|
Like this??:
_________________
Barco Cine 9, ,Sony VPL570ES 4K SXRD, 135" OZ Theatre Majestic 16:9 screen, Denon X6700in preamp mode, 2x 7ch Tonewinner amps, 2x Tonewinner 15" subs, 2x 10" subs, 7.2.6...
RUNCO DTV991 LC ( NEC XG 852 LC ) 100" 4:3 screen, H/K AVR 7.1...
|
|
| Back to top |
|
|
Decibel
Joined: 31 May 2007
Posts: 904
Location: Roma - Italia
|
| Posted: Mon Jun 22, 2015 8:50 pm Post subject: |
|
|
| CasetheCorvetteman wrote: | | Like this??: |
YEEEEEEEESSSSSS
_________________
Domenico (Barco fan!)
|
|
| Back to top |
|
|
ElTopo
Joined: 07 Nov 2006
Posts: 1640
|
| Posted: Mon Jun 22, 2015 9:38 pm Post subject: |
|
|
Mine is dark blue glossy.
