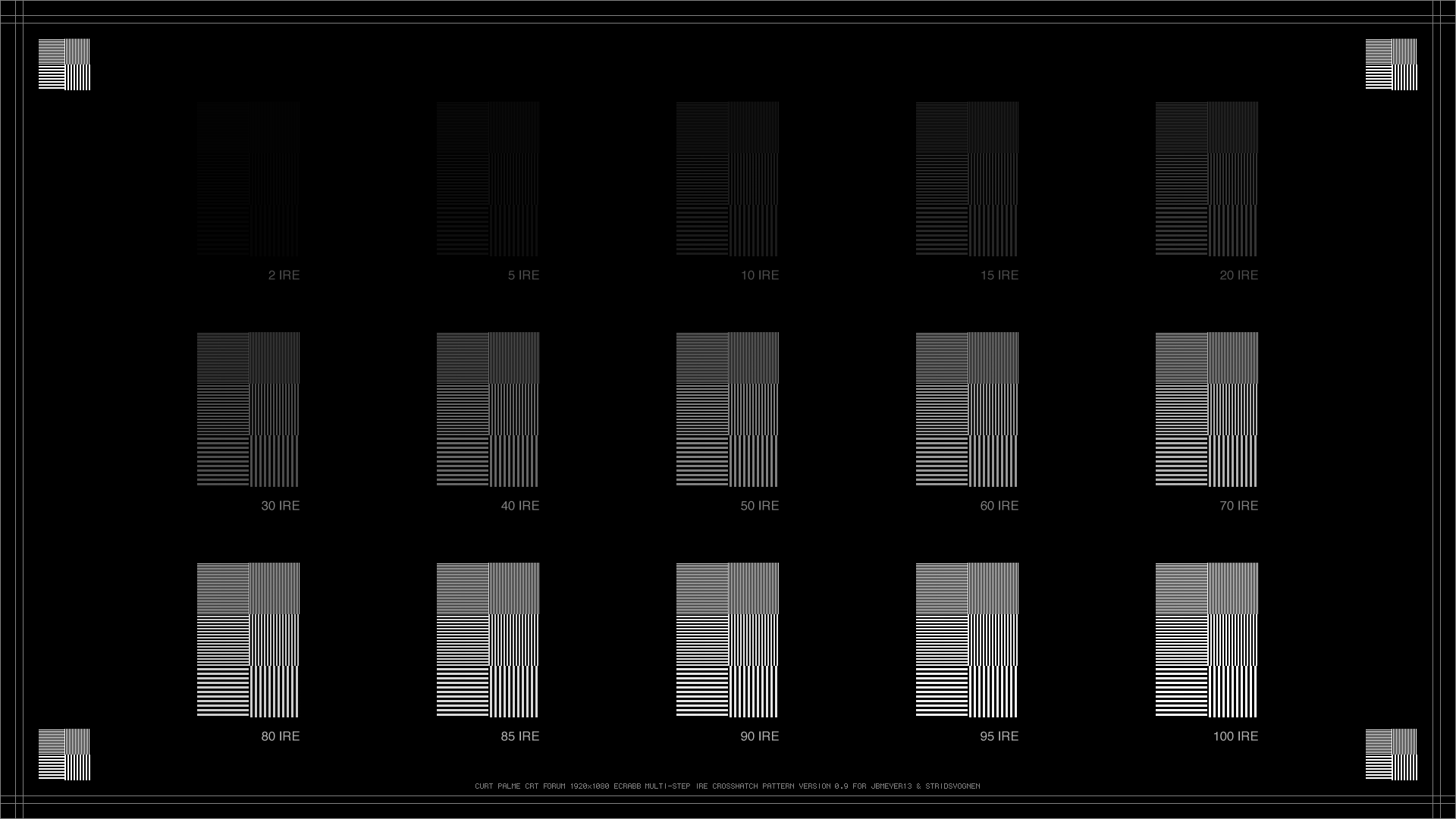

| Posted: Fri Dec 12, 2014 6:50 pm Post subject: Ecrabb modified SMPTE Pattern |
|
|
Steve was kind enough to create a custom pattern per Kurt and I that helps evaluating a video chain's dynamic range. More specifically the ability to evaluate a display devices linearity and resolving power across the grayscale. This is version one of the pattern and there may be subsequent versions in the future.
So extend a big thanks to Ecrabb for his work and hopefully this can be used for all of those fun projector debates
| Description: |
| Replaced jpg w/lossless png. |
|
| Filesize: |
55.16 KB |
| Viewed: |
15319 Time(s) |
|
_________________
Projector: Modded 9501LC ULtra- MP VIM, Vold VNB, ETECH LVPS, Silver VIM Cables, HD10F's & a V1 case!
|
|
| Back to top |
|
 |
redfox001
Joined: 16 Mar 2009
Posts: 2257
Location: The Netherlands
|
| Posted: Fri Dec 12, 2014 7:11 pm Post subject: |
|
|
Great I was searching for that pattern. Thanks!
_________________
701s->runco933->8500ultra->cinemax->9500mp->919 splitpack + cinemax
|
|
| Back to top |
|
|
thewolfman
Joined: 28 Mar 2011
Posts: 1311
Location: Sweden
|
| Posted: Fri Dec 12, 2014 7:27 pm Post subject: |
|
|
|
I'd like to see 1-to-1 test patterns in 2,560 x 1,440 resolution at a 16:9 aspect ratio as well. There are many others and just an example. Why not 2560x720 perhaps.. I'm thinking out of the box really, and not to be confused with me knowing anything.. just curios.
|
|
| Back to top |
|
|
redfox001
Joined: 16 Mar 2009
Posts: 2257
Location: The Netherlands
|
| Posted: Fri Dec 12, 2014 7:37 pm Post subject: |
|
|
In windows you kan use the nokia or nec test program that scales to every resolution your desktop is.
_________________
701s->runco933->8500ultra->cinemax->9500mp->919 splitpack + cinemax
|
|
| Back to top |
|
|
thewolfman
Joined: 28 Mar 2011
Posts: 1311
Location: Sweden
|
|
| Back to top |
|
|
gjaky
Joined: 05 Jun 2010
Posts: 2802
Location: Budapest, Hungary
|
| Posted: Fri Dec 12, 2014 8:18 pm Post subject: Re: Ecrabb modified SMPTE Pattern |
|
|
| jbmeyer13 wrote: | Steve was kind enough to create a custom pattern per Kurt and I that helps evaluating a video chain's dynamic range. More specifically the ability to evaluate a display devices linearity and resolving power across the grayscale. This is version one of the pattern and there may be subsequent versions in the future.
So extend a big thanks to Ecrabb for his work and hopefully this can be used for all of those fun projector debates |
Is it possible to upload this pattern in losless format (eg. .gif or .bmp)?
_________________
projectors in the past : NEC 6-9PG xtra, Electrohome Marquee 6-7500, NEC XG 1351 LC ( with super modified Electrohome VNB neckboard !!!)
current: VDC Marquee 9500LC
The MOD: VNB-DB, VIM-DB
|
|
| Back to top |
|
|
jbmeyer13
Joined: 03 Dec 2010
Posts: 1135
|
| Posted: Fri Dec 12, 2014 8:47 pm Post subject: Re: Ecrabb modified SMPTE Pattern |
|
|
| gjaky wrote: | | jbmeyer13 wrote: | Steve was kind enough to create a custom pattern per Kurt and I that helps evaluating a video chain's dynamic range. More specifically the ability to evaluate a display devices linearity and resolving power across the grayscale. This is version one of the pattern and there may be subsequent versions in the future.
So extend a big thanks to Ecrabb for his work and hopefully this can be used for all of those fun projector debates |
Is it possible to upload this pattern in losless format (eg. .gif or .bmp)? |
The original file was a png. Forum won't allow bmp but I'll try a GIF later. Can either be opened by a stand alone BD player?
_________________
Projector: Modded 9501LC ULtra- MP VIM, Vold VNB, ETECH LVPS, Silver VIM Cables, HD10F's & a V1 case!
|
|
| Back to top |
|
|
gjaky
Joined: 05 Jun 2010
Posts: 2802
Location: Budapest, Hungary
|
| Posted: Fri Dec 12, 2014 8:50 pm Post subject: Re: Ecrabb modified SMPTE Pattern |
|
|
| jbmeyer13 wrote: | | gjaky wrote: | | jbmeyer13 wrote: | Steve was kind enough to create a custom pattern per Kurt and I that helps evaluating a video chain's dynamic range. More specifically the ability to evaluate a display devices linearity and resolving power across the grayscale. This is version one of the pattern and there may be subsequent versions in the future.
So extend a big thanks to Ecrabb for his work and hopefully this can be used for all of those fun projector debates |
Is it possible to upload this pattern in losless format (eg. .gif or .bmp)? |
The original file was a png. Forum won't allow bmp but I'll try a GIF later. Can either be opened by a stand alone BD player? |
PNG is also fine.
_________________
projectors in the past : NEC 6-9PG xtra, Electrohome Marquee 6-7500, NEC XG 1351 LC ( with super modified Electrohome VNB neckboard !!!)
current: VDC Marquee 9500LC
The MOD: VNB-DB, VIM-DB
|
|
| Back to top |
|
|
stridsvognen
Guest
|
| Posted: Fri Dec 12, 2014 9:00 pm Post subject: |
|
|
|
Did anyone try this pattern.?
|
|
| Back to top |
|
|
gjaky
Joined: 05 Jun 2010
Posts: 2802
Location: Budapest, Hungary
|
| Posted: Fri Dec 12, 2014 9:04 pm Post subject: |
|
|
| stridsvognen wrote: | | Did anyone try this pattern.? |
Me, not yet. I am curious how well my XG holding its 30MHz bandwidth at the different drive levels though...
_________________
projectors in the past : NEC 6-9PG xtra, Electrohome Marquee 6-7500, NEC XG 1351 LC ( with super modified Electrohome VNB neckboard !!!)
current: VDC Marquee 9500LC
The MOD: VNB-DB, VIM-DB
|
|
| Back to top |
|
|
ecrabb
Forum Moderator
Joined: 13 Mar 2006
Posts: 15909
Location: Utah
TV/Projector: JVC RS40, Epson 5010
|
| Posted: Fri Dec 12, 2014 9:44 pm Post subject: Re: Ecrabb modified SMPTE Pattern |
|
|
| jbmeyer13 wrote: | | gjaky wrote: | | jbmeyer13 wrote: | Steve was kind enough to create a custom pattern per Kurt and I that helps evaluating a video chain's dynamic range. More specifically the ability to evaluate a display devices linearity and resolving power across the grayscale. This is version one of the pattern and there may be subsequent versions in the future.
So extend a big thanks to Ecrabb for his work and hopefully this can be used for all of those fun projector debates |
Is it possible to upload this pattern in losless format (eg. .gif or .bmp)? |
The original file was a png. Forum won't allow bmp but I'll try a GIF later. Can either be opened by a stand alone BD player? |
GIF is very much lossy. It would actually work fine for this particular pattern, and some others, but it's very bit-depth limited (8-bit).
PNG is lossless compression, it's perfect for stuff like this, and the forum handles PNG just fine.
I updated Justin's original post to include the original PNG instead of the lossy JPG.
Still need to make a few more based on some of Kurt's comments, as well as a scope version for Athanasios.
Enjoy!
SC
|
|
| Back to top |
|
|
jbmeyer13
Joined: 03 Dec 2010
Posts: 1135
|
| Posted: Fri Dec 12, 2014 9:53 pm Post subject: |
|
|
My BD player won't display PNG files. I know Mike Parker has the same issue. Does anyone else have difficulty with that file extension? I was trying to open using a thumb drive so I'm not sure if this would still be a problem if it were burned to a disc.
_________________
Projector: Modded 9501LC ULtra- MP VIM, Vold VNB, ETECH LVPS, Silver VIM Cables, HD10F's & a V1 case!
|
|
| Back to top |
|
|
stridsvognen
Guest
|
| Posted: Fri Dec 12, 2014 11:04 pm Post subject: |
|
|
My OPPO 103D plays it perfect from a thumb drive.
Special thanks to ecrabb for making this pattern, its to me one of the best test patterns to use while testing different transistors, opamps, filters, decupling and what else is in play when testing and evaluating the magic work of Mike Parker.
This pattern can be used to evaluate bandwidth, and at the same time see how it responds to the output/ drive.
It has revealed problems i never noticed using the good old SMPTE pattern ramping up and down contrast.
To back up this pattern i bought a CROMA pattern generator, who is in Justins hands at the moment.
|
|
| Back to top |
|
|
ecrabb
Forum Moderator
Joined: 13 Mar 2006
Posts: 15909
Location: Utah
TV/Projector: JVC RS40, Epson 5010
|
| Posted: Sat Dec 13, 2014 12:46 am Post subject: |
|
|
| jbmeyer13 wrote: | | My BD player won't display PNG files. I know Mike Parker has the same issue. Does anyone else have difficulty with that file extension? I was trying to open using a thumb drive so I'm not sure if this would still be a problem if it were burned to a disc. |
What BD player are you using, Justin? Let's see what it will display (preferably other than JPG), and we can save it in one of those formats. If we can't find a good image format, and it's a problem for others, we could even take this pattern, along with some others, encode them to video streams, and author an actual Blu-ray ISO, and people can burn their own. That won't be something I'll get done in the next week or two, but if it's something people need and would use, I'd be game. I've always kind of wanted to do it.
Heck, if you guys like it and it's useful, maybe I could even get input, build on it, and turn it into a nice little inexpensive product along the lines of the GetGray DVD. I don't think he's ever updated his to HD, and the Spears and VE discs have so much useless crap on them, not enough good stuff, and it seems like every damn one is more difficult to navigate than the last.
Cheers,
SC
|
|
| Back to top |
|
|
garyfritz
Joined: 08 Apr 2006
Posts: 12088
Location: Fort Collins, CO
|
| Posted: Sat Dec 13, 2014 1:13 am Post subject: Re: Ecrabb modified SMPTE Pattern |
|
|
| ecrabb wrote: | | GIF is very much lossy. |
Say what!? Was that a typo?
| Quote: | | It would actually work fine for this particular pattern, and some others, but it's very bit-depth limited (8-bit). |
Ya, the SMPTE pattern is just 10 or so levels of grayscale. GIF should have no trouble with that. Photos not so much, but GIF is great for simple computer graphics.
|
|
| Back to top |
|
|
gjaky
Joined: 05 Jun 2010
Posts: 2802
Location: Budapest, Hungary
|
| Posted: Sat Dec 13, 2014 8:28 am Post subject: Re: Ecrabb modified SMPTE Pattern |
|
|
| garyfritz wrote: | | ecrabb wrote: | | GIF is very much lossy. |
Say what!? Was that a typo?
| Quote: | | It would actually work fine for this particular pattern, and some others, but it's very bit-depth limited (8-bit). |
Ya, the SMPTE pattern is just 10 or so levels of grayscale. GIF should have no trouble with that. Photos not so much, but GIF is great for simple computer graphics. |
I often see that PNG pictures also color compressed as well just like GIF...
_________________
projectors in the past : NEC 6-9PG xtra, Electrohome Marquee 6-7500, NEC XG 1351 LC ( with super modified Electrohome VNB neckboard !!!)
current: VDC Marquee 9500LC
The MOD: VNB-DB, VIM-DB
|
|
| Back to top |
|
|
stridsvognen
Guest
|
| Posted: Sat Dec 13, 2014 11:14 am Post subject: |
|
|
Anyone displayed this pattern on a projector.?
If i get the time ill try it on a standard Marquee tonight.
|
|
| Back to top |
|
|
stridsvognen
Guest
|
| Posted: Sat Dec 13, 2014 5:00 pm Post subject: |
|
|
Just a fast standard setup, ignore the bad calibration.
1080P 60hz 148Mhz
|
|
| Back to top |
|
|
CIR Engineering
Joined: 25 Aug 2008
Posts: 4269
Location: Chicago USA & Berlin Germany
|
| Posted: Sat Dec 13, 2014 6:32 pm Post subject: |
|
|
| ecrabb wrote: | | jbmeyer13 wrote: | | My BD player won't display PNG files. I know Mike Parker has the same issue. Does anyone else have difficulty with that file extension? I was trying to open using a thumb drive so I'm not sure if this would still be a problem if it were burned to a disc. |
What BD player are you using, Justin? Let's see what it will display (preferably other than JPG), and we can save it in one of those formats. If we can't find a good image format, and it's a problem for others, we could even take this pattern, along with some others, encode them to video streams, and author an actual Blu-ray ISO, and people can burn their own. That won't be something I'll get done in the next week or two, but if it's something people need and would use, I'd be game. I've always kind of wanted to do it.
Heck, if you guys like it and it's useful, maybe I could even get input, build on it, and turn it into a nice little inexpensive product along the lines of the GetGray DVD. I don't think he's ever updated his to HD, and the Spears and VE discs have so much useless crap on them, not enough good stuff, and it seems like every damn one is more difficult to navigate than the last.
Cheers,
SC |
Most BD players can use BMP.
Just open the PNG in paint or whatever program you want and save it as BMP. Then use the BMP.
Thanks for the pattern!
craigr
_________________
JETI 1501-HiRes 2nm Spectroradiometer
JETI 1211 Spectroradiometer
Photo Research PR-650 Spectroradiometer
Klein K10-A Colorimeter
Murideo Fresco SIX-G HDMI 2.x Multimedia Generator
Murideo Fresco SIX-A HDMI 2.x Analyzer
Light Illusion ColourSpace XPT Color Calibration Software
Light Illusion LightSpace XPT Pro Version 10.x Color Calibration Software
OMARDRIS JVC Software Patch to use K10-A and Jeti with JVC OEM AutoCal Software!
Sencore CR7000 CRT Tube Analyzer / Rejuvenater
Authorized Dealer for Lumagen & just about everything worth buying
www.CIR-Engineering.com - craigr@cir-engineering.com
Phone: 865-405-6892
|
|
| Back to top |
|
|
jbmeyer13
Joined: 03 Dec 2010
Posts: 1135
|
| Posted: Sat Dec 13, 2014 11:51 pm Post subject: |
|
|
| ecrabb wrote: | | jbmeyer13 wrote: | | My BD player won't display PNG files. I know Mike Parker has the same issue. Does anyone else have difficulty with that file extension? I was trying to open using a thumb drive so I'm not sure if this would still be a problem if it were burned to a disc. |
What BD player are you using, Justin? Let's see what it will display (preferably other than JPG), and we can save it in one of those formats. If we can't find a good image format, and it's a problem for others, we could even take this pattern, along with some others, encode them to video streams, and author an actual Blu-ray ISO, and people can burn their own. That won't be something I'll get done in the next week or two, but if it's something people need and would use, I'd be game. I've always kind of wanted to do it.
Heck, if you guys like it and it's useful, maybe I could even get input, build on it, and turn it into a nice little inexpensive product along the lines of the GetGray DVD. I don't think he's ever updated his to HD, and the Spears and VE discs have so much useless crap on them, not enough good stuff, and it seems like every damn one is more difficult to navigate than the last.
Cheers,
SC |
Hey Steve,
My BD player is a Samsung BD-6900. I'm going to try the bmp version later tonight and will report back.
Yeah a cheap HD disc with "good stuff" on it would be great. This pattern alone is awesome because it helps to evaluate a display in a manner consistent with how we actually view live video.
