I have been working on and off for awhile now on a blanking system. I really liked craigs but it was out of my budget for awhile so I was trying to do it on the cheap. I finally came to the conclusion that the only way to make it work properly was with a balanced counterweight. It works like a charm and my wife loves the way the picture "pops" as she puts it. If you ever need a good stiff lightweight material try FLORALCRAFT foam. This stuff works great. To be honest though once I figured out the counterweight the weight wouldn't of mattered and I probably could have used a board. I have 2 feet of space behind my screen that helped a lot.
_________________
We are ALL job creators !
|
|
| Back to top |
|
 |
CIR Engineering
Joined: 25 Aug 2008
Posts: 4269
Location: Chicago USA & Berlin Germany
|
| Posted: Thu Jun 12, 2014 6:05 pm Post subject: |
|
|
Post some pics Jeff.
And it's "masking" not "blanking." Blanking is done electronically in the projector.
craigr
_________________
JETI 1501-HiRes 2nm Spectroradiometer
JETI 1211 Spectroradiometer
Photo Research PR-650 Spectroradiometer
Klein K10-A Colorimeter
Murideo Fresco SIX-G HDMI 2.x Multimedia Generator
Murideo Fresco SIX-A HDMI 2.x Analyzer
Light Illusion ColourSpace XPT Color Calibration Software
Light Illusion LightSpace XPT Pro Version 10.x Color Calibration Software
OMARDRIS JVC Software Patch to use K10-A and Jeti with JVC OEM AutoCal Software!
Sencore CR7000 CRT Tube Analyzer / Rejuvenater
Authorized Dealer for Lumagen & just about everything worth buying
www.CIR-Engineering.com - craigr@cir-engineering.com
Phone: 865-405-6892
|
|
| Back to top |
|
|
jeffslife
Joined: 17 Apr 2010
Posts: 4190
Location: ohio usa
|
| Posted: Thu Jun 12, 2014 6:33 pm Post subject: |
|
|
I know its masking. Sorry I blanked. There really is not much to see, 8 pulleys, 4 cords, 2 plastic jugs with a quart of water in them. I started with a gallon of water and just kept pouring it out until it was balanced. I have to manually pull them up and down kinda like a blind but it works good.
_________________
We are ALL job creators !
|
|
| Back to top |
|
|
Spanky Ham
Joined: 22 Mar 2006
Posts: 5643
Location: Comedy Central
|
| Posted: Fri Jun 13, 2014 1:58 am Post subject: |
|
|
No we need pics.
It is always interesting to see a different solution to a problem.
|
|
| Back to top |
|
|
jeffslife
Joined: 17 Apr 2010
Posts: 4190
Location: ohio usa
|
| Posted: Fri Jun 13, 2014 4:54 am Post subject: |
|
|
Ok I will work on that, seems kinda pointless but OK. A drawing would show it better.
_________________
We are ALL job creators !
|
|
| Back to top |
|
|
jbmeyer13
Joined: 03 Dec 2010
Posts: 1135
|
| Posted: Fri Jun 13, 2014 3:22 pm Post subject: |
|
|
| CIR Engineering wrote: | Post some pics Jeff.
And it's "masking" not "blanking." Blanking is done electronically in the projector.
craigr |
Craig's snappy response would confirm Spanky's notion that he's got a script running that notifies him of when Jeff posts. Craig needs to add "Guardian to Jeff" on his signature line
_________________
Projector: Modded 9501LC ULtra- MP VIM, Vold VNB, ETECH LVPS, Silver VIM Cables, HD10F's & a V1 case!
|
|
| Back to top |
|
|
ecrabb
Forum Moderator
Joined: 13 Mar 2006
Posts: 15909
Location: Utah
TV/Projector: JVC RS40, Epson 5010
|
| Posted: Fri Jun 13, 2014 3:30 pm Post subject: |
|
|
| jbmeyer13 wrote: | | Craig's snappy response would confirm Spanky's notion that he's got a script running that notifies him of when Jeff posts. Craig needs to add "Guardian to Jeff" on his signature line |
He's just looking' out for his customers, yo!
I'd like to see photos, too. A relatively inexpensive masking system is definitely interesting. I know Craig did something similar. I don't have room in this house, but I want to do a scope screen in the next house, and masking will definitely be part of it. Side masking is probably a little trickier, though.
Regardless, I want to do motorized. I can handle the electronic/control/automation part of it - that part's easy for me. It's the mechanization that will be tricky, so I want to see all the DIY masking I can.
SC
|
|
| Back to top |
|
|
Spanky Ham
Joined: 22 Mar 2006
Posts: 5643
Location: Comedy Central
|
| Posted: Fri Jun 13, 2014 3:44 pm Post subject: |
|
|
| ecrabb wrote: | | jbmeyer13 wrote: | | Craig's snappy response would confirm Spanky's notion that he's got a script running that notifies him of when Jeff posts. Craig needs to add "Guardian to Jeff" on his signature line |
He's just looking' out for his customers, yo!
SC |
LOL that is true.
I was laughing last night thinking about it. I wonder if the robot from Lost in Space comes on Craig's screen with "Danger, Danger Craig Rounds. Dr. Smith (I mean Jeff) is messing with his CIR90!"
|
|
| Back to top |
|
|
jbmeyer13
Joined: 03 Dec 2010
Posts: 1135
|
| Posted: Fri Jun 13, 2014 3:47 pm Post subject: |
|
|
| ecrabb wrote: | | jbmeyer13 wrote: | | Craig's snappy response would confirm Spanky's notion that he's got a script running that notifies him of when Jeff posts. Craig needs to add "Guardian to Jeff" on his signature line |
He's just looking' out for his customers, yo!
I'd like to see photos, too. A relatively inexpensive masking system is definitely interesting. I know Craig did something similar. I don't have room in this house, but I want to do a scope screen in the next house, and masking will definitely be part of it. Side masking is probably a little trickier, though.
Regardless, I want to do motorized. I can handle the electronic/control/automation part of it - that part's easy for me. It's the mechanization that will be tricky, so I want to see all the DIY masking I can.
SC |
Craig is the one who turned me onto AVOutlet.com and they (Ken) are awesome. Helped me identify the exact Somfy parts I needed for my Stewart Electrimask rehab project last Summer. Most anything you would need part wise (motors, rollers, remotes, etc.) can be found there. The only exception is the masking material itself.
I found that the part prices for motors, rollers, etc. can vary considerably even though the differences appear on the surface to be relatively minimal. I'd reach out to Ken as I'm sure he could help you pick the right parts for such a project.
Once you have masking, you'll never be able to go back to normal viewing
_________________
Projector: Modded 9501LC ULtra- MP VIM, Vold VNB, ETECH LVPS, Silver VIM Cables, HD10F's & a V1 case!
|
|
| Back to top |
|
|
jeffslife
Joined: 17 Apr 2010
Posts: 4190
Location: ohio usa
|
| Posted: Fri Jun 13, 2014 6:15 pm Post subject: |
|
|
Wow, I kinda felt that craig was poking fun at me for mixing up blanking and masking. I know he knew what I meant, not sure if everyone else did though, its cleared up now for sure. I took some pics but there is really nothing to see, its all covered in black velvet in front and you cant see anything, in back its just 4 small pulleys hanging on S hooks from the ceiling with plastic jugs with some water in them hanging from parachute cord.
_________________
We are ALL job creators !
|
|
| Back to top |
|
|
jeffslife
Joined: 17 Apr 2010
Posts: 4190
Location: ohio usa
|
| Posted: Fri Jun 13, 2014 8:41 pm Post subject: |
|
|

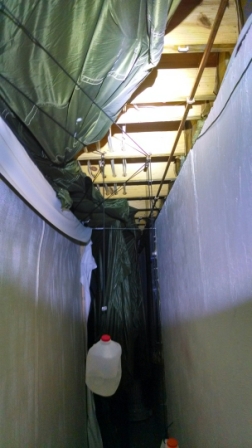

I hope you can see this.
| Description: |
|
| Filesize: |
94.39 KB |
| Viewed: |
15104 Time(s) |
|
_________________
We are ALL job creators !
|
|
| Back to top |
|
|
Spanky Ham
Joined: 22 Mar 2006
Posts: 5643
Location: Comedy Central
|
| Posted: Sat Jun 14, 2014 4:53 pm Post subject: |
|
|
Jeff,
We were just having some fun.
In the pic, is the back of the screen on the left? Can you post a larger or higher res photo.
|
|
| Back to top |
|
|
CIR Engineering
Joined: 25 Aug 2008
Posts: 4269
Location: Chicago USA & Berlin Germany
|
| Posted: Sat Jun 14, 2014 11:48 pm Post subject: |
|
|
Hey Jeff,
Just popped in for a second after we've been all day at a world cup party, so I've had a few...
Want to say that I wasn't even poking fun, just correcting an obvious typo. I know I can be kind of blunt sometimes which may come off offensive, but I don't mean it that way. I generally just try to be concise. I would work on it some, if I cared anymore
But seriously I am interested in what you created. I always have clients looking for DYI answers for masking and every idea helps me to give them options. If you think a drawing would provide more detail I would like to see it.
Thanks,
craigr
_________________
JETI 1501-HiRes 2nm Spectroradiometer
JETI 1211 Spectroradiometer
Photo Research PR-650 Spectroradiometer
Klein K10-A Colorimeter
Murideo Fresco SIX-G HDMI 2.x Multimedia Generator
Murideo Fresco SIX-A HDMI 2.x Analyzer
Light Illusion ColourSpace XPT Color Calibration Software
Light Illusion LightSpace XPT Pro Version 10.x Color Calibration Software
OMARDRIS JVC Software Patch to use K10-A and Jeti with JVC OEM AutoCal Software!
Sencore CR7000 CRT Tube Analyzer / Rejuvenater
Authorized Dealer for Lumagen & just about everything worth buying
www.CIR-Engineering.com - craigr@cir-engineering.com
Phone: 865-405-6892
|
|
| Back to top |
|
|
jeffslife
Joined: 17 Apr 2010
Posts: 4190
Location: ohio usa
|
| Posted: Mon Jun 16, 2014 1:25 pm Post subject: |
|
|
Spanky, Yes the back of the screen is on the left. I tried to post a better pic but I don't have the software to compress it correctly. I will attempt to make a drawing and post it. It took a week to finally come up with one inch floralcraft foam, it is sold at Jo Ann Fabrics, it is light and rigid. Once I figured out to use a counterweight though the weight really wouldn't have been an issue. My screen is homemade. First it was the painted wall on the right side of the pic. Then it was a canvas stretched over a 2X4 frame and painted with screenpaint. Finally I put screen material I bought on ebay over the top of that. It is a huge screen masked off with black velvet. If I had known I would have made it much smaller. But right now the extra size made it easier to install the masking, 2X4's are easy to work with. Any mistakes are easily hid by black velvet. The room behind the screen is what allows it to work though, so easy to adjust the weight to get the balance correct.
