Hi,
i want to connect the BG808 to the RCU800 directly with a wire. In the manual Barco wrote that the socket in the CRT and remote is 3.5mm. On the CRT it is 3.5mm, but on the remote it is only 2.5mm.
Is this the wrong remote for the CRT?
I dont want to destroy something, so i dint connect it right know, but the adapter cable is still soldered.
For testing if there is an output on the 2.5mm socket of the remote i connect an osziloskope to this output. But nothing happens, no signal at all. Is the remote defective? Or is it maybe an open-collector output?
Here are 2 pictures of the remote attached, maybe you can see if this is the right remote.
thanks for the help!
Best regards
Chris

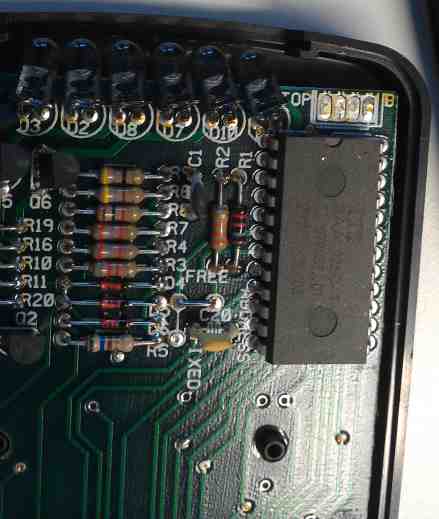

| Description: |
| Barco RCU 800 - controller IC |
|
| Filesize: |
21.96 KB |
| Viewed: |
2664 Time(s) |
|

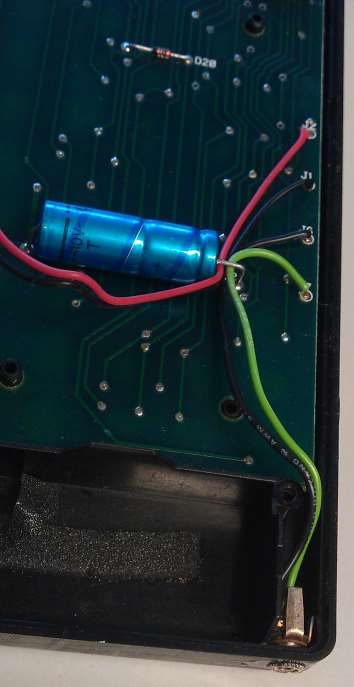

| Description: |
