| Posted: Wed Sep 25, 2013 5:59 pm Post subject: Swapping RGB driver board 909/Cine9 |
|
|
Hi,
is it just plug 'n play or anything complicated to be aware of ?
thanks
ElTopo
_________________
Barco Cine 9 the one and only
|
|
| Back to top |
|
 |
Hulio
Joined: 15 Apr 2006
Posts: 494
Location: Belgium
|
| Posted: Thu Sep 26, 2013 8:57 am Post subject: |
|
|
Cine 9, BR909, BR908 (splitpack F, L or whatever-shaped chassis you want) uses the same R7627205 RGB driver board.
They are plug and play and no service adjustments needed on this board, but attention must be payed on jumper J5.
Because this board was designed for BR909 in the first place, J5 is used for SEMU connection. When SEMU is not
used (recommended), pins 1+2; 3+4 and 5+6 must be shortened. Cine Max and Cine 9 both have a jumper on this place,
if you take a closer look. Easy to do from a old 8 wire connector.
|
|
| Back to top |
|
|
Hulio
Joined: 15 Apr 2006
Posts: 494
Location: Belgium
|
| Posted: Thu Sep 26, 2013 9:39 am Post subject: |
|
|

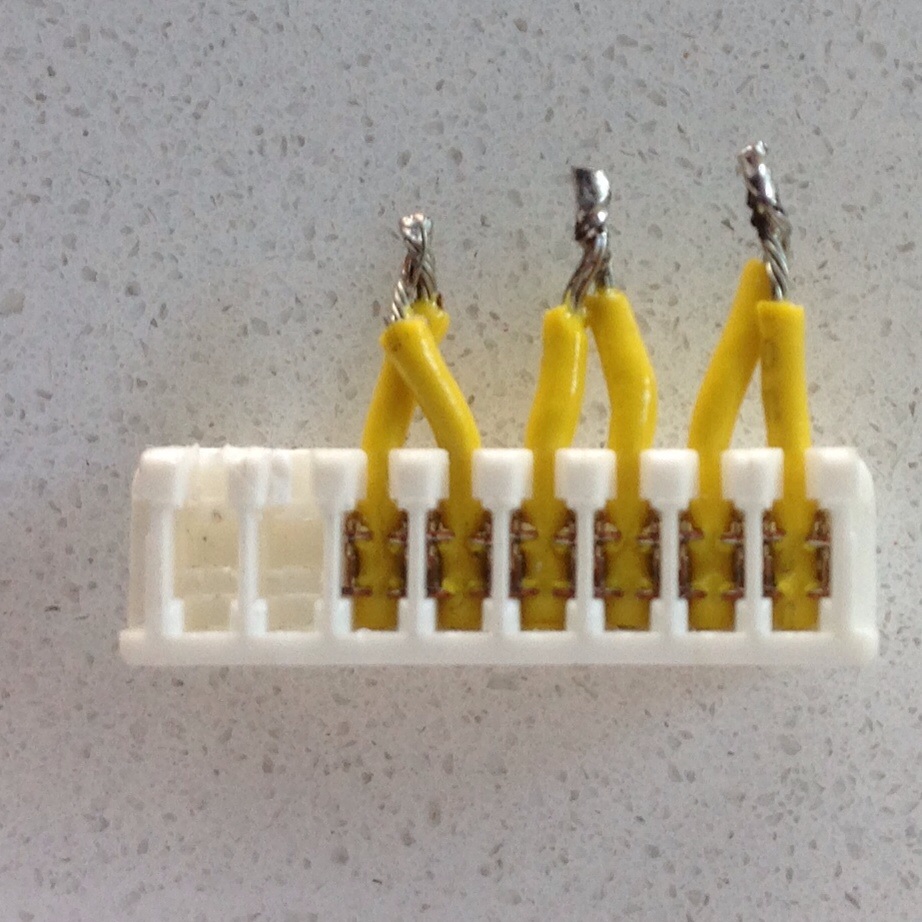

Like this one:
