| Posted: Sat Sep 22, 2012 8:03 pm Post subject: Differnent Focus Boards on Marquee |
|
|

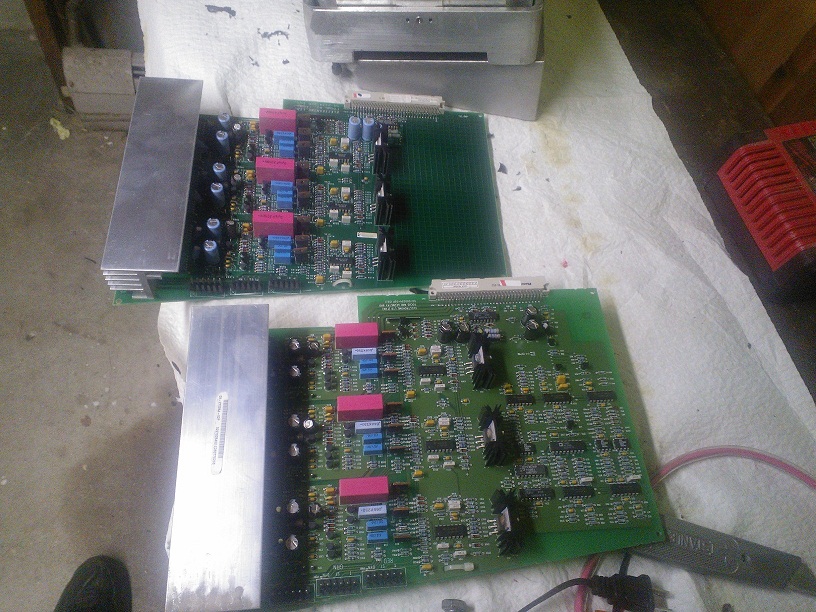

I have two Marquee PJs, a Vidikron Vision One that I use in the theater and a 9500LC that I use for parts. The Vidikron has a focus board that is full of components. The focus board from the 9500LC is half empty. I attach a picture. Is there some feature on the Vidikron focus board that is not on the other one? Or are they just two different versions of the same thing?
| Description: |
|
| Filesize: |
243.39 KB |
| Viewed: |
2449 Time(s) |
|
|
|
| Back to top |
|
 |
Curt Palme
CRT Tech
Joined: 08 Mar 2006
Posts: 24396
Location: Langley, BC
TV/Projector: All of them!
|
| Posted: Sat Sep 22, 2012 8:05 pm Post subject: |
|
|
|
The bottom one is out of an Ultra. Some Vision 1s were Ultras, some were not, depending on the year it was made. The Ultra is definitely more valuable than the non, and don't waste an Ultra board in a non Ultra set..
|
|
| Back to top |
|
|
Dertah
Joined: 11 Sep 2010
Posts: 48
Location: Connecticut
|
| Posted: Sat Sep 22, 2012 8:17 pm Post subject: |
|
|
|
Thanks Curt - you sold me the Vidikron and the Ultra board was in it so I guess that means it is an Ultra Vidikron. Are these boards repairable? It works but I can't get the blue really sharp. I was going to try the focus board from the other machine but stopped when I saw it was different.
|
|
| Back to top |
|
|
Tim in Phoenix
Joined: 21 Oct 2006
Posts: 4409
Location: Phoenix
|
| Posted: Sat Sep 22, 2012 9:33 pm Post subject: |
|
|
Guys
The additional components run maybe six different geometry functions added new in the Ultra, including Top Key, H Bow and V Skew. Those signals are summed and injected into the Convergence Amp on the rear heat sink, that is the purpose of the flywires and 680r resistors tacked onto the board. One needs an Ultra top motherboard, v4.0 or higher firmware, and the modified Convergence Amp, DPB and Vertical Amp for full effect.
.
|
|
| Back to top |
|
|
barclay66
Joined: 27 Jun 2011
Posts: 1304
Location: Germany
TV/Projector: Marquee 9500 Ultra
|
| Posted: Sun Sep 23, 2012 10:31 am Post subject: |
|
|
| Dertah wrote: | | Thanks Curt - you sold me the Vidikron and the Ultra board was in it so I guess that means it is an Ultra Vidikron. Are these boards repairable? It works but I can't get the blue really sharp. I was going to try the focus board from the other machine but stopped when I saw it was different. |
Hi,
If You just want to test if Your focus board is bad on the blue channel then You can put in the non-Ultra board and see if focus on blue works as supposed. Although the functionality mentioned by Tim won't be available while using the non-Ultra board nothing will be damaged. The most prominent difference will be that the picture geometry will be off somewhat and that the focus settings need to be adjusted (I have tried that several times when checking newly acquired boards). You better write down the old settings before changing them. Or You could use the Marquee Librarian software for storing and recalling them later. And yes, these boards are repairable. You could send Yours to Curt and use the other one in the meantime...
Regards,
barclay66
|
|
| Back to top |
|
|
Curt Palme
CRT Tech
Joined: 08 Mar 2006
Posts: 24396
Location: Langley, BC
TV/Projector: All of them!
|
| Posted: Sun Sep 23, 2012 12:59 pm Post subject: |
|
|
|
What Barclay said. Yes I can fix the board, but use the non Ultra board to make sure that's the problem first.
|
|
