| Posted: Wed Sep 12, 2012 11:07 am Post subject: Barco Cine9 issue with HV? SOLVED |
|
|
Hi all,
i need some help on a Cine9.
All led's are green, tubes do not light up and projector shuts down after approx. 1 minute after power up.
Could this be a HV problem? Quad / EHT / Splitter ?
thanks for your help
ElTopo
_________________
Barco Cine 9 the one and only
Last edited by ElTopo on Fri Jul 26, 2013 10:37 am; edited 1 time in total
|
|
| Back to top |
|
 |
Curt Palme
CRT Tech
Joined: 08 Mar 2006
Posts: 24396
Location: Langley, BC
TV/Projector: All of them!
|
| Posted: Wed Sep 12, 2012 12:55 pm Post subject: |
|
|
|
No this has nothing to do with the EHT board. When you say the set turns off, do you mean it shuts off completely and the fans stop spinning?
|
|
| Back to top |
|
|
ElTopo
Joined: 07 Nov 2006
Posts: 1640
|
| Posted: Wed Sep 12, 2012 1:21 pm Post subject: |
|
|
Hi Curt,
thx for reply.
Fans are running. After shutdown you can start again and
the same happens again.
ElTopo
_________________
Barco Cine 9 the one and only
|
|
| Back to top |
|
|
Curt Palme
CRT Tech
Joined: 08 Mar 2006
Posts: 24396
Location: Langley, BC
TV/Projector: All of them!
|
| Posted: Wed Sep 12, 2012 1:35 pm Post subject: |
|
|
|
OK, I don't understand. You say that the tubes never light up, but the set shuts down after a minute, yet the fans stay running. What exactly shuts down after a minute?
|
|
| Back to top |
|
|
ElTopo
Joined: 07 Nov 2006
Posts: 1640
|
| Posted: Wed Sep 12, 2012 2:17 pm Post subject: |
|
|
Set goes into standby after it was powered up
approx 1 minute. Tubes do not come up but fans are running.
Could this be a controller board issue or would the set never come up if it is a controller prob?
thx
ElTopo
_________________
Barco Cine 9 the one and only
|
|
| Back to top |
|
|
Curt Palme
CRT Tech
Joined: 08 Mar 2006
Posts: 24396
Location: Langley, BC
TV/Projector: All of them!
|
| Posted: Wed Sep 12, 2012 4:37 pm Post subject: |
|
|
Sorry, I still don't understand. If the fans keep running, how does it go into standby?
Standby mode to me is when the red light on the back is on, but the fans are not spinning.
|
|
| Back to top |
|
|
mp20748
Joined: 12 Sep 2006
Posts: 5689
Location: Maryland
TV/Projector: 9500LC Ultra / Super 02 and 03 VIM
|
| Posted: Wed Sep 12, 2012 11:49 pm Post subject: |
|
|
| ElTopo wrote: | Set goes into standby after it was powered up
approx 1 minute. Tubes do not come up but fans are running.
Could this be a controller board issue or would the set never come up if it is a controller prob?
thx
ElTopo |
Yep, most likely the control board. It's shutting the set down, while at the same time, it allows the set to stay on long enogh for you to read the "Diagnostics" in the menu. That menu should show you if one or more of the voltage are outside of the tolerance for normal operation.
If those voltages are within range, then the controller could be defective.
|
|
| Back to top |
|
|
Curt Palme
CRT Tech
Joined: 08 Mar 2006
Posts: 24396
Location: Langley, BC
TV/Projector: All of them!
|
| Posted: Thu Sep 13, 2012 3:39 am Post subject: |
|
|
Mike could well be right, although I've had other boards cause shutdown as well.
The only way to know for sure is to put your boards in a known working set, or put good boards into your set. I have a test chassis here if you want to send me some.
|
|
| Back to top |
|
|
ElTopo
Joined: 07 Nov 2006
Posts: 1640
|
| Posted: Thu Sep 13, 2012 7:25 am Post subject: |
|
|
Thx.
Can anything go wrong when i put the boards in a 909 reality set?
_________________
Barco Cine 9 the one and only
|
|
| Back to top |
|
|
ElTopo
Joined: 07 Nov 2006
Posts: 1640
|
| Posted: Thu Sep 13, 2012 8:19 am Post subject: |
|
|
Would it be an idea to upgrade the controller board to the latest firmware (if possible) ?
Firmware is related to the controller board and/or year ? Or yould you upgrade a 2001 board to a 2003 firmware version?
What i have here is firmware version:
2.00 (year 2001)
2.13 (year 2002)
2.21 (year 2002)
2.30 (year 2003)
thanks
ElTopo
_________________
Barco Cine 9 the one and only
|
|
| Back to top |
|
|
mp20748
Joined: 12 Sep 2006
Posts: 5689
Location: Maryland
TV/Projector: 9500LC Ultra / Super 02 and 03 VIM
|
| Posted: Thu Sep 13, 2012 9:42 am Post subject: |
|
|
| ElTopo wrote: | Thx.
Can anything go wrong when i put the boards in a 909 reality set? |
No, it's the same board.
|
|
| Back to top |
|
|
mp20748
Joined: 12 Sep 2006
Posts: 5689
Location: Maryland
TV/Projector: 9500LC Ultra / Super 02 and 03 VIM
|
| Posted: Thu Sep 13, 2012 9:45 am Post subject: |
|
|
| ElTopo wrote: | Would it be an idea to upgrade the controller board to the latest firmware (if possible) ?
Firmware is related to the controller board and/or year ? Or yould you upgrade a 2001 board to a 2003 firmware version?
What i have here is firmware version:
2.00 (year 2001)
2.13 (year 2002)
2.21 (year 2002)
2.30 (year 2003)
thanks
ElTopo |
The firmware upgrade just may solve the problem, especially if you are using anything below 2.21
|
|
| Back to top |
|
|
ElTopo
Joined: 07 Nov 2006
Posts: 1640
|
| Posted: Thu Sep 13, 2012 11:00 am Post subject: |
|
|
Thanks again for your quick reply !
The firmware is only controller board related ? All other boards aren't firmware updateable ?
ElTopo
_________________
Barco Cine 9 the one and only
|
|
| Back to top |
|
|
Curt Palme
CRT Tech
Joined: 08 Mar 2006
Posts: 24396
Location: Langley, BC
TV/Projector: All of them!
|
| Posted: Thu Sep 13, 2012 12:59 pm Post subject: |
|
|
|
Try updating the firmware, and no, it won't damage a working 909.
|
|
| Back to top |
|
|
Decibel
Joined: 31 May 2007
Posts: 904
Location: Roma - Italia
|
| Posted: Thu Sep 13, 2012 1:23 pm Post subject: |
|
|
I have a file *.bin with firmware named "2.21" for Cine9.
It's the same of 909's?
Another question: in 909 the firmware flash must be done with specific software that use the serial port.
But projector must be fully working, I think.
_________________
Domenico (Barco fan!)
|
|
| Back to top |
|
|
Curt Palme
CRT Tech
Joined: 08 Mar 2006
Posts: 24396
Location: Langley, BC
TV/Projector: All of them!
|
| Posted: Thu Sep 13, 2012 2:10 pm Post subject: |
|
|
If the RS232 input works, then you can flash the software if the software has glitched. You do risk killing the board completely if the firmware upload glitches, but the board is no good right now anyway..... we assume.
Really, before you flash firmware, I'd put the board into another set to confirm that it's bad. 909 controller boards are harder to find than Sony G90 Ya boards, and Barco wants $3500 each, so you better be darn sure that it's the problem!
|
|
| Back to top |
|
|
Decibel
Joined: 31 May 2007
Posts: 904
Location: Roma - Italia
|
| Posted: Thu Sep 13, 2012 3:14 pm Post subject: |
|
|
One option could be the direct programming of the chip but I think that the firmware is contained in two EPROMs.
Someone can confirm?
_________________
Domenico (Barco fan!)
|
|
| Back to top |
|
|
ElTopo
Joined: 07 Nov 2006
Posts: 1640
|
| Posted: Tue Sep 18, 2012 4:04 pm Post subject: |
|
|
Hi,

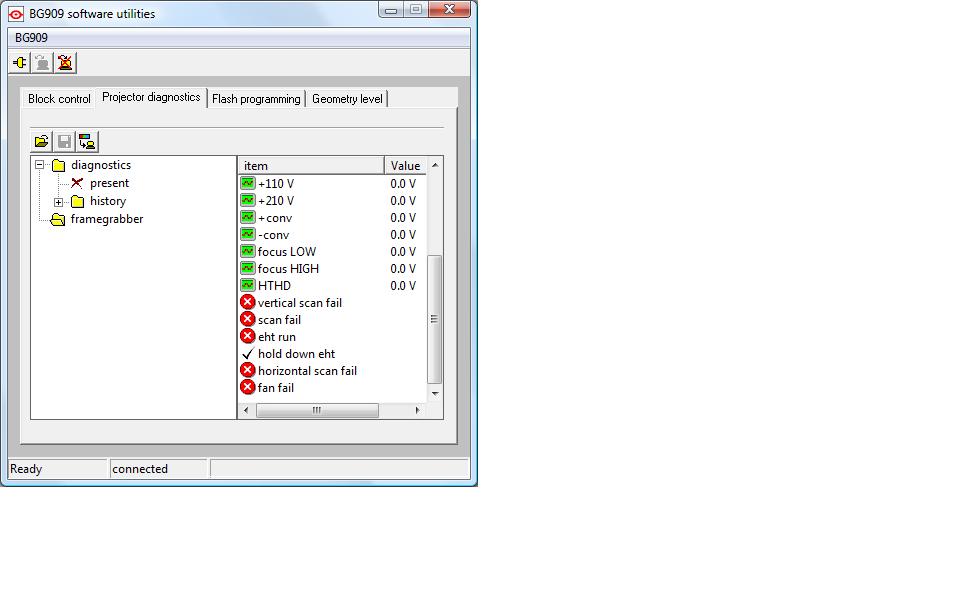

i run a test and the tool gave me that output.
What does this mean exactly ? I also saw a the red LED on the vertical board (D614 lighting up for a second).
Unfortunately i don't get any voltages out of the utility.
thanks for input
ElTopo
| Description: |
|
| Filesize: |
46.44 KB |
| Viewed: |
11759 Time(s) |
|
_________________
Barco Cine 9 the one and only
|
|
| Back to top |
|
|
ElTopo
Joined: 07 Nov 2006
Posts: 1640
|
| Posted: Wed Sep 19, 2012 12:08 pm Post subject: |
|
|
Update:

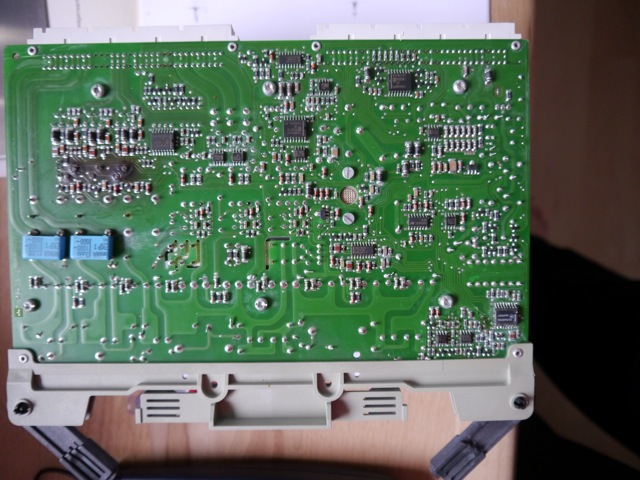

I checked the boards and the horizontal deflection board has some burn on the back.
If i swap a working one in the Cine9 could this be damaged too ?
I think the burn must happen due to the fan fail in the middle because the board get very hot in operation ?!
Board is: R763140
thanks
ElTopo
| Description: |
|
| Filesize: |
114.1 KB |
| Viewed: |
11707 Time(s) |
|
_________________
Barco Cine 9 the one and only
|
|
| Back to top |
|
|
ElTopo
Joined: 07 Nov 2006
Posts: 1640
|
| Posted: Wed Sep 19, 2012 12:10 pm Post subject: |
|
|
Does anyone has a horizontal spare board for sale ?
ElTopo
_________________
Barco Cine 9 the one and only
|
|
| Back to top |
|
|
|
|
