| Posted: Wed Nov 02, 2011 1:25 am Post subject: Barco 1208 with very off-center blue raster |
|
|
On my Barco 1208, the blue raster is very far to the right, when it is configured for table mount. In ceiling configuration it is still off but at least possible to converge, applying excessive toe-in and tweaking with the raster shift. But in table configuration there is no raster shift that doesn't cause either the blue or the red+green rasters to partially miss the phosphor.
Any ideas what this can be?
|
|
| Back to top |
|
 |
Ile
Joined: 09 Mar 2006
Posts: 1491
Location: Jyväskylä, Finland
|
|
| Back to top |
|
|
Mumiemonstret
Joined: 02 Nov 2011
Posts: 4
Location: Stockholm, Sweden
|
| Posted: Wed Nov 02, 2011 11:43 pm Post subject: |
|
|
Thank you for all the suggestions! The raster doesn't move the slightest when changing electrical focus and I doubt that the tube has been replaced. The projector only had some 1000 hrs on it when I acquired it.
So afraid of ruining a good factory setup I wanted to skip to part 2 of your guide. Unfortunately, my unit doesn't look like the 808 you are linking to. As another source I have the service manual for the 1209 - since I am an electronics engineer it has given me lots of insights but the deflection board is obviously different here too. More specifically, I can't find the R/B H shift pots on my board.

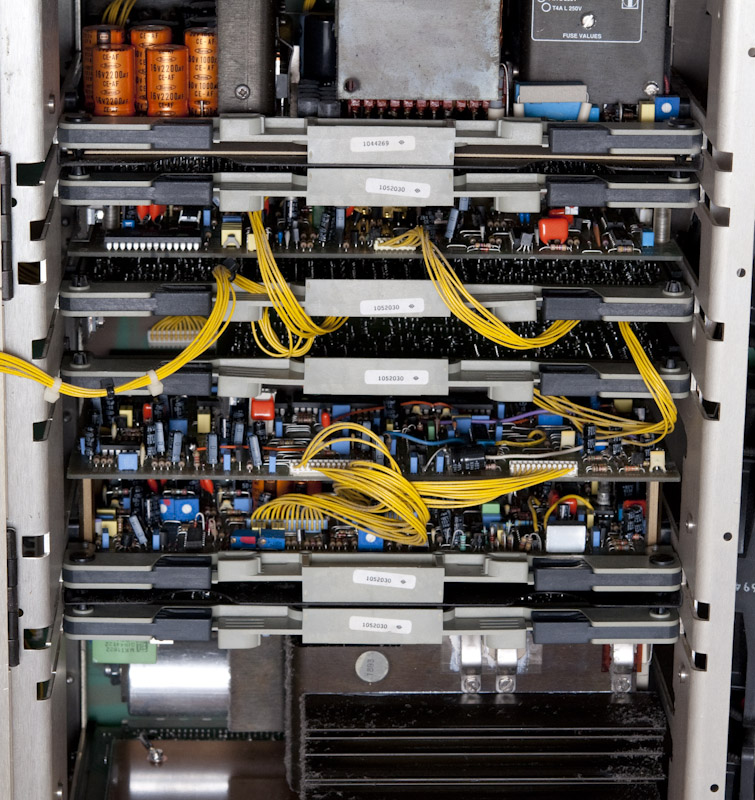

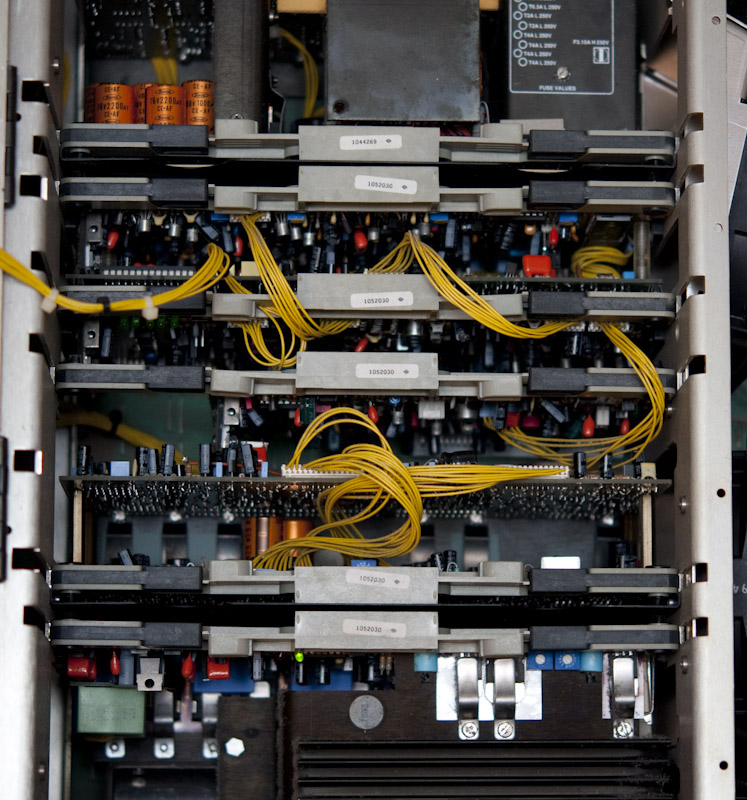

I have attached pictures of my set of boards seen from two angles. Since they aren't labelled (how can that be, really?) I don't want to presuppose which one is the H deflection board.
| Description: |
|
| Filesize: |
260.74 KB |
| Viewed: |
4582 Time(s) |
|
| Description: |
|
| Filesize: |
293.4 KB |
| Viewed: |
4582 Time(s) |
|
|
|
| Back to top |
|
|
zGman
Joined: 22 May 2006
Posts: 599
|
| Posted: Thu Nov 03, 2011 1:06 am Post subject: |
|
|
H-shift, on focus board.
G
|
|
| Back to top |
|
|
Mumiemonstret
Joined: 02 Nov 2011
Posts: 4
Location: Stockholm, Sweden
|
| Posted: Fri Nov 04, 2011 11:04 am Post subject: |
|
|
| zGman wrote: | H-shift, on focus board.
G |
Sorry, that doesn't help me. I can't identify neither the focus board nor the H-shift pot in my machine. I have tried turning every pot that is accessible when the boards are inserted, and the only one I have been able to identify is the V size pot.
|
|
| Back to top |
|
|
Ile
Joined: 09 Mar 2006
Posts: 1491
Location: Jyväskylä, Finland
|
| Posted: Fri Nov 04, 2011 2:15 pm Post subject: |
|
|
| Mumiemonstret wrote: | | I have tried turning every pot that is accessible when the boards are inserted, and the only one I have been able to identify is the V size pot. |
That is not very good way of doing adjustments, that could cause serious problems. Hope you doesn't turn +17V pot from smps. Check that it is 17.5V...

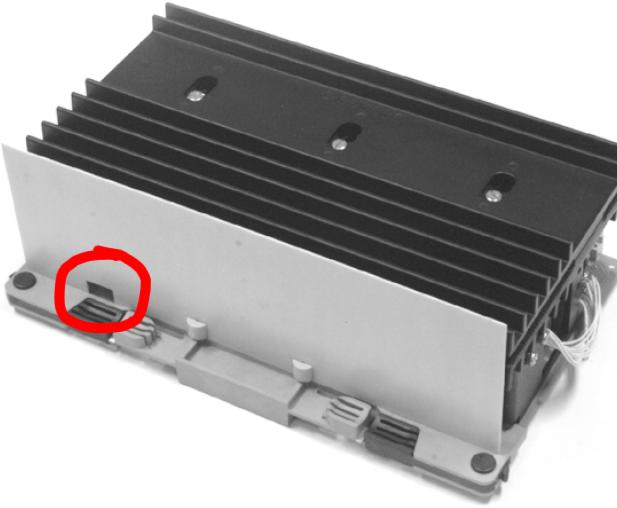

Your picture doesn't show focus/Hsift board that is nearest to left edge when looking table mounted projector from back.
It's similar than in 808s, but it's covered with board. There is hole for two multiturn pots. You probably need to turn those few turns to move raster enough.

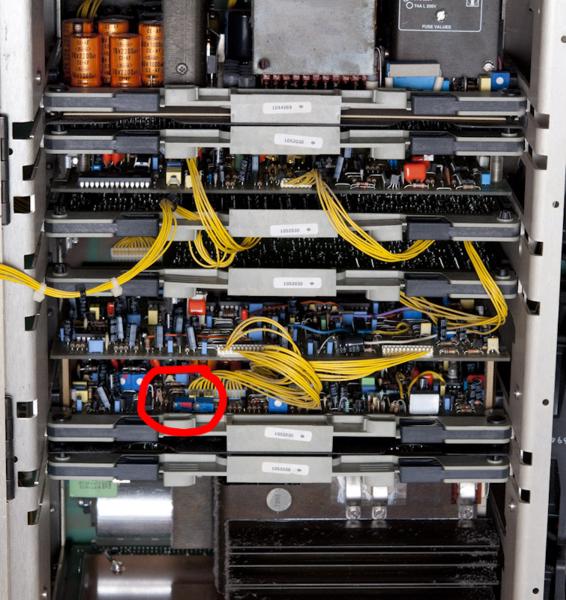

Vertical raster sift pots can be seen from your picture.
| Description: |
|
| Filesize: |
26.4 KB |
| Viewed: |
4544 Time(s) |
|
| Description: |
|
| Filesize: |
74.36 KB |
| Viewed: |
4544 Time(s) |
![niti_26046_112[1].jpg](files/niti_26046_1121_163.jpg)
|
|
|
| Back to top |
|
|
zGman
Joined: 22 May 2006
Posts: 599
|
| Posted: Sat Nov 05, 2011 12:14 am Post subject: |
|
|
Ile - you are just so darn nice and helpful - I was hoping he would actually
read the manual.....hohoho!
G
|
|
| Back to top |
|
|
Mumiemonstret
Joined: 02 Nov 2011
Posts: 4
Location: Stockholm, Sweden
|
| Posted: Sun Nov 06, 2011 9:07 pm Post subject: |
|
|
| zGman wrote: | Ile - you are just so darn nice and helpful - I was hoping he would actually
read the manual.....hohoho!
G |
Haha, I am obscenely fond of reading manuals - the problem here is simply obtaining them. I don't have a service manual for the 1208 and the user and installation manuals don't get into such detail.
People on message boards sharing their knowledge are a lovely substitute! I myself would never say that there's too MUCH helpfulnes on message boards. I would admit, though, that I could have had the curiosity to look behind the cover board myself and see the similarity with the 808 board on Curt's guide.
Anyways, all's well that ends well. I have now centered the raster successfully. And no, I didn't turn every pot, just the red/blue marked ones. I exaggerated a bit to get your attention. Guess it worked!
Thanks for all your help!
|
|
| Back to top |
|
|
zGman
Joined: 22 May 2006
Posts: 599
|
| Posted: Sun Nov 06, 2011 10:53 pm Post subject: |
|
|
Enjoy your crt and welcome - - just a little razz for fun!
G
|
|
