| Posted: Sat Oct 01, 2011 6:06 pm Post subject: 9" of CRT Porn |
|
|
Finally, had my Vision 1 cover that i picked up from Curt painted by my body shop; color change from white to piano black. I think it goes with the decor much better than standard E-home cover. Only thing left is to fabricate a aluminum sheet metal mount for the ACON unit.
BTW, If there are any Vision One owners out there who could snap a shot of their ACON mount it would be really helpful to my fabrication efforts.
|
|
| Back to top |
|
 |
Curt Palme
CRT Tech
Joined: 08 Mar 2006
Posts: 24396
Location: Langley, BC
TV/Projector: All of them!
|
| Posted: Sat Oct 01, 2011 6:35 pm Post subject: |
|
|
Damn dude, we need to go into production. Me, finding slightly worn Vision 1 covers, you with the paint.
Nice work!
|
|
| Back to top |
|
|
DB Cooper
Joined: 14 Mar 2006
Posts: 265
Location: Ambler, Lancaster PA
|
| Posted: Sat Oct 01, 2011 6:42 pm Post subject: |
|
|
|
Nice!!! But, can't you ceiling mount that bad boy?
|
|
| Back to top |
|
|
jbmeyer13
Joined: 03 Dec 2010
Posts: 1135
|
| Posted: Sat Oct 01, 2011 6:57 pm Post subject: |
|
|
This was my first time of setting up the PJ (last time I had it ISF'd) and wanted to make sure I could easily access everything and also be able to move it. Good thing to because the throw distance calculators are way off and I had to go through much trial and error to get things right. In addition, if i need to do any maintenance it's much easier when it's sitting on the ground. Perhaps in the next house it will be ceiling mounted (as part of a blend;-))
_________________
Projector: Modded 9501LC ULtra- MP VIM, Vold VNB, ETECH LVPS, Silver VIM Cables, HD10F's & a V1 case!
|
|
| Back to top |
|
|
kal
Forum Administrator
Joined: 06 Mar 2006
Posts: 18114
Location: Ottawa, Canada
TV/Projector: JVC DLA-NZ7
|
| Posted: Sat Oct 01, 2011 7:21 pm Post subject: |
|
|
Nice work!
+1 however on ceiling mounting it. You're losing the absolute best seat in in the house. You figure out the right throw my moving it around on the floor first (max the image on the green tube and move the projector forward until it fits the screen). The measure the throw distance and do that on the ceiling. Built a unistrut mount that has some movement in all 6 directions for $50-100 if needed. Done!
You can also hushbox it then too.
Kal
_________________
Support our site by using our affiliate links. We thank you!
My basement/HT/bar/brewery build 2.0
|
|
| Back to top |
|
|
Phil Smith
Joined: 08 Mar 2006
Posts: 7717
|
| Posted: Sat Oct 01, 2011 8:36 pm Post subject: |
|
|
| kal wrote: | | You figure out the right throw my moving it around on the floor first (max the image on the green tube and move the projector forward until it fits the screen). The measure the throw distance and do that on the ceiling. |
That's how I did it. It makes it easy to max out your green tube face and removes most possibilities for error.
| Quote: | | You can also hushbox it then too. |
That PJ looks too good to cover it up with a hush box Kal.
|
|
| Back to top |
|
|
kal
Forum Administrator
Joined: 06 Mar 2006
Posts: 18114
Location: Ottawa, Canada
TV/Projector: JVC DLA-NZ7
|
|
| Back to top |
|
|
cinema mad
Joined: 25 Nov 2009
Posts: 219
|
| Posted: Sun Oct 02, 2011 1:53 am Post subject: |
|
|
Black definitely looks good, Makes your CRT look A million Dollars!!!!
Nice looking Theatre BTW, Love the seats...
Was it expensive to paint the cover & did you do the prep yourself?
|
|
| Back to top |
|
|
stefuel
Joined: 07 Mar 2006
Posts: 3353
Location: Green Harbor MA USA
|
| Posted: Sun Oct 02, 2011 10:34 am Post subject: |
|
|
I had always hoped to get my hands on the Vision plugs that were kicking around here for a while a few years back. They seemed to have vanished. I wanted to use them to make a cover set from carbon fiber in clear so that you can see the mesh. I think that would look way cool.
_________________
Chip
A Barco is only a AmPro with training wheels
Card carrying member of the AVS chain gang.
|
|
| Back to top |
|
|
stefuel
Joined: 07 Mar 2006
Posts: 3353
Location: Green Harbor MA USA
|
| Posted: Sun Oct 02, 2011 11:01 am Post subject: |
|
|
| kal wrote: | Nice work!
+1 however on ceiling mounting it. You're losing the absolute best seat in in the house. You figure out the right throw my moving it around on the floor first (max the image on the green tube and move the projector forward until it fits the screen). The measure the throw distance and do that on the ceiling. Built a unistrut mount that has some movement in all 6 directions for $50-100 if needed. Done!
You can also hushbox it then too.
Kal |
Kal gets a woody over uni-strut. He must own or have stock in the Co. I think he'd hang the Mona Lisa with it if he had the chance
You have taken the time to make it visually perfect. If it is set up perfectly on the floor, it is easy to transfer the correct location to the ceiling. In your case, the feet from your projector will leave compressed marks on the carpet below it.
You can move the projector out of the way and use a plum-bob to transfer those marks on the floor to the ceiling (exactly). No measuring required and you can use a factory mount to retain that clean pro look.
_________________
Chip
A Barco is only a AmPro with training wheels
Card carrying member of the AVS chain gang.
|
|
| Back to top |
|
|
jbmeyer13
Joined: 03 Dec 2010
Posts: 1135
|
| Posted: Sun Oct 02, 2011 4:47 pm Post subject: |
|
|
I designed the seating platform in a T shape to specifically accomodate the PJ. The ceilings are low in the room and snaking wires through a fully finished ceiling would be a chore. I'd probably have to cut it all up, then run the wires through and finally patch it up and re-paint it. Just seems like a whole lot of hassle that I'm not sure I want to deal with at the moment.
Derfla had the molds but he didn't respond to my email inquiry so not sure if he is still around. I need to fabricate the ACON mount so I'm hoping someone with a V1 can snap a photo.
_________________
Projector: Modded 9501LC ULtra- MP VIM, Vold VNB, ETECH LVPS, Silver VIM Cables, HD10F's & a V1 case!
|
|
| Back to top |
|
|
DB Cooper
Joined: 14 Mar 2006
Posts: 265
Location: Ambler, Lancaster PA
|
| Posted: Sun Oct 02, 2011 8:12 pm Post subject: |
|
|
|
Did he still have them? I thought he gave them to someone else here to try making up a set.
|
|
| Back to top |
|
|
jbmeyer13
Joined: 03 Dec 2010
Posts: 1135
|
| Posted: Sun Oct 02, 2011 10:54 pm Post subject: |
|
|
Not sure what he did, from looking through old threads I think he made a couple but it was just too much work with no ability to make a profit. Hi-Rez has molds (supposedly acquired the originals from Vidikron when they bought them out) but they want a whopping $3500!
To Cinema Mad; thanks for the comments on the seats. We really like them:-)
Regrading painting the case; it should run $300-350; however that means there is no patch work or repairs being done to the fiberglass. That can easily run another $150-200 depending on damage.
_________________
Projector: Modded 9501LC ULtra- MP VIM, Vold VNB, ETECH LVPS, Silver VIM Cables, HD10F's & a V1 case!
|
|
| Back to top |
|
|
HighDefMike
Joined: 20 Aug 2008
Posts: 62
Location: Florida
|
| Posted: Mon Oct 03, 2011 9:31 pm Post subject: |
|
|
|
Beyond Nice! I could sit in my HT and watch a completely blank white screen if my 8500 case looked like that.
|
|
| Back to top |
|
|
AnalogRocks
Forum Moderator
Joined: 08 Mar 2006
Posts: 26706
Location: Toronto, Ontario, Canada
TV/Projector: Sony 1252Q, AMPRO 4000G
|
| Posted: Mon Oct 03, 2011 11:39 pm Post subject: |
|
|
Ok that settles it. You need to put the projector out in front of the screen so you can stare at it
_________________
Tech support for nothing
CRT.
HD done right!
|
|
| Back to top |
|
|
WanMan
Joined: 19 Mar 2006
Posts: 10270
|
| Posted: Tue Oct 04, 2011 10:24 am Post subject: |
|
|
Nice setup. But I think only the ladies would consider motorized animated objects porn-related.
_________________
Trust no one. Absolutely no one. Advice of the board.
|
|
| Back to top |
|
|
jbmeyer13
Joined: 03 Dec 2010
Posts: 1135
|
| Posted: Tue Oct 04, 2011 12:29 pm Post subject: |
|
|
|
Had to make sure I got Curt's attention- what better way than using the word "Porn"
|
|
| Back to top |
|
|
jask
Joined: 17 Mar 2006
Posts: 10187
Location: kamloops BC
|
| Posted: Wed Oct 05, 2011 12:14 am Post subject: |
|
|
| DB Cooper wrote: | | Did he still have them? I thought he gave them to someone else here to try making up a set. |
That would have been me  but.... it never happened.
He lives in a semi rural area and trying to arrange for a courier ( too expensive) or shipping Co. ( too big a PITA to set up ) to go to him to pick up the molds killed it.
These are BIG moulds and would need to be packed and boxed really well for shipping, probably a pallets worth of volume....
The other problem was that there was some mold damage that would need repair and the parts were not all one "married "set so parts would require a lot of handwork to prep before painting. A very cool and worthwhile project but at the time there were only a few people seriously interested in spending some money and that would not have even covered my shipping costs.
|
|
| Back to top |
|
|
digitalayon
Joined: 02 Mar 2009
Posts: 921
|
| Posted: Mon Oct 10, 2011 5:28 am Post subject: |
|
|
|
Hey....what carb are you running under that hood.....oh wait.....it isn't a mach 1 mustang!?....oops!
|
|
| Back to top |
|
|
Speedbird001
Joined: 28 Jan 2011
Posts: 4
|
| Posted: Tue Oct 11, 2011 12:01 pm Post subject: |
|
|
Hi chaps...

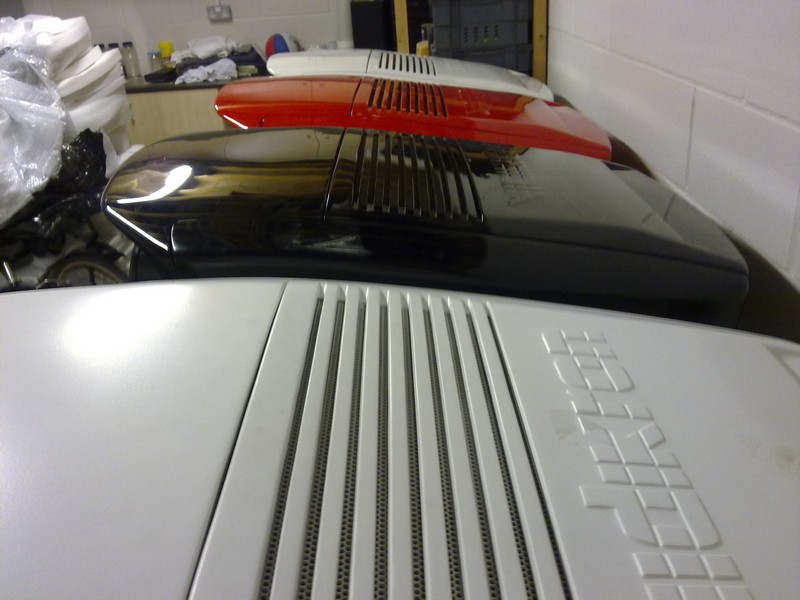

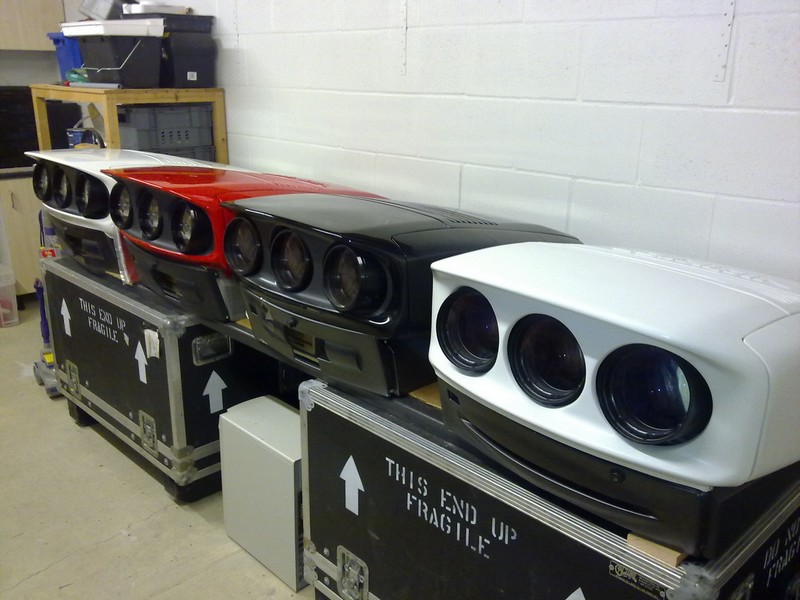

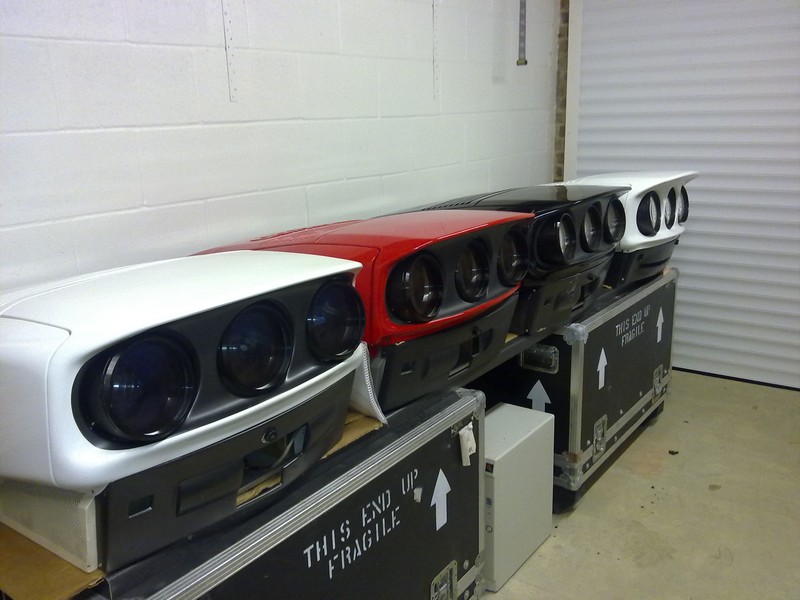

These Marquee covers really are the business are they not...
I have had a few come my way in the past and have one in that lovely black
finish on my 9500..I also have 3 cover sets on units in the garage right now..
That is a Vision 3 without the opening for the acon and this unit now takes pride
of place in a mates home cinema..
Awesome..
| Description: |
|
| Filesize: |
89.82 KB |
| Viewed: |
16405 Time(s) |
|
| Description: |
|
| Filesize: |
96.51 KB |
| Viewed: |
16405 Time(s) |
|
| Description: |
|
| Filesize: |
109.74 KB |
| Viewed: |
16405 Time(s) |
|
_________________
I remember when it took 3 hours to cross the Atlantic
|
|
