| Posted: Thu Jan 06, 2011 10:57 am Post subject: do you know that ? |
|
|
hi,
i get 2 1209S machines...
theses 1209S have mounted whit P16 tubes....
all boards,quad,spliters and lenses are from a
classic 1209S exept the sockets,the tubes and
the rgb outout amplifers...!!
i never seen it....
if anyone know this strange machine,
i would like know more about this ovni
thanks!!!
p:
it is original machine from BARCO,not customised barco...
|
|
| Back to top |
|
 |
Ile
Joined: 09 Mar 2006
Posts: 1491
Location: Jyväskylä, Finland
|
| Posted: Thu Jan 06, 2011 1:41 pm Post subject: |
|
|
Maybe these are rare 1208s LC versions. What model is marked to on that back plate sticker?
Barco made few of these, maybe some customer wanted shorter throw and cheaper tubes.
|
|
| Back to top |
|
|
tromatus
Joined: 19 Nov 2010
Posts: 66
|
| Posted: Thu Jan 06, 2011 6:25 pm Post subject: |
|
|
| Ile wrote: | Maybe these are rare 1208s LC versions. What model is marked to on that back plate sticker?
Barco made few of these, maybe some customer wanted shorter throw and cheaper tubes. |
hi
model 1209S R9000972
and the tubes are P16LNP...
|
|
| Back to top |
|
|
Elaine Benes
Joined: 25 Apr 2006
Posts: 1416
|
| Posted: Fri Jan 07, 2011 8:31 pm Post subject: |
|
|
|
Barco put together machines the way the customer wanted, I have a former SEOS BG808 that has MEC high resolution tubes, lens flapping, and high resolution neckboards/video chain instead of the standard lower res components and Sony tubes. If a customer wanted an odd configuration, Barco did it.
|
|
| Back to top |
|
|
secstate
Joined: 20 Mar 2006
Posts: 720
|
| Posted: Sat Jan 08, 2011 3:30 pm Post subject: |
|
|
|
I agree with Elaine on this one. Barco did many "one/several off" sets for various customers. Over the years I have seen and seen posted all kinds of variations on the standard Barco builds. Are the lenses the 9" HD10 series? The reason I ask is that having LC optics is really the only reason I can see to build a 1209s with 8" tubes. The 1208s is identical to the 1209 other than tubes and lenses (the neck-boards have the tube socket rotated 180 degrees for the 8" tubes but otherwise are identical).
|
|
| Back to top |
|
|
tromatus
Joined: 19 Nov 2010
Posts: 66
|
| Posted: Sun Jan 09, 2011 10:02 am Post subject: |
|
|
| secstate wrote: | Are the lenses the 9" HD10 series? . The 1208s is identical to the 1209 other than tubes and lenses
(the neck-boards have the tube socket rotated 180 degrees for the 8" tubes but otherwise are identical). |
hi the lenses are HD300.
do you think that socket/amp are the same on theses 3 projecteors?
808S,1208S,1209S ?the only difference betwen 1209S,808s'sockets
are the rotationof the socket ?
some people tell yes some people tell no...ref is R722746
the seller of these machines is an administration.i thinks that they wanted to make savings....
|
|
| Back to top |
|
|
secstate
Joined: 20 Mar 2006
Posts: 720
|
| Posted: Sun Jan 09, 2011 3:31 pm Post subject: |
|
|

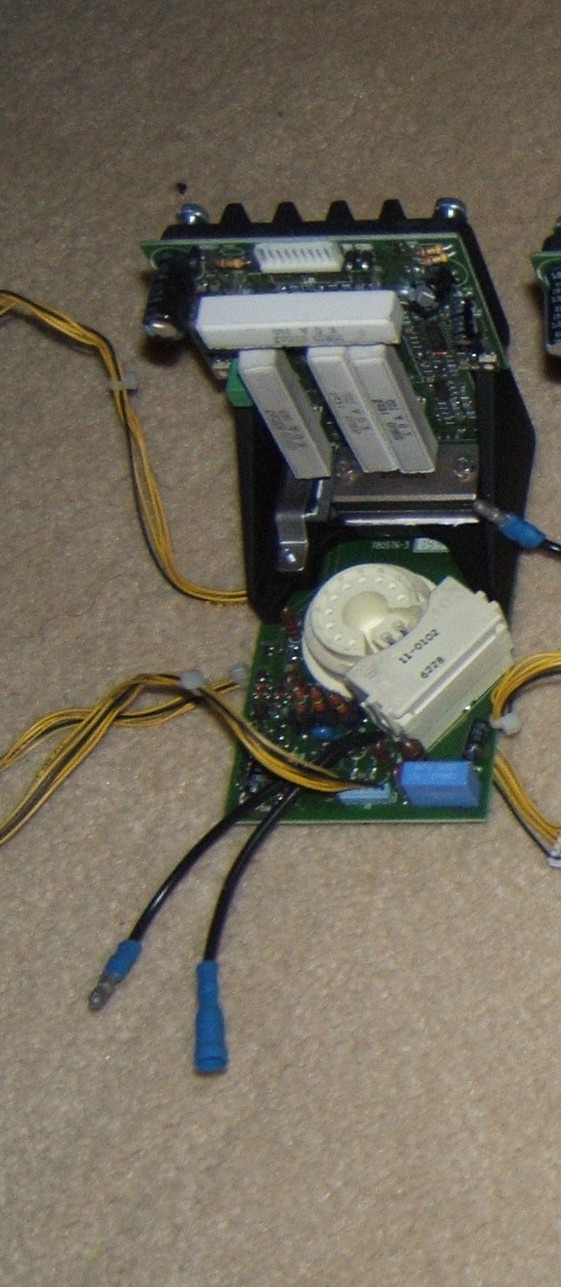

If your neck board looks like the image attached then it is a 120MHz Barco neck board. There are three versions of this board where the socket is different to support 9" MEC tubes, 8" MEC tubes and 8" Sony tubes. Other than the socket the board performance is identical. I have had all three versions. The one pictured is the 8" version from a 1208s/2 I used to have. I have owned all three at one point or another.
| Description: |
|
| Filesize: |
170.4 KB |
| Viewed: |
5256 Time(s) |
|
|
|
| Back to top |
|
|
tromatus
Joined: 19 Nov 2010
Posts: 66
|
| Posted: Sun Jan 09, 2011 3:50 pm Post subject: |
|
|
hi secstate,
thanks for your response..
yes the sockets in my 1209S are exactly the same
that on your photo...
i get 3 new rights necksboard because i want to
put 3 p19lugs in my 1209..
but,i have a 808 G too..
and i would like to put p16 barco 1209'tubes into 808.
can i put the 120 mhz neckboards too in the 808 ?
whithout electronical modifications?
and without any problems of compatibility ?
|
|
| Back to top |
|
|
secstate
Joined: 20 Mar 2006
Posts: 720
|
| Posted: Sun Jan 09, 2011 4:48 pm Post subject: |
|
|
| tromatus wrote: | hi secstate,
thanks for your response..
yes the sockets in my 1209S are exactly the same
that on your photo...
i get 3 new rights necksboard because i want to
put 3 p19lugs in my 1209..
but,i have a 808 G too..
and i would like to put p16 barco 1209'tubes into 808.
can i put the 120 mhz neckboards too in the 808 ?
whithout electronical modifications?
and without any problems of compatibility ? |
Yes just make sure you are using the right neckboard for the tubes you are using. They should plug right in and work. I actually used the MEC 8" 120 MHz boards in a Barco Data 808s which originally came with the 75 MHz boards. Your bigger problem is the Sony tubes have different hardware mount points so you will need to replace the blocks of aluminium that the tubes mount to (I have no idea what the official name is). But the P16s won't fit Sony mountpoints. Also the P16s will be mounted in LC hardware and that won't fit the 8" set so you will have to cut out the tubes and mount them in normal air coupled hardware or try to mod the 808 chassis to except 9" LC hardware.
|
|
| Back to top |
|
|
Decibel
Joined: 31 May 2007
Posts: 904
Location: Roma - Italia
|
| Posted: Sun Jan 09, 2011 4:57 pm Post subject: |
|
|
| tromatus wrote: |
some people tell yes some people tell no...ref is R722746 |
PN correct is R762746
It's a very rare 120 Mhz version for 8" Mec tubes (BG808)
PN for 8" Sony Tubes (BG808s) is R762721
PN for 9" tubes in BG1209s (I think P19lcp's or Lug's) is R762839
All appear similar but have pinout different so each version works with a correct tube only.
_________________
Domenico (Barco fan!)
Last edited by Decibel on Mon Jan 10, 2011 12:04 am; edited 1 time in total
|
|
| Back to top |
|
|
tromatus
Joined: 19 Nov 2010
Posts: 66
|
| Posted: Sun Jan 09, 2011 5:23 pm Post subject: |
|
|
| Decibel wrote: | | tromatus wrote: |
some people tell yes some people tell no...ref is R722746 |
|
ha yes ,sorry for the bad number...
it is R762746.
it is work fine with
P16 tubes in a 1209S barco...i have this machine....
i just want to know if i can put this neckboard and tube
into my 808 G without mods ...
|
|
| Back to top |
|
|
Decibel
Joined: 31 May 2007
Posts: 904
Location: Roma - Italia
|
| Posted: Mon Jan 10, 2011 12:18 am Post subject: |
|
|
You said that the lenses are HD300.
These lenses are for LC tubes, then the p16 tubes in your 1209s have LC chambers.
Barco Graphics 808 have no LC chambers because is a AC projector (HD8's lenses).
Pinout of the R762746 are fully compatible with 180DVB22 and P16LNP tubes but you must make a big mod for mount LC tubes+LC chambers
Can you show some photos? You must to purchase these 1209s? Are you sure that tubes are P16?
_________________
Domenico (Barco fan!)
|
|
| Back to top |
|
|
tromatus
Joined: 19 Nov 2010
Posts: 66
|
| Posted: Mon Jan 10, 2011 6:43 am Post subject: |
|
|
hi,
yes,i purchase 3 machines in very good shape few days ago...
and a set of P19lug and 3 1209S sockets..
yes,yes, they are P16 tubes LC in the 3 barco.
my project is:
put p19 with 1209 sockets into the 1209.
and put the P16 with theyr sockets in a 808 G(no S)...
i know that P16 are AC.but i not have LC houssings for 808,
i am goint to put out the p16 from their housings...
in this photo you can see the P16 mounted in
1209 LC'houssings...
http://www.flickr.com/photos/58135785@N06/5341616047/[/img]
|
|
| Back to top |
|
|
Decibel
Joined: 31 May 2007
Posts: 904
Location: Roma - Italia
|
| Posted: Mon Jan 10, 2011 10:07 am Post subject: |
|
|
Many people would to convert AC ---> LC (see link in my signature)
You want LC --->AC
However it's possible. You must disassemble housings of the 180dvb22 and LC chambers of the P16.
If you want to put 120 mhz neckboards into BG808 I think that you must make other little upgrade:
1) Software BG808s
2) three boards that you have in second 1209s
p.s. I seek a 1209s without tubes .... pm for you
| Quote: | | http://www.flickr.com/photos/58135785@N06/5341616047/ |
This link not work
_________________
Domenico (Barco fan!)
|
|
| Back to top |
|
|
tromatus
Joined: 19 Nov 2010
Posts: 66
|
| Posted: Mon Jan 10, 2011 1:10 pm Post subject: |
|
|
| Decibel wrote: | Many people would to convert AC ---> LC (see link in my signature)
You want LC --->AC
However it's possible. You must disassemble housings of the 180dvb22 and LC chambers of the P16.
If you want to put 120 mhz neckboards into BG808 I think that you must make other little upgrade:
1) Software BG808s
2) three boards that you have in second 1209s
p.s. I seek a 1209s without tubes .... pm for you
| Quote: | | http://www.flickr.com/photos/58135785@N06/5341616047/ |
This link not work |
yes i would like to --->AC-->LC on the 808 but i do not have
8" LC chambers...
i did this mod on my 808 few month ago,i just put P16 tubes into!!
this link work fine here,you cannot see the picture ?
|
|
| Back to top |
|
|
Decibel
Joined: 31 May 2007
Posts: 904
Location: Roma - Italia
|
| Posted: Mon Jan 10, 2011 1:45 pm Post subject: |
|
|
| tromatus wrote: | | this link work fine here,you cannot see the picture ? |
"Flickr" registered users can view the pictures.
I just registered but can't view picture, website said "private photo".
_________________
Domenico (Barco fan!)
|
|
| Back to top |
|
|
tromatus
Joined: 19 Nov 2010
Posts: 66
|
| Posted: Mon Jan 10, 2011 2:07 pm Post subject: |
|
|
ha!!!sorry decibel....
try once again.
this should be good
|
|
