| Posted: Sat Apr 17, 2010 5:10 pm Post subject: cable inside marquee LVPS |
|
|
Hi,
I'm having a little problem with a cable in a LVPS again, this time from a Marquee.
It's the one leading from one of the transformers to a 3-pin connector (J3) on the other PCB.
For some odd reason, the plastic part of the plug is missing.
I accidently disconnected it, now i don't know how to reconnect it correctly.

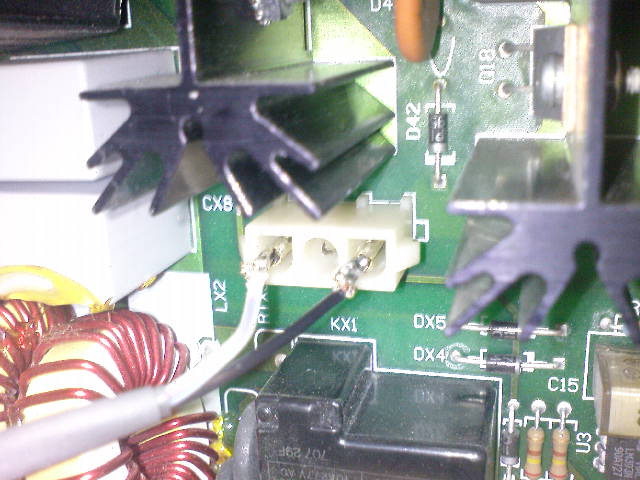

Is my picture correct or do I have to connect it differently?
Thanks,
Tillman
