| Posted: Tue Apr 13, 2010 7:16 pm Post subject: Cable in AmPro LVPS |
|
|
Hi,
I know that board level repairs are unwanted on this forum, but I think this one might be okay:
I accidently broke off a cable inside the Ampro LVPS (Projector is a 3600)

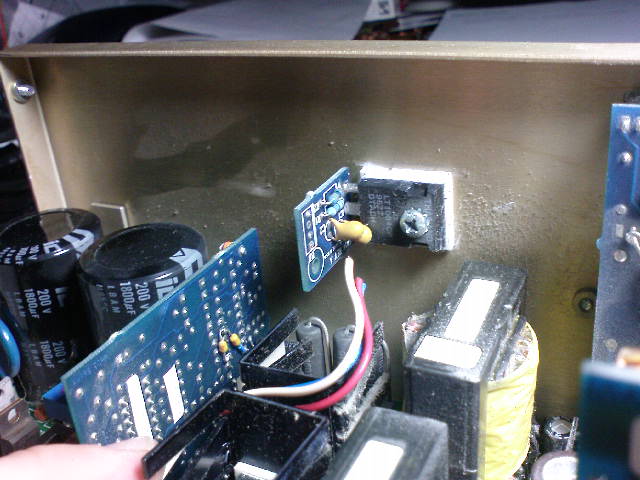

It's the one that connects the transistor mounted to the case with the PCB. (See pic)
Now I don't know which cable was soldered to which hole.
I'd appreciate any help!
Greetings,
Tillman
| Description: |
|
| Filesize: |
68.51 KB |
| Viewed: |
1869 Time(s) |
|
|
|
| Back to top |
|
 |
stefuel
Joined: 07 Mar 2006
Posts: 3353
Location: Green Harbor MA USA
|
| Posted: Tue Apr 13, 2010 9:31 pm Post subject: |
|
|
Top is blue then skip a hole then white and the bottom is red.
Hope that helps???
_________________
Chip
A Barco is only a AmPro with training wheels
Card carrying member of the AVS chain gang.
|
|
| Back to top |
|
|
chillman
Joined: 09 Apr 2007
Posts: 134
Location: Germany, Bavaria
|
| Posted: Tue Apr 13, 2010 10:46 pm Post subject: |
|
|
Thanks a lot, yes this is exactly what I needed to know!
Greetings
|
|
| Back to top |
|
|
