| Posted: Wed Feb 03, 2010 1:53 pm Post subject: 9500lc focus board |
|
|

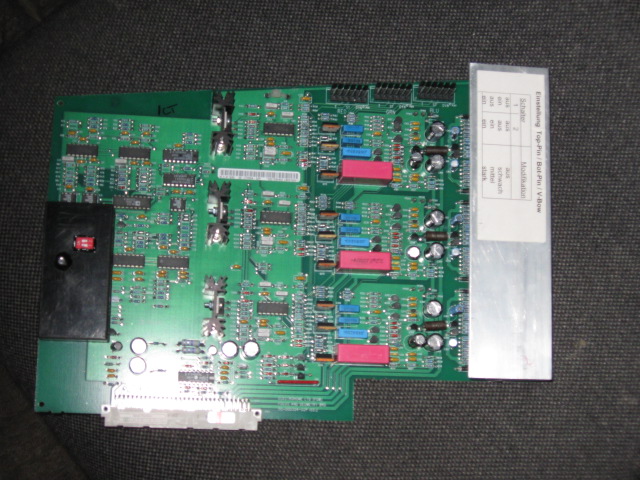

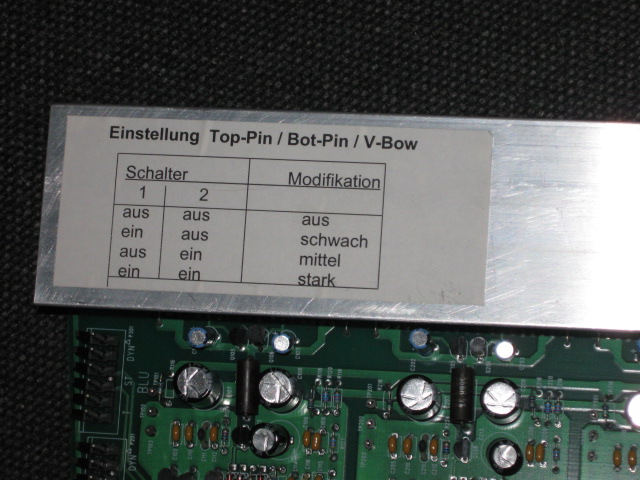

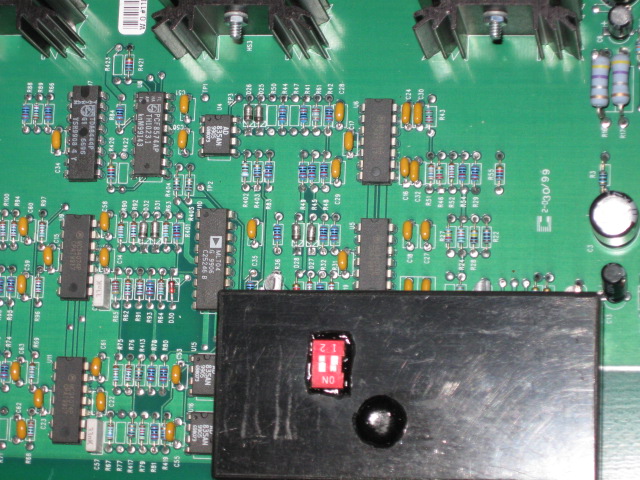

hi does anyone know what the black box on my focus board is used for?
here are some pics
| Description: |
|
| Filesize: |
56.79 KB |
| Viewed: |
6014 Time(s) |
![IMG_0106[1].JPG](files/img_01061_182.jpg)
|
| Description: |
|
| Filesize: |
154.19 KB |
| Viewed: |
6014 Time(s) |
![IMG_0105[1].JPG](files/img_01051_205.jpg)
|
| Description: |
|
| Filesize: |
109.6 KB |
| Viewed: |
6014 Time(s) |
![IMG_0104[1].JPG](files/img_01041_170.jpg)
|
| Description: |
|
| Filesize: |
135.37 KB |
| Viewed: |
6014 Time(s) |
![IMG_0103[1].JPG](files/img_01031_135.jpg)
|
|
|
| Back to top |
|
 |
Curt Palme
CRT Tech
Joined: 08 Mar 2006
Posts: 24396
Location: Langley, BC
TV/Projector: All of them!
|
| Posted: Wed Feb 03, 2010 2:03 pm Post subject: |
|
|
|
It changes the amount of pin and key range. I've seen this before somewhere, I believe it was used for curved screens or simulator use.
|
|
| Back to top |
|
|
Sparky015
Joined: 12 May 2009
Posts: 1185
Location: Cleveland / Akron, OH
|
| Posted: Wed Feb 03, 2010 2:23 pm Post subject: |
|
|
Is this also what an ultra board looks like? I have never been graced by the presence of a Marquee Ultra
_________________
~Paul
|
|
| Back to top |
|
|
cmjohnson
Joined: 03 Apr 2006
Posts: 5180
Location: Buried under G90s
|
| Posted: Wed Feb 03, 2010 2:27 pm Post subject: |
|
|
Yes, that's for use in projectors that are to be used in a dome. It extends the range of adjustment of foucs and geometry.
CJ
|
|
| Back to top |
|
|
Sparky015
Joined: 12 May 2009
Posts: 1185
Location: Cleveland / Akron, OH
|
| Posted: Wed Feb 03, 2010 2:29 pm Post subject: |
|
|
Your own mini-IMAX. Now that would be cool!
_________________
~Paul
|
|
| Back to top |
|
|
dvh99
Joined: 25 Dec 2009
Posts: 2158
Location: nederland
|
| Posted: Wed Feb 03, 2010 2:33 pm Post subject: |
|
|
well thats nice but i have to to put my focus on 24 in the picture menu.
i dont know if this black box do me any good cause i just use my pj on a flat screen.
anyone suggestions whether i should take it out or not?
_________________
1 answer always poses multiple questions.
marquee 9500ultra HD10L moome hdmi1.3 v3+ some mods.
|
|
| Back to top |
|
|
Sparky015
Joined: 12 May 2009
Posts: 1185
Location: Cleveland / Akron, OH
|
| Posted: Wed Feb 03, 2010 2:35 pm Post subject: |
|
|
Do those dip switches on top shut it off? You may want to PM Scott (TSE), and he can give you some good direction.
_________________
~Paul
|
|
| Back to top |
|
|
dvh99
Joined: 25 Dec 2009
Posts: 2158
Location: nederland
|
| Posted: Wed Feb 03, 2010 2:44 pm Post subject: |
|
|
now the house to have the room for imax
_________________
1 answer always poses multiple questions.
marquee 9500ultra HD10L moome hdmi1.3 v3+ some mods.
|
|
| Back to top |
|
|
dvh99
Joined: 25 Dec 2009
Posts: 2158
Location: nederland
|
| Posted: Wed Feb 03, 2010 2:52 pm Post subject: |
|
|
sparky i turned off the dip switches but still my focus has to be set at 24 any ideas?
_________________
1 answer always poses multiple questions.
marquee 9500ultra HD10L moome hdmi1.3 v3+ some mods.
|
|
| Back to top |
|
|
Nashou66
Joined: 12 Jan 2007
Posts: 16171
Location: West Seneca NY
|
|
| Back to top |
|
|
dvh99
Joined: 25 Dec 2009
Posts: 2158
Location: nederland
|
| Posted: Wed Feb 03, 2010 2:58 pm Post subject: |
|
|
would these new focus coils be expensive or curt do you have some lying around?
_________________
1 answer always poses multiple questions.
marquee 9500ultra HD10L moome hdmi1.3 v3+ some mods.
|
|
| Back to top |
|
|
Nashou66
Joined: 12 Jan 2007
Posts: 16171
Location: West Seneca NY
|
|
| Back to top |
|
|
dvh99
Joined: 25 Dec 2009
Posts: 2158
Location: nederland
|
| Posted: Wed Feb 03, 2010 3:19 pm Post subject: |
|
|
tx again athan no there is no focus drift its just that i like my settings to be around 50.
more psychological then a necessity.
_________________
1 answer always poses multiple questions.
marquee 9500ultra HD10L moome hdmi1.3 v3+ some mods.
|
|
| Back to top |
|
|
draganm
Joined: 08 Mar 2006
Posts: 8990
Location: Colorado
|
| Posted: Wed Feb 03, 2010 4:28 pm Post subject: |
|
|
|
I had a FGM with that box, I took it off because the customers machine was having wierd problems, unsteady (shaking) picture, etc. not sure this was the cause but it's better to take off non-factory add-on crap if you don't need it.
|
|
| Back to top |
|
|
cmjohnson
Joined: 03 Apr 2006
Posts: 5180
Location: Buried under G90s
|
| Posted: Thu Feb 04, 2010 1:01 am Post subject: |
|
|
| dvh99 wrote: | | would these new focus coils be expensive or curt do you have some lying around? |
They're not new. They have to be built from existing Kanto-Denshi focus yokes, which must have at least a 9 pin connector on them if they're to be in a Marquee 8500 or 9500. The adaptation of them to being ideal for a Marquee requires
rewinding the internal coils and changing the magnetic strength so that it is optimized for the Marquee focus system.
I will not be able to remagnetize the original Thomson yokes due to size limitations on the toroid I'm using. I wasn't able to get the toroid I really wanted. Some jackass beat me to it and is probably using it for a doorstop. The K-D yoke magnets
will JUST fit. The Thomson system is too large in diameter.
It'll be at least a few more weeks before my remag rig is set up and tested. I've also got to get a gauss meter.
Fortunately, the fixtures I need are something I can make for myself.
CJ
|
|
