| draganm wrote: | | Nashou66 wrote: | Thanks Craig, looks like the moving of wires helped. But the issue is still there for oscillation on the SAB board Like TSE stated. I noticed they use a new chip the EL2245 and its a 100Mhz chip and that seems like the noise getting through.
I am pretty sure i seen a SAB board with the MC3402 chip which is much less. I am at work now so have to look.
Steve and I were talking and He thinks he used the TLE2072 chip there. I have some at home and might try it. But i have to wait for his confirmation. Not sure what bandwidth requirements are needed for the astig adjustment but i don not think its a high bandwidth need, unless its dependent on the refresh rate your running,
EDIT: Ok just got home and the older boards have the same chip. Maybe Steve was mistaken, have to wait and see.
Athanasios |
Any confirmation on a replacement for the EL2245CN? I'm not looking to hot-rod this board, simply looking to repair a SAB channel and the EL2245CN is no longer available?  |
Never heard back from steve but doing some quick research I think this chip might work:
http://www.intersil.com/data/fn/fn7058.pdf
http://www.mouser.com/ProductDetail/EL2227CYZ/?qs=2VKgqYuc3OtW9NqIU4REvA%3d%3d
Athanasios
_________________
Don't blame your underwear for your crooked ass~ unknown Greek philosopher
"Republicans believe every day is the Fourth of July, but the Democrats believe every day is April 15." --- President Reagan
One Smart Dog!!!
Marquee High Performance Bellows now shipping!!
Marquee Modifications and Performance Enhancement
Marquee C-element and Bellow removal
|
|
| Back to top |
|
 |
draganm
Joined: 08 Mar 2006
Posts: 8990
Location: Colorado
|
| Posted: Sun Feb 28, 2010 12:08 am Post subject: |
|
|
I'll give it a shot
Last edited by draganm on Sat Mar 27, 2010 4:06 pm; edited 2 times in total
|
|
| Back to top |
|
|
Nashou66
Joined: 12 Jan 2007
Posts: 16171
Location: West Seneca NY
|
| Posted: Sun Feb 28, 2010 12:32 am Post subject: |
|
|
| draganm wrote: | | thanks Nash, I'll give it a try. Probably best to replace both on that channel so they match |
I actually think they might be way better, look at the voltage input and Current noise figures for the original and the replacement. The original was tested at 10khz and had more noise, usually if you raise the frequency noise also rises. the replacement chip is 10x lower noise figure at 100khz!!!! so that would suggest even much lower at 10khz.
I am interested to see the results.
Athanasios
_________________
Don't blame your underwear for your crooked ass~ unknown Greek philosopher
"Republicans believe every day is the Fourth of July, but the Democrats believe every day is April 15." --- President Reagan
One Smart Dog!!!
Marquee High Performance Bellows now shipping!!
Marquee Modifications and Performance Enhancement
Marquee C-element and Bellow removal
|
|
| Back to top |
|
|
HK-Steve
Joined: 15 Jul 2006
Posts: 849
Location: Switzerland
TV/Projector: Marquee 9500, Epson 8100
|
| Posted: Sun Feb 28, 2010 9:00 am Post subject: |
|
|
Sorry Guy's, I have not been on the computer for the last couple of days.
I do use the TLE2074 in place of the MC34084's on a number of boards.
I don't replace the EL2245's, I looked at this, but never got past talking about it with Athanasios, too many other things on my workbench
Cheers
Steve
_________________
|
|
| Back to top |
|
|
draganm
Joined: 08 Mar 2006
Posts: 8990
Location: Colorado
|
| Posted: Sun Feb 28, 2010 5:15 pm Post subject: |
|
|
| HK-Steve wrote: | I do use the TLE2074 in place of the MC34084's on a number of boards.
I don't replace the EL2245's, I looked at this, but never got past talking about it with Athanasios, too many other things on my workbench
Cheers
Steve |
I ordered 2 last night and I'll let everyone know. I too am buried so don't expect any scoped pics , Just looking to get this board working quickly. Clipped a transistor down pushed over and it shorted to the clip, not hard to do after soldering for 6 hours+
|
|
| Back to top |
|
|
draganm
Joined: 08 Mar 2006
Posts: 8990
Location: Colorado
|
| Posted: Sat Mar 27, 2010 4:05 pm Post subject: |
|
|

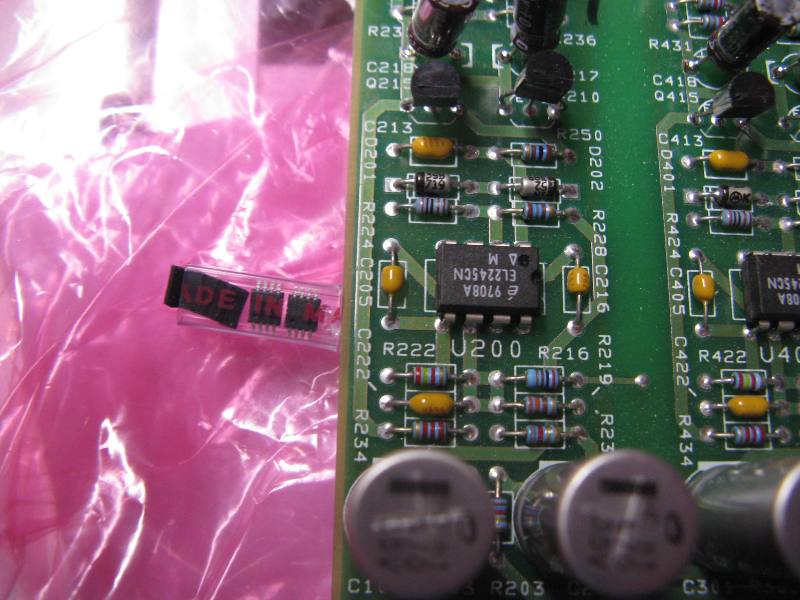

oops, that's not it
| Description: |
|
| Filesize: |
74.32 KB |
| Viewed: |
6049 Time(s) |
|
|
|
| Back to top |
|
|
Nashou66
Joined: 12 Jan 2007
Posts: 16171
Location: West Seneca NY
|
|
| Back to top |
|
|
macgyver655
Joined: 22 Aug 2007
Posts: 8508
|
| Posted: Sat Mar 27, 2010 4:20 pm Post subject: |
|
|
Thats why those data sheets are so handy. It indicates they are not the same style.
Cant say I haven't made the same mistakes before also. I'm very cautious myself anymore.
|
|
| Back to top |
|
|
macgyver655
Joined: 22 Aug 2007
Posts: 8508
|
|
| Back to top |
|
|
draganm
Joined: 08 Mar 2006
Posts: 8990
Location: Colorado
|
| Posted: Sat Mar 27, 2010 4:37 pm Post subject: |
|
|
|
any chance of jumping the legs over to the through holes with fly-wire?
|
|
| Back to top |
|
|
macgyver655
Joined: 22 Aug 2007
Posts: 8508
|
|
| Back to top |
|
|
tse
Joined: 03 May 2006
Posts: 1014
Location: Sweatbucket, Fl.
|
| Posted: Sat Mar 27, 2010 6:17 pm Post subject: |
|
|
| draganm wrote: | | any chance of jumping the legs over to the through holes with fly-wire? |
Fly wire would work. Keep them short.

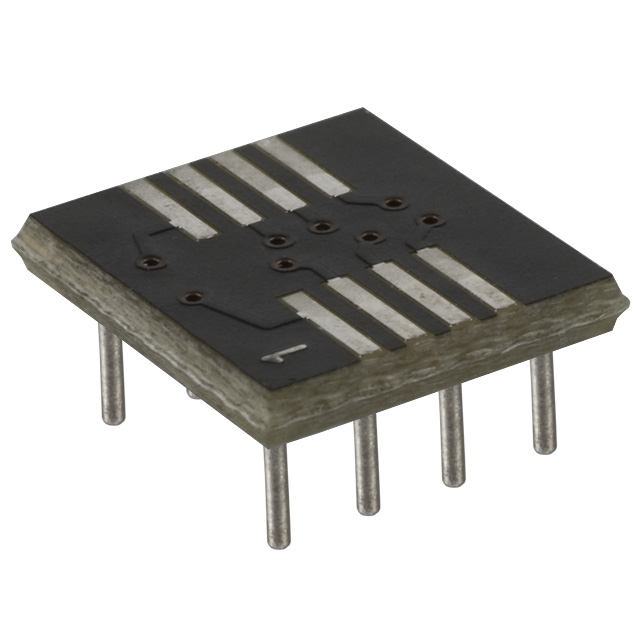

Check to make sure the pin-out is the same and if it is something like this can be found, search for msop to dip adapter.
Scott
| Description: |
|
| Filesize: |
85.59 KB |
| Viewed: |
6012 Time(s) |
|
_________________
"Were we directed from Washington when to sow and when to reap, we would soon want bread."
Thomas Jefferson
|
|
| Back to top |
|
|
Nashou66
Joined: 12 Jan 2007
Posts: 16171
Location: West Seneca NY
|
|
| Back to top |
|
|
draganm
Joined: 08 Mar 2006
Posts: 8990
Location: Colorado
|
| Posted: Tue Jan 10, 2012 1:15 am Post subject: |
|
|
| Nashou66 wrote: | Man just had some nostalgia here. Went back looking all over for that pic and came across the SAB and CMM issues with my Longbows in another thread. That was where you accidentally bought the SOIC chips instead of DIP chips for the SAB. Did you ever buy those SOIC to DIP adaptors to test those out?
https://www.curtpalme.com/forum_archived/viewtopic.php@t=19086.html
Athanasios |
nope. IT was easier to just replace the amp. It didn't seem like the chip was the bad part anyway, not sure really what bolew on that board. One of the transistors got bent over during re-assembly and shorted against a heat-sink clip. Spent some time on it and then moved on to better things
|
|
| Back to top |
|
|
|
|
