| Author |
Message |
bccole23
Joined: 14 Apr 2009
Posts: 27
|
| Posted: Tue Apr 14, 2009 4:50 pm Post subject: help marquee 9500 ultra ceiling bracket |
|
|

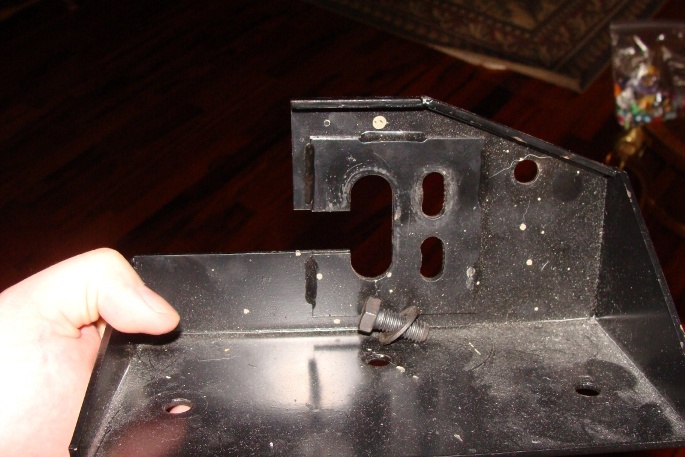

I need help locating the rest of a ceiling bracket for my 9500lc ultra Curt suggested i try here i have all of the parts that attatch to the prjector now i need the parts that attatch to the ceiling.[img][/img]
| Description: |
|
| Filesize: |
132.86 KB |
| Viewed: |
8373 Time(s) |
|
|
|
| Back to top |
|
 |
draganm
Joined: 08 Mar 2006
Posts: 8990
Location: Colorado
|
| Posted: Tue Apr 14, 2009 6:55 pm Post subject: |
|
|
|
this is pretty common, the PJ gets pulled down but the people who do this work aren't the type to take the mating piece and attach it back together. I have gotten 3 or 4 brackets wit hjust the PJ half. Never could find the missing piece, wound up fabricating the missing piece by and machining/welding mild steel together. Basically, it's going to look like a box with slots on the upper flat part and 1 pin on the side. 4 nutes spot welded to inner face.
|
|
| Back to top |
|
|
Clarence
Joined: 08 Mar 2006
Posts: 3827
Location: Smith Mtn Lake, VA
|
| Posted: Tue Apr 14, 2009 7:08 pm Post subject: |
|
|
I think I have a few of those somewhere, but I'm not exactly sure if they went to a Marquee, or a G70, or a G90, or a Barco, or a Ampro, or a XG, or a PG, or a...
What's the measured width between your hooker doohickies?
|
|
| Back to top |
|
|
Curt Palme
CRT Tech
Joined: 08 Mar 2006
Posts: 24396
Location: Langley, BC
TV/Projector: All of them!
|
| Posted: Tue Apr 14, 2009 7:11 pm Post subject: |
|
|
|
He emailed me, I told him I'd never seen this type of bracket used on a Marquee, as the mounting holes for the Marquee are in the extreme corners of the set.
|
|
| Back to top |
|
|
Zebu Fellenz
Joined: 21 Dec 2006
Posts: 2567
|
| Posted: Tue Apr 14, 2009 7:22 pm Post subject: |
|
|
|
That looks like the bottom half of a Sony mount, for a 12xx set.
|
|
| Back to top |
|
|
bccole23
Joined: 14 Apr 2009
Posts: 27
|
| Posted: Tue Apr 14, 2009 7:23 pm Post subject: |
|
|
|

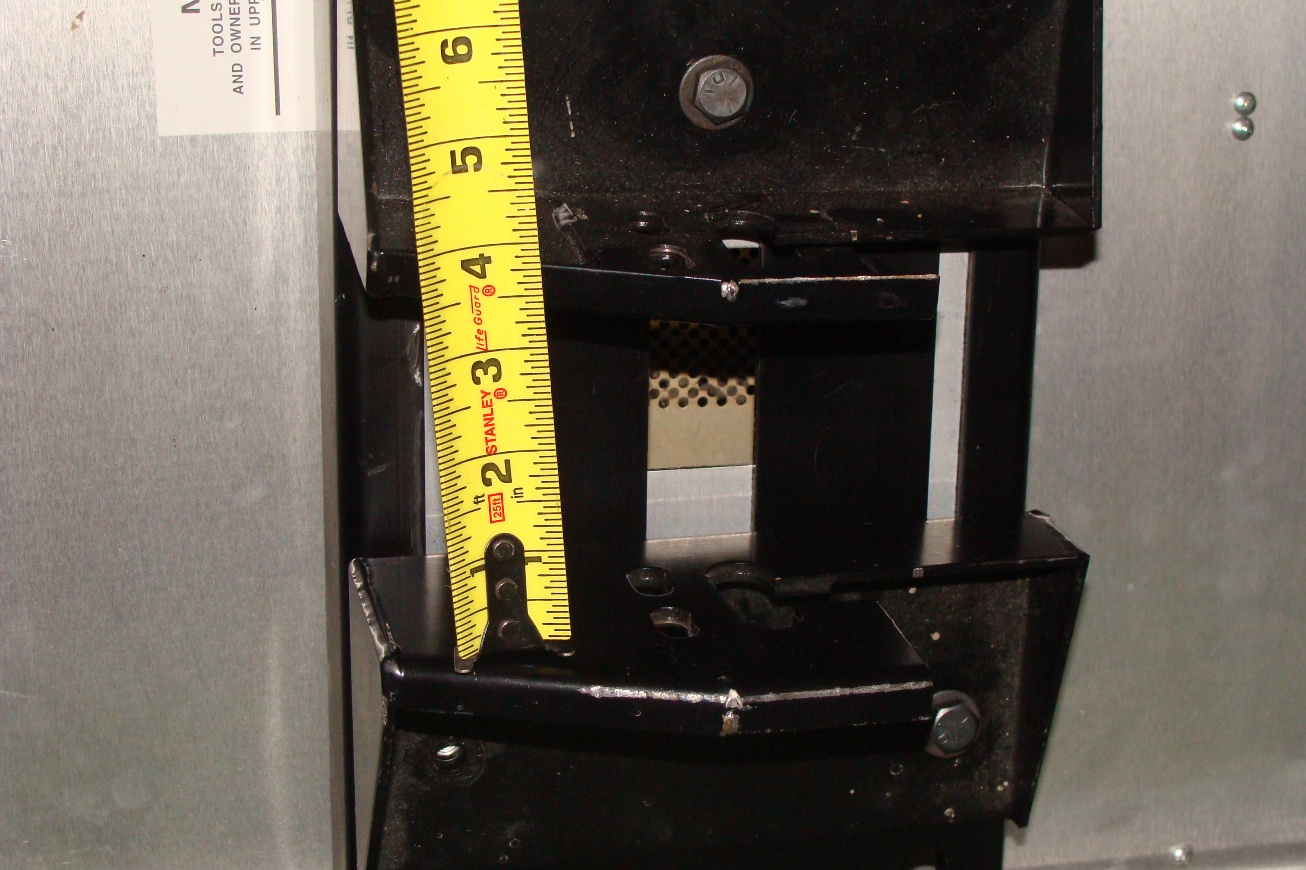

thank you for the responses. it is 3 1/2 inches between the brackets when the are screwed into the base i will try to post more pictures to help
|
|
| Back to top |
|
|
mp20748
Joined: 12 Sep 2006
Posts: 5689
Location: Maryland
TV/Projector: 9500LC Ultra / Super 02 and 03 VIM
|
| Posted: Tue Apr 14, 2009 7:24 pm Post subject: Re: help marquee 9500 ultra ceiling bracket |
|
|
| bccole23 wrote: | | I need help locating the rest of a ceiling bracket for my 9500lc ultra Curt suggested i try here i have all of the parts that attatch to the prjector now i need the parts that attatch to the ceiling |
That is the part that attaches to the ceiling, you need the part that goes on the projector.
I remember seeing a bracket like that before, but not on a marquee.
|
|
| Back to top |
|
|
bccole23
Joined: 14 Apr 2009
Posts: 27
|
| Posted: Tue Apr 14, 2009 7:25 pm Post subject: more pictures |
|
|
here are some more pictures
| Description: |
|
| Filesize: |
371 KB |
| Viewed: |
6670 Time(s) |
|
|
|
| Back to top |
|
|
bccole23
Joined: 14 Apr 2009
Posts: 27
|
| Posted: Tue Apr 14, 2009 7:28 pm Post subject: |
|
|
|
the two ears bolt to an aluminium plate that slides in the steel bracket attatched to the projector the last picture is of the projector on it's side and the plates bolted to it
|
|
| Back to top |
|
|
Clarence
Joined: 08 Mar 2006
Posts: 3827
Location: Smith Mtn Lake, VA
|
| Posted: Tue Apr 14, 2009 7:29 pm Post subject: |
|
|
Those wings are bolted on backwards... the hook tab doohickies are typically more like 18" apart.
Looks like someone rigged their own mounting contraption from other projector mounts. Not that there's anything wrong with that.
|
|
| Back to top |
|
|
bccole23
Joined: 14 Apr 2009
Posts: 27
|
| Posted: Tue Apr 14, 2009 7:34 pm Post subject: |
|
|
|
the plates can only bolt on one way because the holes are staggered, thank you i am open to any suggestions and i appreciate everyones time and help
|
|
| Back to top |
|
|
Tim in Phoenix
Joined: 21 Oct 2006
Posts: 4409
Location: Phoenix
|
| Posted: Tue Apr 14, 2009 7:47 pm Post subject: |
|
|
Hello
Discard that rig, it is not bolted to the projector frame and looks highly unsafe.
.
|
|
| Back to top |
|
|
bccole23
Joined: 14 Apr 2009
Posts: 27
|
| Posted: Tue Apr 14, 2009 7:51 pm Post subject: |
|
|
|
there is a stout frame around the edges that bolts to the frame with a narrower track that is attatched between that the aluminum plates slides in left to right
|
|
| Back to top |
|
|
bccole23
Joined: 14 Apr 2009
Posts: 27
|
| Posted: Tue Apr 14, 2009 7:52 pm Post subject: |
|
|
|
does anyone know if this is a standard mount it does look prfessionaly built and is very heavy or someones home project
|
|
| Back to top |
|
|
Tim in Phoenix
Joined: 21 Oct 2006
Posts: 4409
Location: Phoenix
|
| Posted: Tue Apr 14, 2009 8:25 pm Post subject: |
|
|
| bccole23 wrote: | | there is a stout frame around the edges that bolts to the frame with a narrower track that is attatched between that the aluminum plates slides in left to right |
Hello
I would not never ever mount a Marquee projector by other than the foot sockets; that was the intention of the designers.
.
|
|
| Back to top |
|
|
bccole23
Joined: 14 Apr 2009
Posts: 27
|
| Posted: Tue Apr 14, 2009 9:45 pm Post subject: |
|
|
|
that is where the bolts to this frame attatch is the foot well sockets
|
|
| Back to top |
|
|
Mr. Green
Joined: 23 Feb 2007
Posts: 1394
Location: Calgary
TV/Projector: Marquee 9501LC / NEC 9PG+
|
| Posted: Tue Apr 14, 2009 11:38 pm Post subject: |
|
|
Any marquee owners out there that can snap a few quick pictures of their mount?
_________________
You can be young only once but, you can be immature forever.
Current Projector Marquee9501LC with PS3 (BLu-Ray) at 1080P LOVE IT! Screen is an Elunevision 120" 4:3 (2.4 gain - no hotspots). (also own a NEC 9PG+)
|
|
| Back to top |
|
|
bccole23
Joined: 14 Apr 2009
Posts: 27
|
| Posted: Wed Apr 15, 2009 1:32 am Post subject: |
|
|
|
any more help would be appreciated
|
|
| Back to top |
|
|
NewbieDAN
Joined: 09 Mar 2006
Posts: 319
Location: Bunbury Western Australia
|
| Posted: Wed Apr 15, 2009 2:15 am Post subject: |
|
|
Get your duster out.
_________________
Sorting the fly sh*t from the pepper
|
|
| Back to top |
|
|
AnalogRocks
Forum Moderator
Joined: 08 Mar 2006
Posts: 26706
Location: Toronto, Ontario, Canada
TV/Projector: Sony 1252Q, AMPRO 4000G
|
| Posted: Wed Apr 15, 2009 3:42 am Post subject: |
|
|
| NewbieDAN wrote: | | Get your duster out. |
Not sure how a duster will help his situation  :
| Description: |
|
| Filesize: |
28.97 KB |
| Viewed: |
8166 Time(s) |
|
| Description: |
|
| Filesize: |
22.37 KB |
| Viewed: |
8166 Time(s) |
|
