FlyingCheese
Joined: 19 Nov 2008
Posts: 43
Location: Springfield, IL
|
| Posted: Sat Feb 21, 2009 7:05 pm Post subject: AMPRO 3600 Help |
|
|
Finally got to fire up the PJ's I picked up a week ago. Unfortunately, I started with an AMPRO 3600 and it blew some smoke at me.....Go ahead and let the AMPRO comments fly....
It's coming from what I believe is the convergence output board - on my board it's component R69 which is a 5 ohm power resistor (I think). I've got a second board I can test with, but want to make sure there's not something else wrong with the PJ before plugging that board in.
Any ideas on what the problem could be? Bad/old component or something else somewhere in the PJ?
|
|
| Back to top |
|
 |
FlyingCheese
Joined: 19 Nov 2008
Posts: 43
Location: Springfield, IL
|
| Posted: Sat Feb 21, 2009 11:04 pm Post subject: |
|
|
|
Sorry if this is a bit too specific - I know component-level discussions are discouraged. Just thought it'd help narrow down the issue.
|
|
| Back to top |
|
|
jkruger
Joined: 24 Oct 2007
Posts: 2435
Location: Carlsbad, CA
|
| Posted: Sat Feb 21, 2009 11:11 pm Post subject: |
|
|
|
You might not get a response today, saturdays can be kinda slow around here. You might have another problem that smoked that resistor.
|
|
| Back to top |
|
|
Curt Palme
CRT Tech
Joined: 08 Mar 2006
Posts: 24396
Location: Langley, BC
TV/Projector: All of them!
|
| Posted: Sat Feb 21, 2009 11:43 pm Post subject: |
|
|
|
Drop in the other board. THe convergence boards are usually self contained, nothing outside of the board will usually smoke it.
|
|
| Back to top |
|
|
stefuel
Joined: 07 Mar 2006
Posts: 3353
Location: Green Harbor MA USA
|
| Posted: Sat Feb 21, 2009 11:56 pm Post subject: |
|
|
That is if it's the convergence board. The focus board is right next to it. Can you take a picture or provide the board #?
_________________
Chip
A Barco is only a AmPro with training wheels
Card carrying member of the AVS chain gang.
|
|
| Back to top |
|
|
macgyver655
Joined: 22 Aug 2007
Posts: 8508
|
| Posted: Sun Feb 22, 2009 1:56 am Post subject: |
|
|
|
Try pulling J50 and fire it up and see if its still getting hot.
|
|
| Back to top |
|
|
tse
Joined: 03 May 2006
Posts: 1014
Location: Sweatbucket, Fl.
|
| Posted: Sun Feb 22, 2009 1:58 am Post subject: |
|
|
Try turning off the registration amp. "55" code on the remote control. The smoke signals should stop.
Too much registration input can make the output amplifier work too hard and make those power resisitors run hot.
Try turning registration on then setting the functions to mid range. If the resistor starts smoking turn registration off for a while. Keep centering the functions (there is a bunch of them) and a point should be met where the smoke stops. If it doesn't then the registration bd or reg amp has some problem.
Scott
_________________
"Were we directed from Washington when to sow and when to reap, we would soon want bread."
Thomas Jefferson
|
|
| Back to top |
|
|
FlyingCheese
Joined: 19 Nov 2008
Posts: 43
Location: Springfield, IL
|
| Posted: Sun Feb 22, 2009 4:36 am Post subject: |
|
|
Pulling J50 didn't help - still got hot enough to smoke. Turning registration off eliminated the smoke. I'll set everything to midrange tomorrow and give it another go.

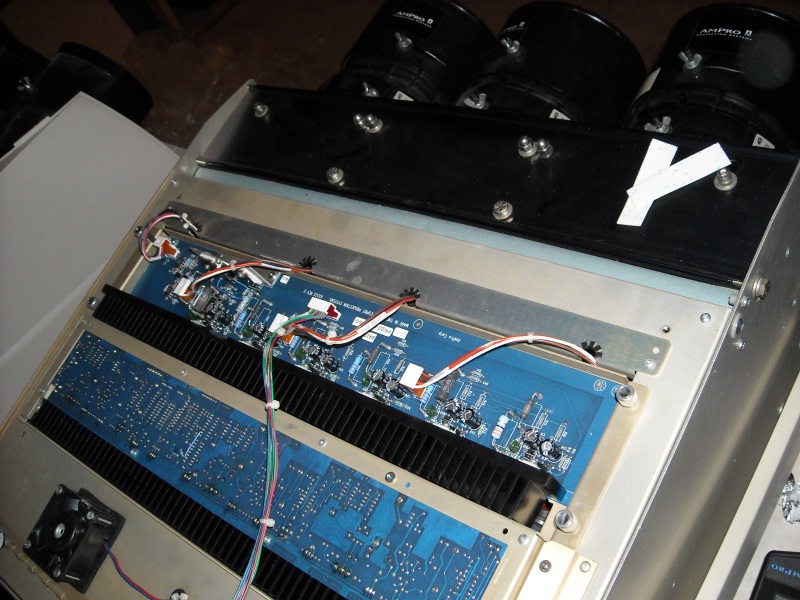

The top-most board in the pic is the one smoking.
| Description: |
|
| Filesize: |
206.74 KB |
| Viewed: |
6333 Time(s) |
|
|
|
| Back to top |
|
|
macgyver655
Joined: 22 Aug 2007
Posts: 8508
|
| Posted: Sun Feb 22, 2009 1:35 pm Post subject: |
|
|
Ah, the old extreme settings causing overheating. I remember this conversation not to long ago....
|
|
| Back to top |
|
|
macgyver655
Joined: 22 Aug 2007
Posts: 8508
|
| Posted: Sun Feb 22, 2009 1:37 pm Post subject: |
|
|
|
Neutral the settings for red first since R69 is for red horizontal...... It might stop smoking quicker.
|
|
| Back to top |
|
|
Curt Palme
CRT Tech
Joined: 08 Mar 2006
Posts: 24396
Location: Langley, BC
TV/Projector: All of them!
|
| Posted: Sun Feb 22, 2009 1:56 pm Post subject: |
|
|
|
Chances are something on the board in the red section has failed. Not uncommon.
|
|
| Back to top |
|
|
Robert A. Hill
Joined: 19 May 2006
Posts: 182
Location: Simpsonville, SC
|
| Posted: Sun Feb 22, 2009 4:03 pm Post subject: |
|
|
|
I have had a couple of 3600 convergence boards with this problem. I think that the resistors are damaged when mechanical setup is improper at some time and a lot of electronic adjustments are used to correct convergence. On two boards, I just replaced most of the resistors in the affected area and the board was fine. The red section was the one to fry on my boards also.
|
|
| Back to top |
|
|
FlyingCheese
Joined: 19 Nov 2008
Posts: 43
Location: Springfield, IL
|
| Posted: Sun Mar 08, 2009 5:20 pm Post subject: |
|
|
Finally had a little time to play with these damn things and I'm close to getting out my BFH and putting it to use....
When I'm stepping through the guided setup, many of the adjustments do nothing. I can run the adjustment from MIN to MAX without seeing anything happen on the screen/grid. Some adjustments work, most don't.
I had a spare machine, so I swapped out the convergence board (I think), but this didn't fix the problem.
Please help before my BFH renders these damn things useless....'
Also, these are 3300's, not 3600's. Not sure that makes a difference or not.
|
|
| Back to top |
|
|
macgyver655
Joined: 22 Aug 2007
Posts: 8508
|
| Posted: Sun Mar 08, 2009 5:31 pm Post subject: |
|
|
|
You probably swapped the convergence output board and not the convergence board. Snap a pic of the board you replaced.
|
|
| Back to top |
|
|
FlyingCheese
Joined: 19 Nov 2008
Posts: 43
Location: Springfield, IL
|
| Posted: Sun Mar 08, 2009 5:45 pm Post subject: |
|
|
|
Scroll up a couple posts, it's the top-most board closest to the lenses. It's got 5 connectors on it.
|
|
| Back to top |
|
|
macgyver655
Joined: 22 Aug 2007
Posts: 8508
|
| Posted: Sun Mar 08, 2009 5:47 pm Post subject: |
|
|
|
Right. Thats the output board. That is NOT the convergence board. Try swapping the convergence board.
|
|
| Back to top |
|
|
FlyingCheese
Joined: 19 Nov 2008
Posts: 43
Location: Springfield, IL
|
| Posted: Sun Mar 08, 2009 5:52 pm Post subject: |
|
|
Right, I obviously know what I'm doing...
Which board is that? I've got the service manual. Is it the one called the 'green convergence board' that sits on top of the back tray?
|
|
| Back to top |
|
|
macgyver655
Joined: 22 Aug 2007
Posts: 8508
|
| Posted: Sun Mar 08, 2009 6:13 pm Post subject: |
|
|
| FlyingCheese wrote: | Right, I obviously know what I'm doing...
Which board is that? I've got the service manual. Is it the one called the 'green convergence board' that sits on top of the back tray? |
See in the pic where it says convergence panel at the top of the pic......
http://www.curtpalme.com/Ampro3600_Layout2.shtm
|
|
| Back to top |
|
|
macgyver655
Joined: 22 Aug 2007
Posts: 8508
|
| Posted: Sun Mar 08, 2009 6:14 pm Post subject: |
|
|
|
Its the whole tray.......
|
|
| Back to top |
|
|
stefuel
Joined: 07 Mar 2006
Posts: 3353
Location: Green Harbor MA USA
|
| Posted: Sun Mar 08, 2009 6:23 pm Post subject: |
|
|
Yep, it's that whole big scary looking thing that swings away. What you should do before you swing the BFH is test the battery on the CPU board with a DMM and get back to us with the voltage
_________________
Chip
A Barco is only a AmPro with training wheels
Card carrying member of the AVS chain gang.
|
|
| Back to top |
|
|
|
|
