| Posted: Fri Oct 31, 2008 11:58 am Post subject: Barco 808s hot spots |
|
|

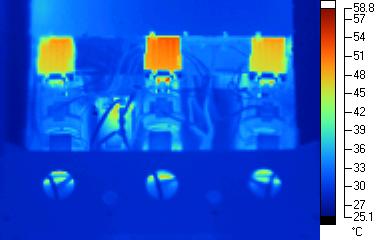

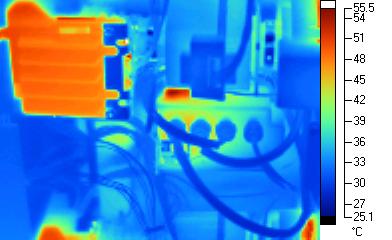

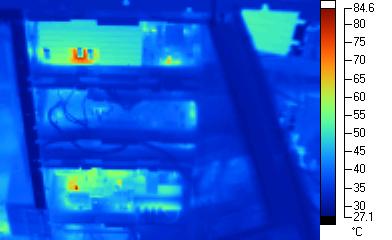

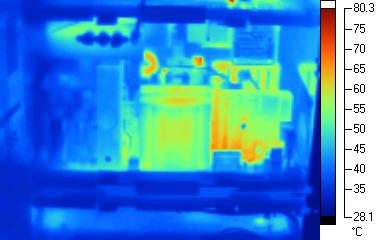

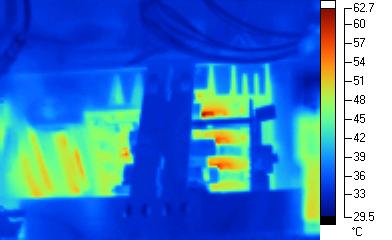

Played with thermographic camera yesterday. Here's few shot.
| Description: |
|
| Filesize: |
10.39 KB |
| Viewed: |
10569 Time(s) |
|
| Description: |
|
| Filesize: |
12.62 KB |
| Viewed: |
10569 Time(s) |
|
| Description: |
|
| Filesize: |
16.09 KB |
| Viewed: |
10569 Time(s) |
|
| Description: |
|
| Filesize: |
10.53 KB |
| Viewed: |
10569 Time(s) |
|
| Description: |
|
| Filesize: |
13.49 KB |
| Viewed: |
10568 Time(s) |
|
| Description: |
|
| Filesize: |
12.95 KB |
| Viewed: |
10568 Time(s) |
|
| Description: |
|
| Filesize: |
12.53 KB |
| Viewed: |
10568 Time(s) |
|
| Description: |
|
| Filesize: |
10.67 KB |
| Viewed: |
10568 Time(s) |
|
| Description: |
|
| Filesize: |
14.27 KB |
| Viewed: |
10568 Time(s) |
|
|
|
| Back to top |
|
 |
Ile
Joined: 09 Mar 2006
Posts: 1491
Location: Jyväskylä, Finland
|
| Posted: Fri Oct 31, 2008 12:03 pm Post subject: |
|
|
What the heck is this?
| Description: |
|
| Filesize: |
11.4 KB |
| Viewed: |
10566 Time(s) |
|
|
|
| Back to top |
|
|
Ile
Joined: 09 Mar 2006
Posts: 1491
Location: Jyväskylä, Finland
|
| Posted: Fri Oct 31, 2008 12:05 pm Post subject: |
|
|

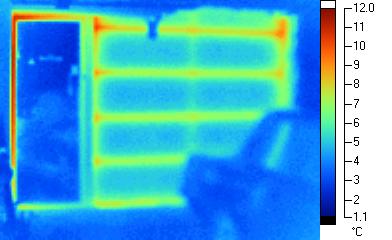

What car is this?
| Description: |
|
| Filesize: |
11.42 KB |
| Viewed: |
10564 Time(s) |
|
| Description: |
|
| Filesize: |
13.96 KB |
| Viewed: |
10564 Time(s) |
|
|
|
| Back to top |
|
|
1031
Joined: 22 Mar 2006
Posts: 657
Location: Finland
|
|
| Back to top |
|
|
Ile
Joined: 09 Mar 2006
Posts: 1491
Location: Jyväskylä, Finland
|
| Posted: Fri Oct 31, 2008 12:16 pm Post subject: |
|
|
| 1031 wrote: | Ile, Seems that you should drop green drive a bit lower so that neckboards runs same temperature (second picture)  |
I was also wondering that.
| 1031 wrote: | | Car, lucky guess: Ford Cortina? |
No, it's not Cortina.
|
|
| Back to top |
|
|
1031
Joined: 22 Mar 2006
Posts: 657
Location: Finland
|
|
| Back to top |
|
|
Ile
Joined: 09 Mar 2006
Posts: 1491
Location: Jyväskylä, Finland
|
| Posted: Fri Oct 31, 2008 12:59 pm Post subject: |
|
|
| 1031 wrote: | | Car went wrong, but is that another mystery item: Tivoli Audio radio? |
Yes, it's model one.
|
|
| Back to top |
|
|
Curt Palme
CRT Tech
Joined: 08 Mar 2006
Posts: 24396
Location: Langley, BC
TV/Projector: All of them!
|
| Posted: Fri Oct 31, 2008 3:35 pm Post subject: |
|
|
| Ile wrote: | | What the heck is this? |
A tube radio?
<edit> I should read the whole thread before quoting..
Now you guys can see why I frown on most fan mods. I consider the Barco projectors to run cool overall compared to say NECs. Look at the temperature chart of the hotspots of the Barco. Ouch!
|
|
| Back to top |
|
|
draganm
Joined: 08 Mar 2006
Posts: 8990
Location: Colorado
|
| Posted: Tue Nov 03, 2009 7:50 pm Post subject: |
|
|
| Curt Palme wrote: | | Now you guys can see why I frown on most fan mods. I consider the Barco projectors to run cool overall compared to say NECs. Look at the temperature chart of the hotspots of the Barco. Ouch! |
it all depends on how you look at it. For instance, Fan mod's = more repair work for Curt
|
|
| Back to top |
|
|
Curt Palme
CRT Tech
Joined: 08 Mar 2006
Posts: 24396
Location: Langley, BC
TV/Projector: All of them!
|
| Posted: Tue Nov 03, 2009 8:13 pm Post subject: |
|
|
|
True, but usually more of a 'throw it out, it's toasted' type of parts sale. I'll take it, but I'd rather do an actual repair. Board swapping isn't a challenge.
|
|
| Back to top |
|
|
TheVerge
Joined: 19 Jul 2009
Posts: 928
|
| Posted: Tue Nov 03, 2009 10:36 pm Post subject: |
|
|
|
Predator vision... i want one of those
|
|
| Back to top |
|
|
mc86
Joined: 20 Sep 2008
Posts: 767
Location: pittsburgh, pa
TV/Projector: ECP 4500 (Vidikron box), ECP4500+, wanting 07MS/07MTS, evaluating pc soft-blend
|
| Posted: Tue Jun 19, 2012 11:26 pm Post subject: |
|
|
Boy, I dunno, fan mods seem all the more needed to me IF temp is detrimental to a given part. That is, I know electrolytic caps do have longer lifetimes with cooler temps...but I'm not sure on the super-hot MOSFETs. 80decC components could use some mini, additional direct cooling - some of those tiny 3cm-ish fans located near components couldn't hurt and are nearly silent and easy to mount with sheet metal.
Matt
|
|
| Back to top |
|
|
km987654
Joined: 25 Jul 2007
Posts: 2874
Location: Australia
TV/Projector: Barco BG809s
|
| Posted: Wed Jun 20, 2012 1:07 am Post subject: |
|
|
|
How hot is hot? What temp does red represent in the thermal images of the 808??
|
|
| Back to top |
|
|
Ile
Joined: 09 Mar 2006
Posts: 1491
Location: Jyväskylä, Finland
|
| Posted: Wed Jun 20, 2012 6:39 am Post subject: |
|
|
|

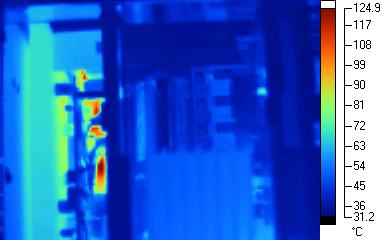

Camera have automatic scaling, so scale vary from picture to picture. Celcius scale is printed at every picture, so for example Hsift board picture have around 125 Celcius degree (dark red) at hottest area.
|
|
| Back to top |
|
|
|
|
