| Posted: Sat Sep 06, 2008 5:16 pm Post subject: Semi-OT: Source for RPTV service info? |
|
|
I'm being called upon more and more to diagnose RPTVs... including a potential paying gig tonight. Is there a good source of service info online?
The set in question is a Phillips 60" HD model 60pp9202, and I'm hoping to find the tube p/n so I can test the tube with my CR-70.
_________________
"Those countries which lag behind in industry, in the application of mechanics and technical chemistry, in the careful selection and utilization of natural products, where the respect for such activities does not permeate all classes of society, will unfailingly decline in prosperity. They will sink faster when neighbor states, with an energetic exchange between science and industry, go forward with renewed vitality."
-- Baron Alexander von Humboldt: 1769-1859
|
|
| Back to top |
|
 |
Clarence
Joined: 08 Mar 2006
Posts: 3827
Location: Smith Mtn Lake, VA
|
|
| Back to top |
|
|
Clarence
Joined: 08 Mar 2006
Posts: 3827
Location: Smith Mtn Lake, VA
|
|
| Back to top |
|
|
Heywood Jablome
Joined: 12 Mar 2006
Posts: 1548
|
| Posted: Sat Sep 06, 2008 5:45 pm Post subject: |
|
|
Ya bahstahd... Googled the answer five seconds before I got there!
Still love to find the service manual (for free!)
_________________
"Those countries which lag behind in industry, in the application of mechanics and technical chemistry, in the careful selection and utilization of natural products, where the respect for such activities does not permeate all classes of society, will unfailingly decline in prosperity. They will sink faster when neighbor states, with an energetic exchange between science and industry, go forward with renewed vitality."
-- Baron Alexander von Humboldt: 1769-1859
|
|
| Back to top |
|
|
macgyver655
Joined: 22 Aug 2007
Posts: 8508
|
| Posted: Sat Sep 06, 2008 5:45 pm Post subject: |
|
|
GREEN is P16LTG00HHA
RED is P16LTG00RFA
BLUE is P16LTG00BMB
There's your online service. Anything else you need to know?
|
|
| Back to top |
|
|
Heywood Jablome
Joined: 12 Mar 2006
Posts: 1548
|
| Posted: Sat Sep 06, 2008 5:47 pm Post subject: |
|
|
| macgyver655 wrote: | GREEN is P16LTG00HHA
RED is P16LTG00RFA
BLUE is P16LTG00BMB
There's your online service. Anything else you need to know? |
Donkey Shorts! I'm logging in to sencore for the pinout now.
_________________
"Those countries which lag behind in industry, in the application of mechanics and technical chemistry, in the careful selection and utilization of natural products, where the respect for such activities does not permeate all classes of society, will unfailingly decline in prosperity. They will sink faster when neighbor states, with an energetic exchange between science and industry, go forward with renewed vitality."
-- Baron Alexander von Humboldt: 1769-1859
|
|
| Back to top |
|
|
Heywood Jablome
Joined: 12 Mar 2006
Posts: 1548
|
| Posted: Sat Sep 06, 2008 5:53 pm Post subject: |
|
|

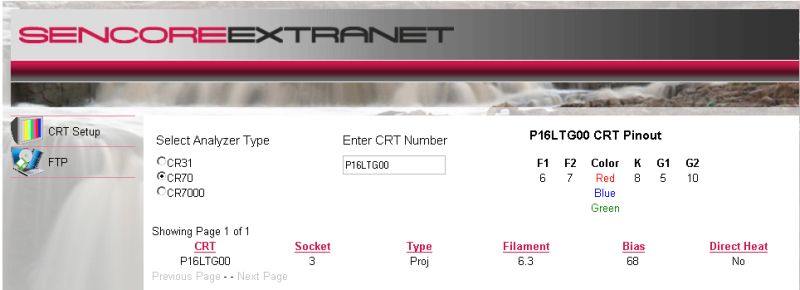

Here's the output of Sencore's database, FWIW:
| Description: |
|
| Filesize: |
29.97 KB |
| Viewed: |
13432 Time(s) |
|
_________________
"Those countries which lag behind in industry, in the application of mechanics and technical chemistry, in the careful selection and utilization of natural products, where the respect for such activities does not permeate all classes of society, will unfailingly decline in prosperity. They will sink faster when neighbor states, with an energetic exchange between science and industry, go forward with renewed vitality."
-- Baron Alexander von Humboldt: 1769-1859
|
|
| Back to top |
|
|
macgyver655
Joined: 22 Aug 2007
Posts: 8508
|
| Posted: Sat Sep 06, 2008 5:56 pm Post subject: |
|
|
|
I have the full manual if you need the pinouts.
|
|
| Back to top |
|
|
stefuel
Joined: 07 Mar 2006
Posts: 3353
Location: Green Harbor MA USA
|
| Posted: Sat Sep 06, 2008 5:58 pm Post subject: |
|
|
I'm comming over and letting the air out of your tires every nite until you put the Quee back together.
_________________
Chip
A Barco is only a AmPro with training wheels
Card carrying member of the AVS chain gang.
|
|
| Back to top |
|
|
Heywood Jablome
Joined: 12 Mar 2006
Posts: 1548
|
| Posted: Sat Sep 06, 2008 6:00 pm Post subject: |
|
|
| stefuel wrote: | | I'm comming over and letting the air out of your tires every nite until you put the Quee back together. |
Gotta take paying work too... Gotta fund these expensive hobbies!
I may be selling my nicest speakers soon, to help pay for the landscaping.
_________________
"Those countries which lag behind in industry, in the application of mechanics and technical chemistry, in the careful selection and utilization of natural products, where the respect for such activities does not permeate all classes of society, will unfailingly decline in prosperity. They will sink faster when neighbor states, with an energetic exchange between science and industry, go forward with renewed vitality."
-- Baron Alexander von Humboldt: 1769-1859
|
|
| Back to top |
|
|
macgyver655
Joined: 22 Aug 2007
Posts: 8508
|
| Posted: Sat Sep 06, 2008 6:14 pm Post subject: |
|
|
Manual is on its way. It covers a bunch of chassis's. Just remember your's is a DPTV305. Any problems, let me know. Have fun.........
|
|
| Back to top |
|
|
Heywood Jablome
Joined: 12 Mar 2006
Posts: 1548
|
| Posted: Sat Sep 06, 2008 6:18 pm Post subject: |
|
|
| macgyver655 wrote: | | Manual is on its way. It covers a bunch of chassis's. Just remember your's is a DPTV305. Any problems, let me know. Have fun......... |
Thanks!
Now lets' see if I can fly in like some kind of Messiah in flip-flops and save this RP P16 tube just as I've saved three P19s and three P16s (from FP stuff.)
_________________
"Those countries which lag behind in industry, in the application of mechanics and technical chemistry, in the careful selection and utilization of natural products, where the respect for such activities does not permeate all classes of society, will unfailingly decline in prosperity. They will sink faster when neighbor states, with an energetic exchange between science and industry, go forward with renewed vitality."
-- Baron Alexander von Humboldt: 1769-1859
|
|
| Back to top |
|
|
Heywood Jablome
Joined: 12 Mar 2006
Posts: 1548
|
| Posted: Mon Sep 08, 2008 1:09 am Post subject: |
|
|
And now for The RRRRRREST of the Story!
Put eyes on the set in question: The red tube output is fine... The TV repair guy that wants to collect the set for repair condemned the red tube based on the owners description: Geometry is out of whack.
Looks like the red top and bottom bow at the very least is severely tweaked: R does not match G&B by at least 20% at the left-right centerline, at the top and bottom extremes.
Took a few pics which I will post in the AM I hope, but my first impression is STKs. Any thoughts?
_________________
"Those countries which lag behind in industry, in the application of mechanics and technical chemistry, in the careful selection and utilization of natural products, where the respect for such activities does not permeate all classes of society, will unfailingly decline in prosperity. They will sink faster when neighbor states, with an energetic exchange between science and industry, go forward with renewed vitality."
-- Baron Alexander von Humboldt: 1769-1859
|
|
| Back to top |
|
|
Heywood Jablome
Joined: 12 Mar 2006
Posts: 1548
|
| Posted: Mon Sep 08, 2008 2:30 pm Post subject: |
|
|

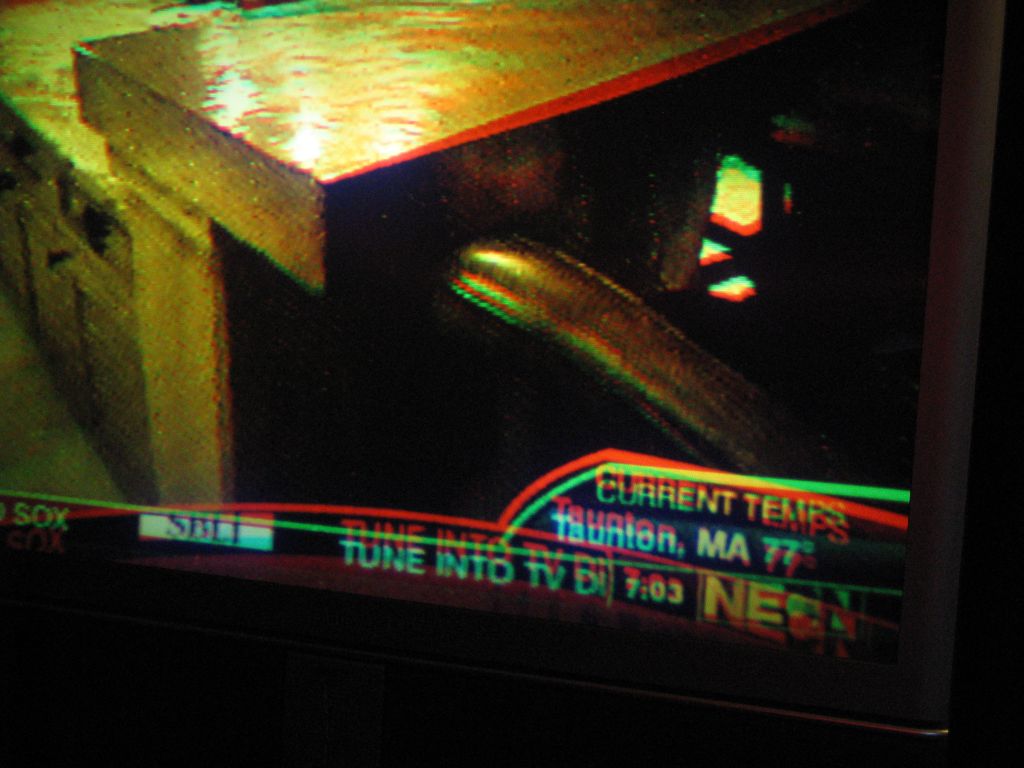

Attached is a pic of the red geometry problem... Simply replace the STKs with -180s and be done with it?
| Description: |
|
| Filesize: |
93.87 KB |
| Viewed: |
13333 Time(s) |
|
_________________
"Those countries which lag behind in industry, in the application of mechanics and technical chemistry, in the careful selection and utilization of natural products, where the respect for such activities does not permeate all classes of society, will unfailingly decline in prosperity. They will sink faster when neighbor states, with an energetic exchange between science and industry, go forward with renewed vitality."
-- Baron Alexander von Humboldt: 1769-1859
|
|
| Back to top |
|
|
Heywood Jablome
Joined: 12 Mar 2006
Posts: 1548
|
| Posted: Mon Sep 08, 2008 3:04 pm Post subject: |
|
|
| stefuel wrote: | | I'm comming over and letting the air out of your tires every nite until you put the Quee back together. |
Two tubes down, one to go. I'll be stripping and ripping tonight and will start rebuilding the thing this week.
_________________
"Those countries which lag behind in industry, in the application of mechanics and technical chemistry, in the careful selection and utilization of natural products, where the respect for such activities does not permeate all classes of society, will unfailingly decline in prosperity. They will sink faster when neighbor states, with an energetic exchange between science and industry, go forward with renewed vitality."
-- Baron Alexander von Humboldt: 1769-1859
|
|
| Back to top |
|
|
macgyver655
Joined: 22 Aug 2007
Posts: 8508
|
| Posted: Mon Sep 08, 2008 3:34 pm Post subject: |
|
|
|
More then likely the convergence ic's. I'm pretty sure the current upgrade for whats in that set is STK394-160E's but let me check my notes later.
|
|
| Back to top |
|
|
macgyver655
Joined: 22 Aug 2007
Posts: 8508
|
| Posted: Mon Sep 08, 2008 3:57 pm Post subject: |
|
|
|
Let me just clarify my last post. Its more likely the ic's but there are other components that can cause it but all within the convergence section (resistor's). Also did you check the solder joints on the convergence ic's. This is very common and sometimes all that is needed is to resolder. I'll still double check the ic numbers for you later.
|
|
| Back to top |
|
|
Heywood Jablome
Joined: 12 Mar 2006
Posts: 1548
|
| Posted: Mon Sep 08, 2008 4:09 pm Post subject: |
|
|
Poked around but did not have my multi-meter or much else in the way of tools... AND the service manual was locked in a phone which requires MS ActiveSync 4.5 to get out (some bahstahd stole my thumbdrive so I dumped it on my phone, but then could not get it into my laptop... The whole exercise started to turn silly so I bailed.)
_________________
"Those countries which lag behind in industry, in the application of mechanics and technical chemistry, in the careful selection and utilization of natural products, where the respect for such activities does not permeate all classes of society, will unfailingly decline in prosperity. They will sink faster when neighbor states, with an energetic exchange between science and industry, go forward with renewed vitality."
-- Baron Alexander von Humboldt: 1769-1859
|
|
| Back to top |
|
|
stefuel
Joined: 07 Mar 2006
Posts: 3353
Location: Green Harbor MA USA
|
| Posted: Tue Sep 09, 2008 1:14 am Post subject: |
|
|
One quick test for the STK is to take something non metalic and put pressure on each pin as it enters the STK's body. I've seen them fall right out as they come unsoldered inside the IC. Go out for a drink and come back with one of those little straws
_________________
Chip
A Barco is only a AmPro with training wheels
Card carrying member of the AVS chain gang.
|
|
| Back to top |
|
|
Heywood Jablome
Joined: 12 Mar 2006
Posts: 1548
|
| Posted: Tue Sep 09, 2008 1:18 am Post subject: |
|
|
| stefuel wrote: | | One quick test for the STK is to take something non metalic and put pressure on each pin as it enters the STK's body. I've seen them fall right out as they come unsoldered inside the IC. Go out for a drink and come back with one of those little straws |
If I go out for a drink I'll stay out!
