| Posted: Wed Apr 30, 2008 3:00 am Post subject: Barco 17volt line |
|
|

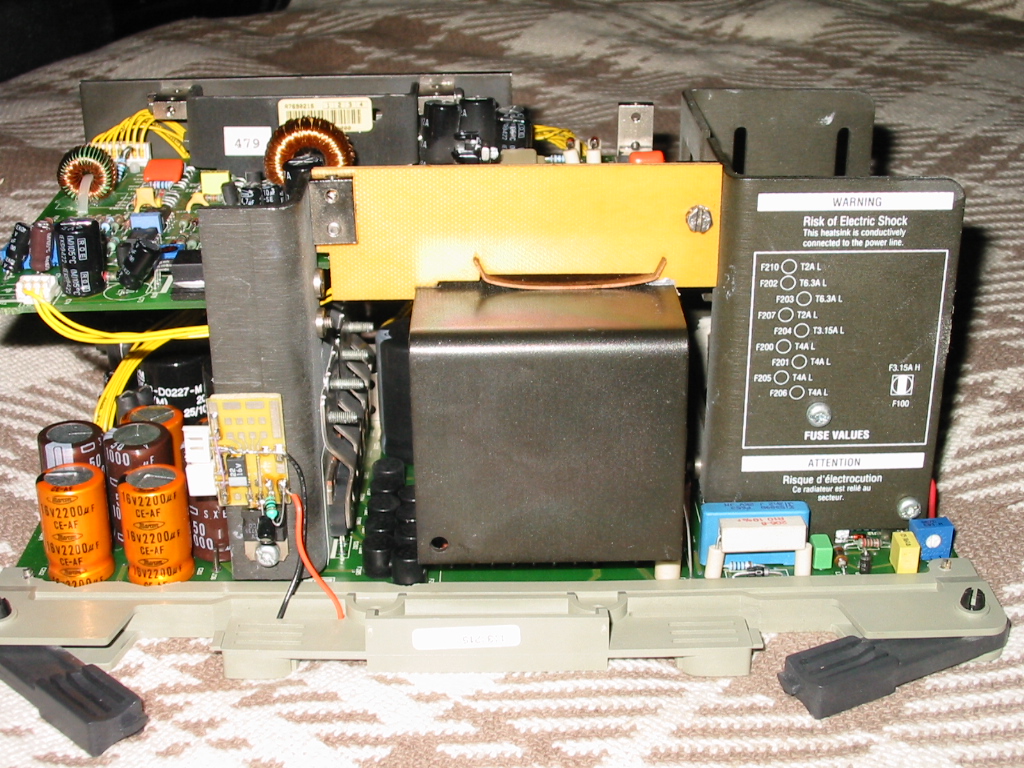

I noticed when I tried to check the 17v line on my 1209s that the smps board doesn't look like the one in the picture on the tips page. There is no connector that looks like the one shown, but there is a pin marked J36 in that general area. It has 16v on it while running. Anyone else run across this or is this one of those strange Runco oddities? Here is what mine looks like.
| Description: |
|
| Filesize: |
475.51 KB |
| Viewed: |
4652 Time(s) |
|
Last edited by jkruger on Wed Apr 30, 2008 4:27 am; edited 1 time in total
|
|
| Back to top |
|
 |
Tom.W
Joined: 09 Mar 2006
Posts: 6635
|
| Posted: Wed Apr 30, 2008 3:54 am Post subject: |
|
|
|
Do you have the 1209s service manual ? If not download it .
|
|
| Back to top |
|
|
jkruger
Joined: 24 Oct 2007
Posts: 2435
Location: Carlsbad, CA
|
| Posted: Wed Apr 30, 2008 4:31 am Post subject: |
|
|
|
They don't have one here, and I didnt find one on ebay either. Do you have one?
|
|
| Back to top |
|
|
Tom.W
Joined: 09 Mar 2006
Posts: 6635
|
| Posted: Wed Apr 30, 2008 4:48 am Post subject: |
|
|
|
Yes but not sure how to send it to you. File size is about 38 Mb on CDR disc.
|
|
| Back to top |
|
|
jkruger
Joined: 24 Oct 2007
Posts: 2435
Location: Carlsbad, CA
|
| Posted: Wed Apr 30, 2008 5:23 am Post subject: |
|
|
|
I'm sure someone will come up with an answer to the question soon.
|
|
| Back to top |
|
|
Tom.W
Joined: 09 Mar 2006
Posts: 6635
|
| Posted: Wed Apr 30, 2008 5:56 am Post subject: |
|
|
Would like to post the service manual here but not allowed...
|
|
| Back to top |
|
|
Curt Palme
CRT Tech
Joined: 08 Mar 2006
Posts: 24396
Location: Langley, BC
TV/Projector: All of them!
|
| Posted: Wed Apr 30, 2008 6:10 am Post subject: |
|
|
I'll address this one LAST TIME.
Servicing and selling sets is how I make my LIVING. THIS is my INCOME. I don't have another job. I put out info here for people to narrow down problems to the closest board, at that point you can either try and repair the board yourself, buy an as is one on eBay or send a defective board for me to repair. That's as much info as I put on the site here.
If this were a hobby, a part time thing, or something that I simply could afford to throw out there because I'm a nice guy, then by all means, I'd throw not only the service manuals on the site, but a step by step procedure on how to troubleshoot every component that I've ever seen fail on every board on every set.
But... since the bank doesn't accept mortgage payments via me telling the banker how to connect his stereo and the grocery store doesn't accept website articles and bits of solder in payment, I rely on people sending in boards for repair. THAT'S why the later manuals aren't on the site.
|
|
| Back to top |
|
|
Ile
Joined: 09 Mar 2006
Posts: 1491
Location: Jyväskylä, Finland
|
| Posted: Wed Apr 30, 2008 11:14 am Post subject: |
|
|
That mini board is some Runco mod. Was this that extra 12V output for screen?
In 1209s 17.5V line are measured between that J36 pinn and chassis ground, when projector is running in standard video signal (about 15.7 kHz) and C/B in mid position.
|
|
| Back to top |
|
|
jkruger
Joined: 24 Oct 2007
Posts: 2435
Location: Carlsbad, CA
|
| Posted: Wed Apr 30, 2008 1:32 pm Post subject: |
|
|
The set seems to be working fine, I noticed the picture seemed a little dull, like it could be brighter or more colorful. It seems duller than the 1272 did. The voltage there is at 16v. I'll recheck it tonite.
I figured that that was the correct pin, but just wanted to know if someone else had run into the same thing. So this board gets the same as the other 1209s at 17.5v?
If I ever run into something that I can't adjust or do with the info that you provide here on the site I will send the boards to Curt for repair. I spent 25 yrs in auto repair and I know what a mess a novice can make when they don't know what they are doing. Makes much more sense to send it to a pro, and I believe in supporting Curt and the site.
I did not ask Tom W to send me the manual, If I want one for reference, I'll buy one. I agree with your not posting service manuals, that's just crazy. That would be like me letting someone repair their car in my yard with my tools and my expertise, with no compensation for me.
I'm capable of swapping out capacitors and stuff that are obviously bad or need to be updated, but when it comes to diagnosing and repairing other stuff it's going to be Curt.
|
|
| Back to top |
|
|
Curt Palme
CRT Tech
Joined: 08 Mar 2006
Posts: 24396
Location: Langley, BC
TV/Projector: All of them!
|
| Posted: Wed Apr 30, 2008 1:53 pm Post subject: |
|
|
Sorry, I had a crappy day yesterday and came in at 11 at night and read Tom's post which set me off.
Trust me, if I was at the user end of projectors, I'd beg, wheedle and bitch too if I couldn't get the s/manual from a site that more or less had everything else out there.
|
|
| Back to top |
|
|
jkruger
Joined: 24 Oct 2007
Posts: 2435
Location: Carlsbad, CA
|
| Posted: Thu May 01, 2008 2:41 pm Post subject: |
|
|
|
I rechecked and adjusted this from 16.1v to 17.4v, with no noticeable difference in picture quality or G2 voltages. What does this setting do?
|
|
| Back to top |
|
|
Ile
Joined: 09 Mar 2006
Posts: 1491
Location: Jyväskylä, Finland
|
| Posted: Thu May 01, 2008 4:54 pm Post subject: |
|
|
17V line is used almost in every board and if it's too low or too high protection circuit turn projector off.
I have read that too low 17 V line could also cause spot burn in some 120* projectors, not sure about 1209s though.
|
|
