| Author |
Message |
bluemoonhu
Joined: 16 Feb 2021
Posts: 259
|
| Posted: Sat Jun 17, 2023 12:42 am Post subject: Barco C7 image jitter |
|
|

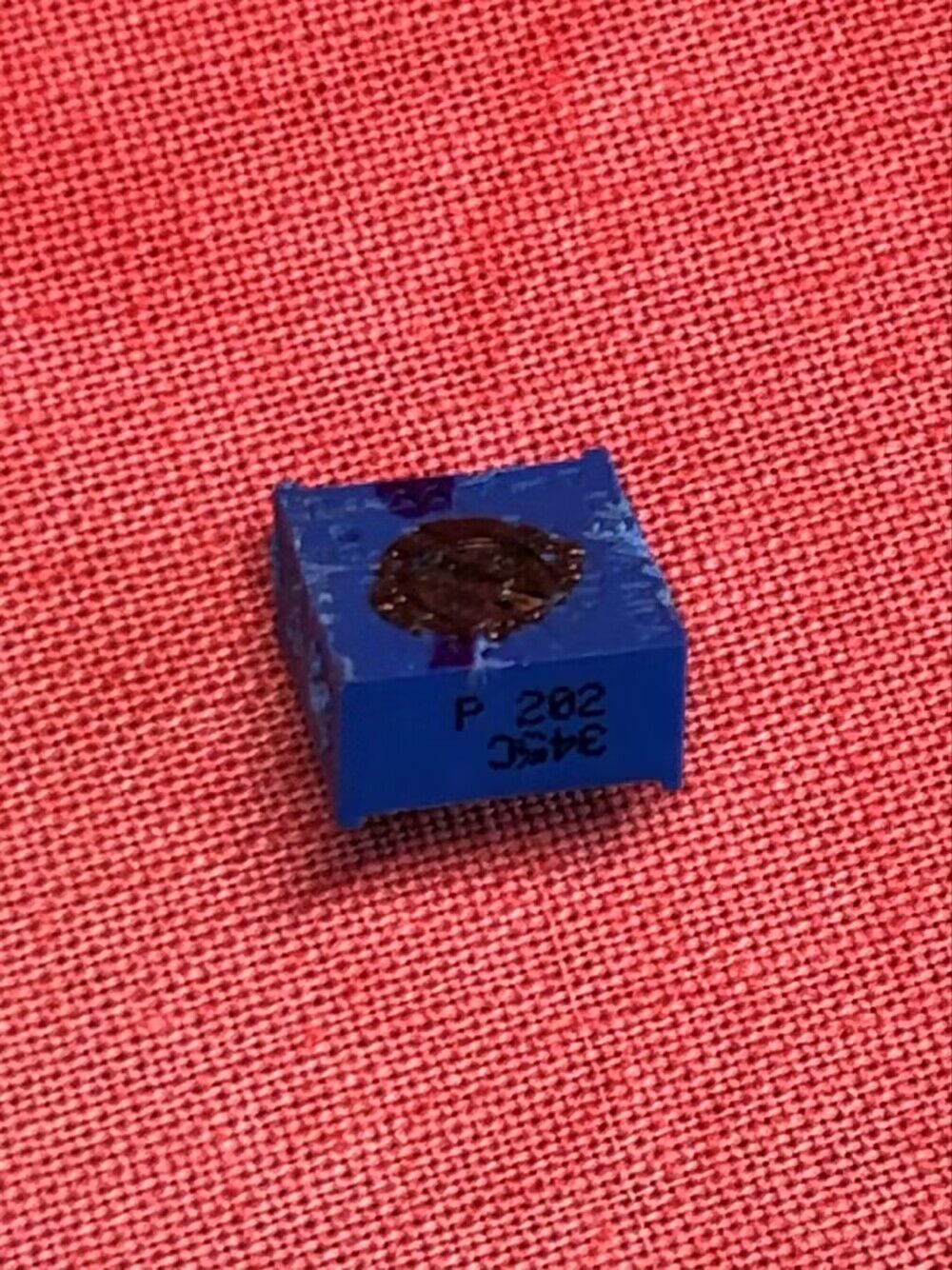

P11
P676
| Description: |
|
| Filesize: |
296.41 KB |
| Viewed: |
4461 Time(s) |
|
|
|
| Back to top |
|
 |
bluemoonhu
Joined: 16 Feb 2021
Posts: 259
|
| Posted: Sat Jun 17, 2023 12:44 am Post subject: Barco C7 image jitter |
|
|
P12

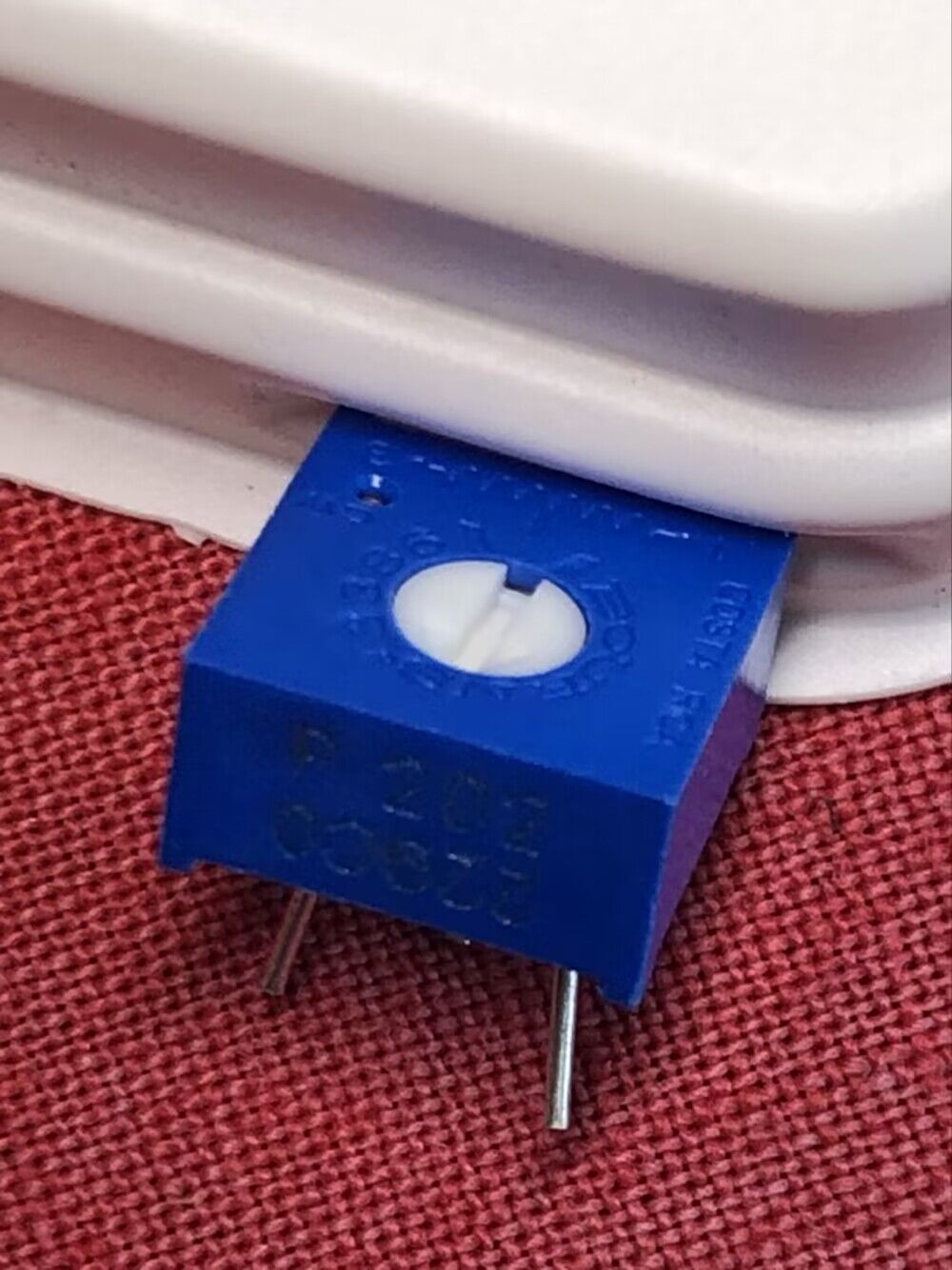

New P676 Potentiometer
| Description: |
|
| Filesize: |
151.75 KB |
| Viewed: |
4460 Time(s) |
|
|
|
| Back to top |
|
|
bluemoonhu
Joined: 16 Feb 2021
Posts: 259
|
| Posted: Sat Jun 17, 2023 3:45 am Post subject: Barco C7 image jitter |
|
|

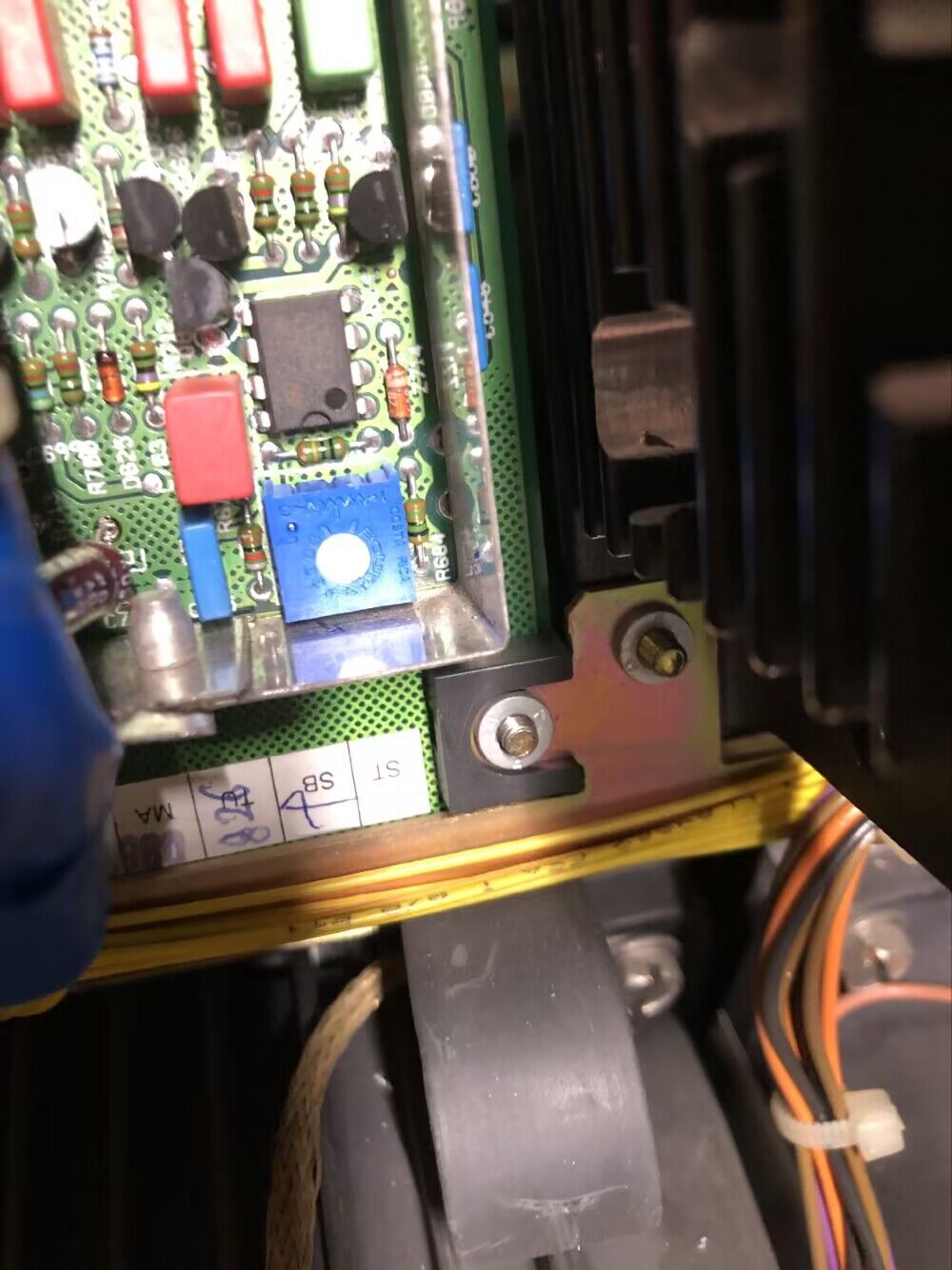

After replacing the P676 Potentiometer, the image looks normal
| Description: |
|
| Filesize: |
148.41 KB |
| Viewed: |
4451 Time(s) |
|
|
|
| Back to top |
|
|
Hulio
Joined: 15 Apr 2006
Posts: 494
Location: Belgium
|
| Posted: Sat Jun 17, 2023 9:15 am Post subject: |
|
|
|
Well done. Yeah, those trimpots loose impedance over time. Because of age, or that red sealing varnish they put on.
|
|
| Back to top |
|
|
bluemoonhu
Joined: 16 Feb 2021
Posts: 259
|
| Posted: Sat Jun 17, 2023 9:23 am Post subject: |
|
|
|
Unfortunately, the problem of image rolling was not solved after the P676 Potentiometer was replaced. I need to repeatedly adjust the P676 Potentiometer every time to obtain a stable image. It seems that there are other problems in the deflection board.
|
|
| Back to top |
|
|
Hulio
Joined: 15 Apr 2006
Posts: 494
Location: Belgium
|
| Posted: Sat Jun 17, 2023 11:56 am Post subject: |
|
|
|
If the new pot is not stable neither, replace elco C716 (10uF 35V).
|
|
| Back to top |
|
|
bluemoonhu
Joined: 16 Feb 2021
Posts: 259
|
| Posted: Sat Jun 17, 2023 2:24 pm Post subject: Barco C7 image jitter |
|
|
[quote="Hulio"]If the new pot is not stable neither, replace elco C716 (10uF 35V).[/quot
before, I replaced all the capacitors on the deflection board！
|
|
| Back to top |
|
|
bluemoonhu
Joined: 16 Feb 2021
Posts: 259
|
| Posted: Sat Jun 17, 2023 2:29 pm Post subject: |
|
|
|
C716 has been replaced by a new capacitor（10uf 50v）too
|
|
| Back to top |
|
|
bluemoonhu
Joined: 16 Feb 2021
Posts: 259
|
| Posted: Sat Jun 17, 2023 2:42 pm Post subject: |
|
|
|
I replaced the Electrolytic capacitor on the deflection board.
|
|
| Back to top |
|
|
Hulio
Joined: 15 Apr 2006
Posts: 494
Location: Belgium
|
| Posted: Sat Jun 17, 2023 2:50 pm Post subject: |
|
|
|
Ok. I see in the schematics that C715 can affect the V hold too (blue rectangular cap, closer to the trimpot). The value is 0,1uF 63V.
|
|
| Back to top |
|
|
bluemoonhu
Joined: 16 Feb 2021
Posts: 259
|
| Posted: Sat Jun 17, 2023 3:04 pm Post subject: |
|
|
| Hulio wrote: | | Ok. I see in the schematics that C715 can affect the V hold too (blue rectangular cap, closer to the trimpot). The value is 0,1uF 63V. |
Okay, there's a high possibility of this
|
|
| Back to top |
|
|
bluemoonhu
Joined: 16 Feb 2021
Posts: 259
|
| Posted: Sun Jun 18, 2023 2:58 am Post subject: Barco C7 image jitter |
|
|

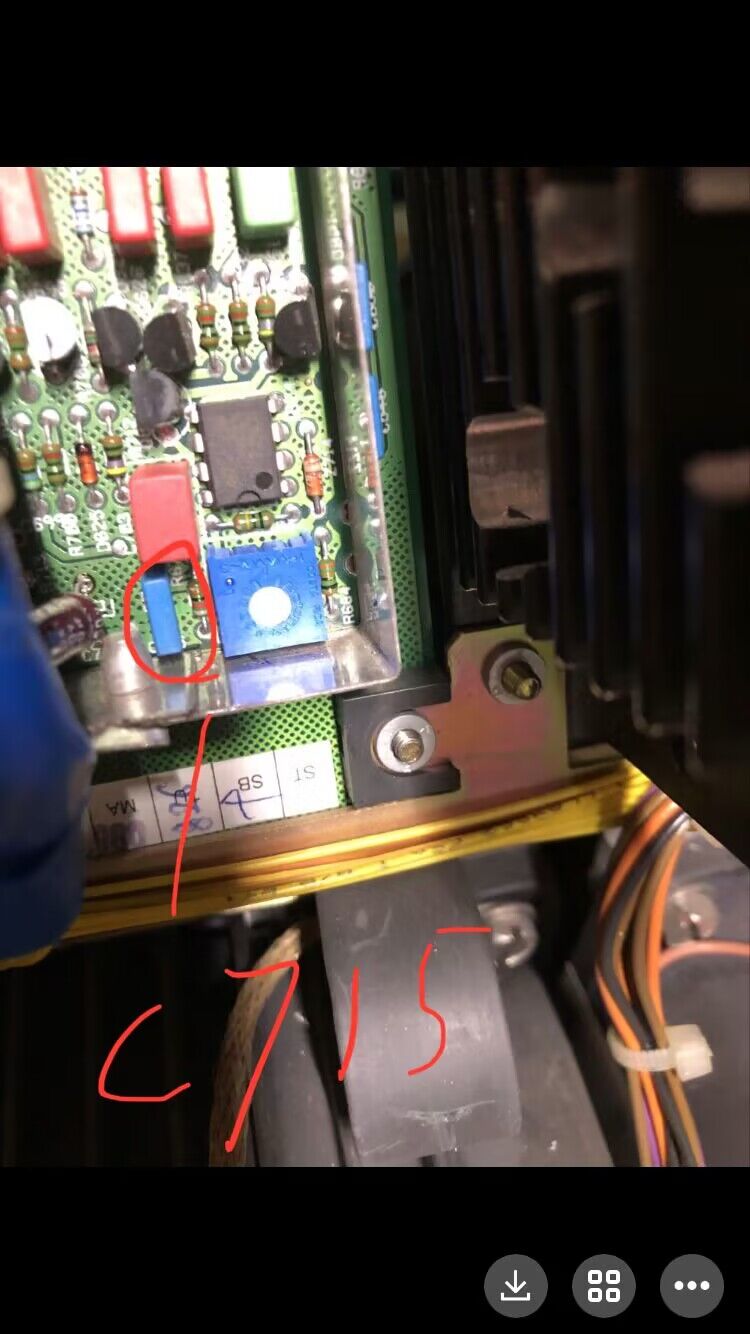

pic13
| Description: |
|
| Filesize: |
106.17 KB |
| Viewed: |
4396 Time(s) |
|
|
|
| Back to top |
|
|
bluemoonhu
Joined: 16 Feb 2021
Posts: 259
|
| Posted: Sun Jun 18, 2023 3:02 am Post subject: |
|
|
| Hulio wrote: | | Ok. I see in the schematics that C715 can affect the V hold too (blue rectangular cap, closer to the trimpot). The value is 0,1uF 63V. |
The C715 has been replaced, and the problem seems to have been resolved.
Thanks!
|
|
| Back to top |
|
|
Hulio
Joined: 15 Apr 2006
Posts: 494
Location: Belgium
|
| Posted: Sun Jun 18, 2023 7:50 am Post subject: |
|
|
|
Alright, well done.
|
|
| Back to top |
|
|
bluemoonhu
Joined: 16 Feb 2021
Posts: 259
|
| Posted: Sun Jun 18, 2023 10:48 am Post subject: |
|
|
|
The image did not roll when turned on, but there was a slight vertical misalignment when changing the signal source. This should not be a problem, everything else is very good。
|
|
