| Author |
Message |
Luuk neele
Joined: 04 Mar 2015
Posts: 186
Location: Wijk bij duurstede, the Netherlands.
|
| Posted: Wed Mar 11, 2015 10:05 pm Post subject: |
|
|
| macgyver655 wrote: | Please do not turn the power on any more until you are told. Remove that power cord and give it to a responsible person.  |
possibility of damaging something i presume?
i removed the powercord and unplugged everything.
|
|
| Back to top |
|
 |
macgyver655
Joined: 22 Aug 2007
Posts: 8508
|
| Posted: Wed Mar 11, 2015 10:07 pm Post subject: |
|
|
|
The +40v line looks ok but the -20v line is shorted. So start removing or disconnecting boards, starting where ever you saw smoke and test that -20v line upon each removal until that 0 reading comes up.
|
|
| Back to top |
|
|
Luuk neele
Joined: 04 Mar 2015
Posts: 186
Location: Wijk bij duurstede, the Netherlands.
|
| Posted: Wed Mar 11, 2015 10:11 pm Post subject: |
|
|
I presume without turning the projector on right? Just with ac connected and the switch on the back in the on position?
I'll flip the switch whenever I take a board out
|
|
| Back to top |
|
|
Luuk neele
Joined: 04 Mar 2015
Posts: 186
Location: Wijk bij duurstede, the Netherlands.
|
| Posted: Wed Mar 11, 2015 10:12 pm Post subject: |
|
|
|
The reading if the - 20v line should be 0?
|
|
| Back to top |
|
|
Luuk neele
Joined: 04 Mar 2015
Posts: 186
Location: Wijk bij duurstede, the Netherlands.
|
| Posted: Wed Mar 11, 2015 10:23 pm Post subject: |
|
|
|
i removed the rgb board , this resulted in a reading of .454 with AC connected but projector not powered up.
|
|
| Back to top |
|
|
Luuk neele
Joined: 04 Mar 2015
Posts: 186
Location: Wijk bij duurstede, the Netherlands.
|
| Posted: Wed Mar 11, 2015 10:31 pm Post subject: |
|
|

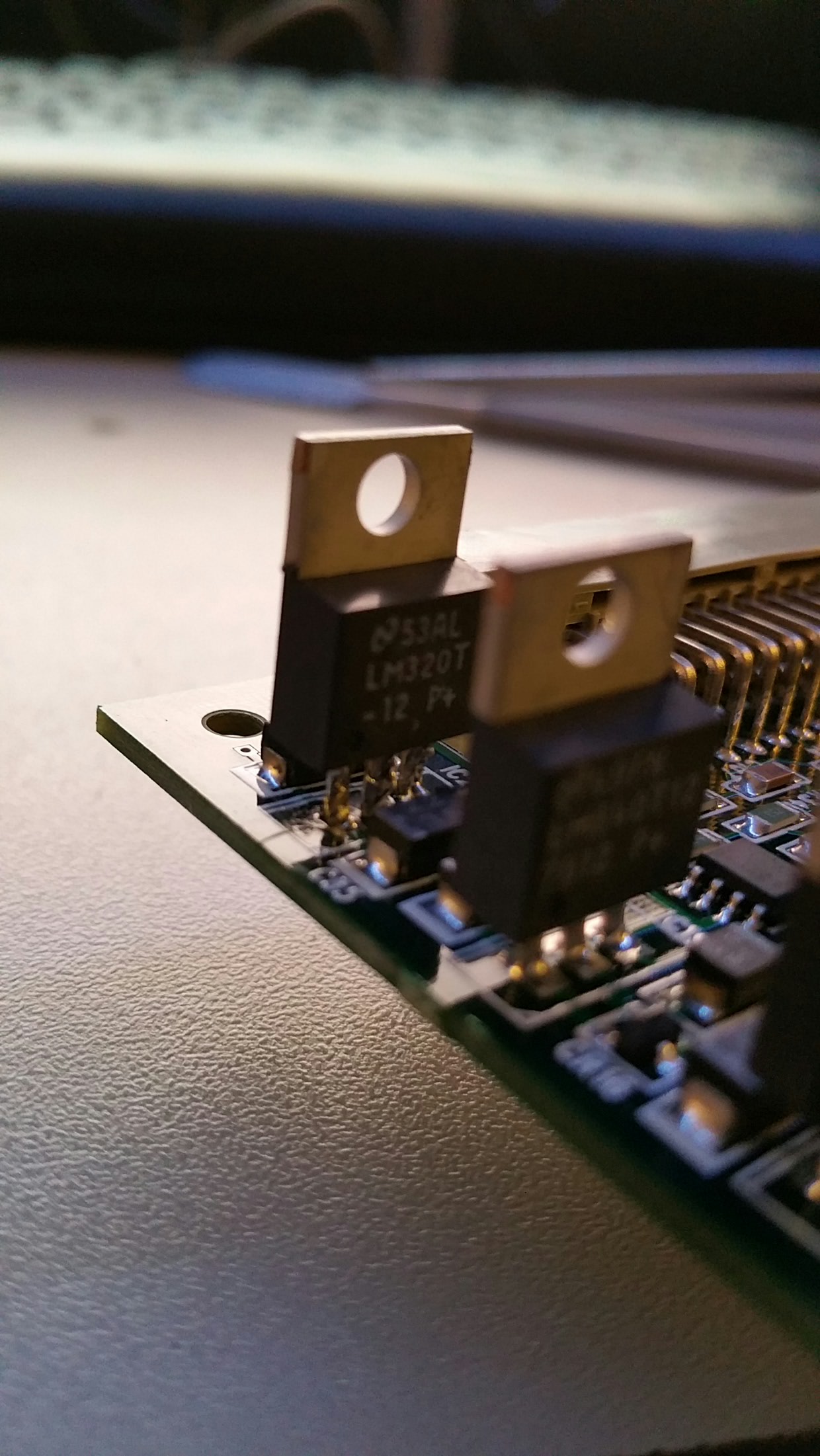

Took out the rgb board.
A resistor seems to have been replaced.
Shoddy work.
| Description: |
|
| Filesize: |
212.75 KB |
| Viewed: |
3687 Time(s) |
|
| Description: |
|
Download |
| Filename: |
2015-03-11 23.30.24.jpg |
| Filesize: |
322.14 KB |
| Downloaded: |
241 Time(s) |
|
|
| Back to top |
|
|
Luuk neele
Joined: 04 Mar 2015
Posts: 186
Location: Wijk bij duurstede, the Netherlands.
|
| Posted: Wed Mar 11, 2015 11:03 pm Post subject: |
|
|

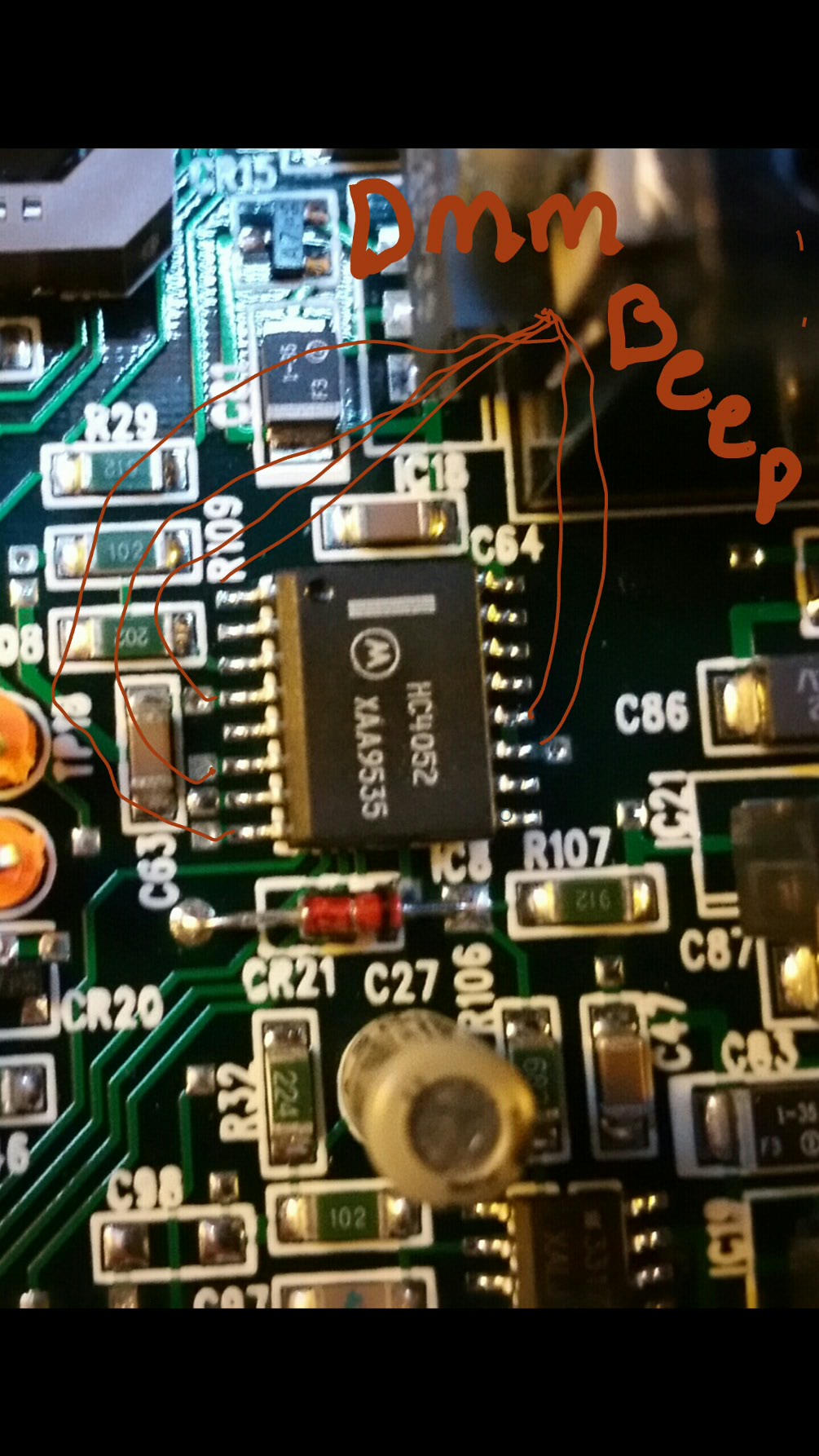

Aha, ic8 on the rgb card
| Description: |
|
| Filesize: |
263.85 KB |
| Viewed: |
3680 Time(s) |
|
|
|
| Back to top |
|
|
macgyver655
Joined: 22 Aug 2007
Posts: 8508
|
| Posted: Wed Mar 11, 2015 11:23 pm Post subject: |
|
|
| Luuk neele wrote: | | i removed the rgb board , this resulted in a reading of .454 with AC connected but projector not powered up. |
Let me say this one more time. Remove that power cord from that projector and put it off to the side. I am not going to be responsible for your death, UNDERSTAND?
If you do it again before you are told I will no longer assist you.
|
|
| Back to top |
|
|
Luuk neele
Joined: 04 Mar 2015
Posts: 186
Location: Wijk bij duurstede, the Netherlands.
|
| Posted: Wed Mar 11, 2015 11:32 pm Post subject: |
|
|
Allright, I am sorry. I appreciate your concern, won't be so stupid.
Everything is powered off and disconnected, I get .433 without the rgb card in its slot, and I get 0 if I plug it back in its slot
All is done WITHOUT POWERCORD
See previous post, I went a little further and measured the ic.
It appears to short at several pins. Is this how it's supposed to behave? Because the same ic is at the left side of the board and thus one doesn't behave like that.
|
|
| Back to top |
|
|
macgyver655
Joined: 22 Aug 2007
Posts: 8508
|
| Posted: Wed Mar 11, 2015 11:35 pm Post subject: |
|
|
Forget that ic. That thing you call a resistor is really a transistor, a regulator to be specific. I need you to test it with your DMM on diode scale. Just test across different legs and give me the readings.
You do know NO POWER for diode and resistance testing, correct?
|
|
| Back to top |
|
|
Luuk neele
Joined: 04 Mar 2015
Posts: 186
Location: Wijk bij duurstede, the Netherlands.
|
| Posted: Wed Mar 11, 2015 11:52 pm Post subject: |
|
|

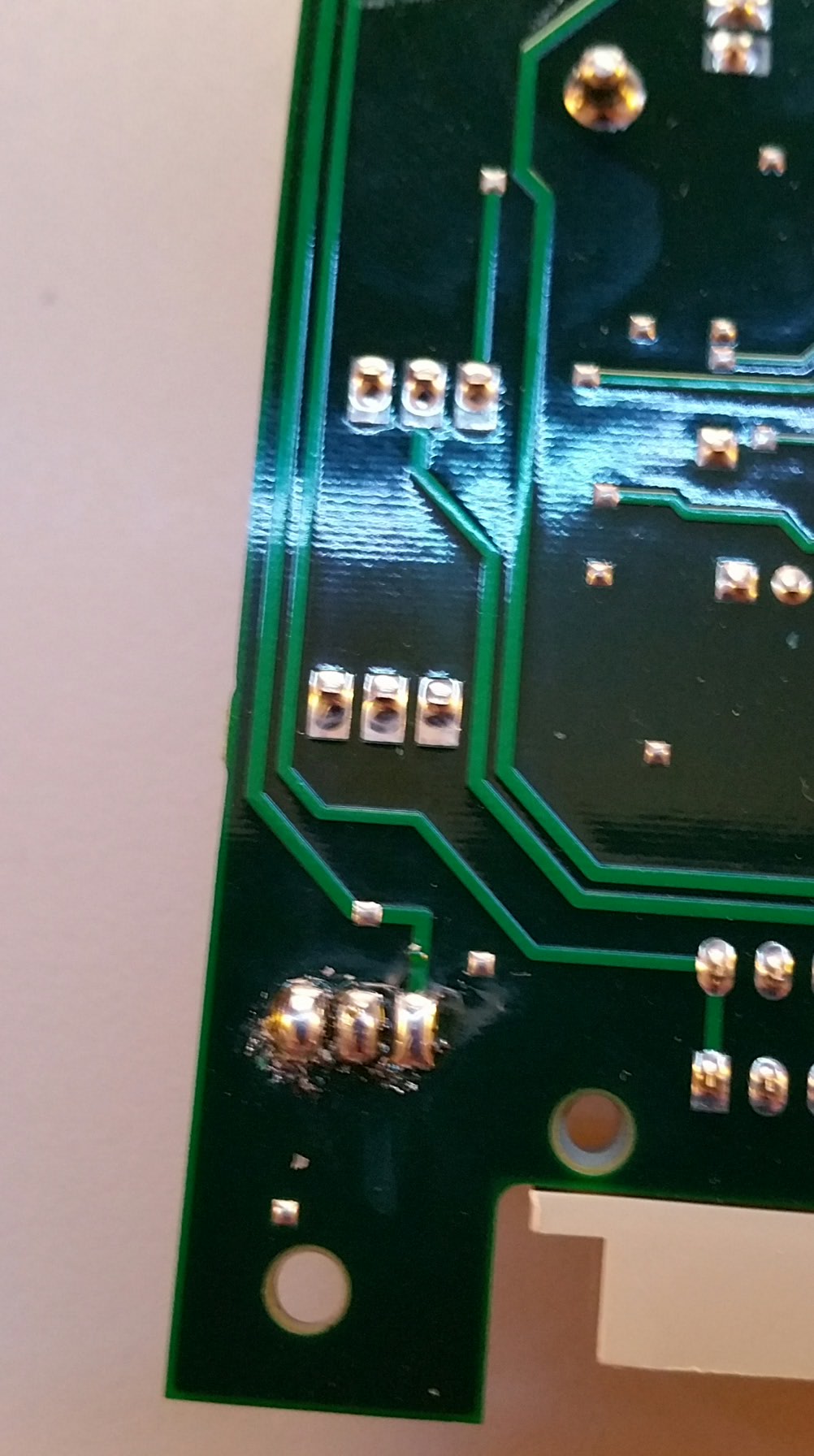

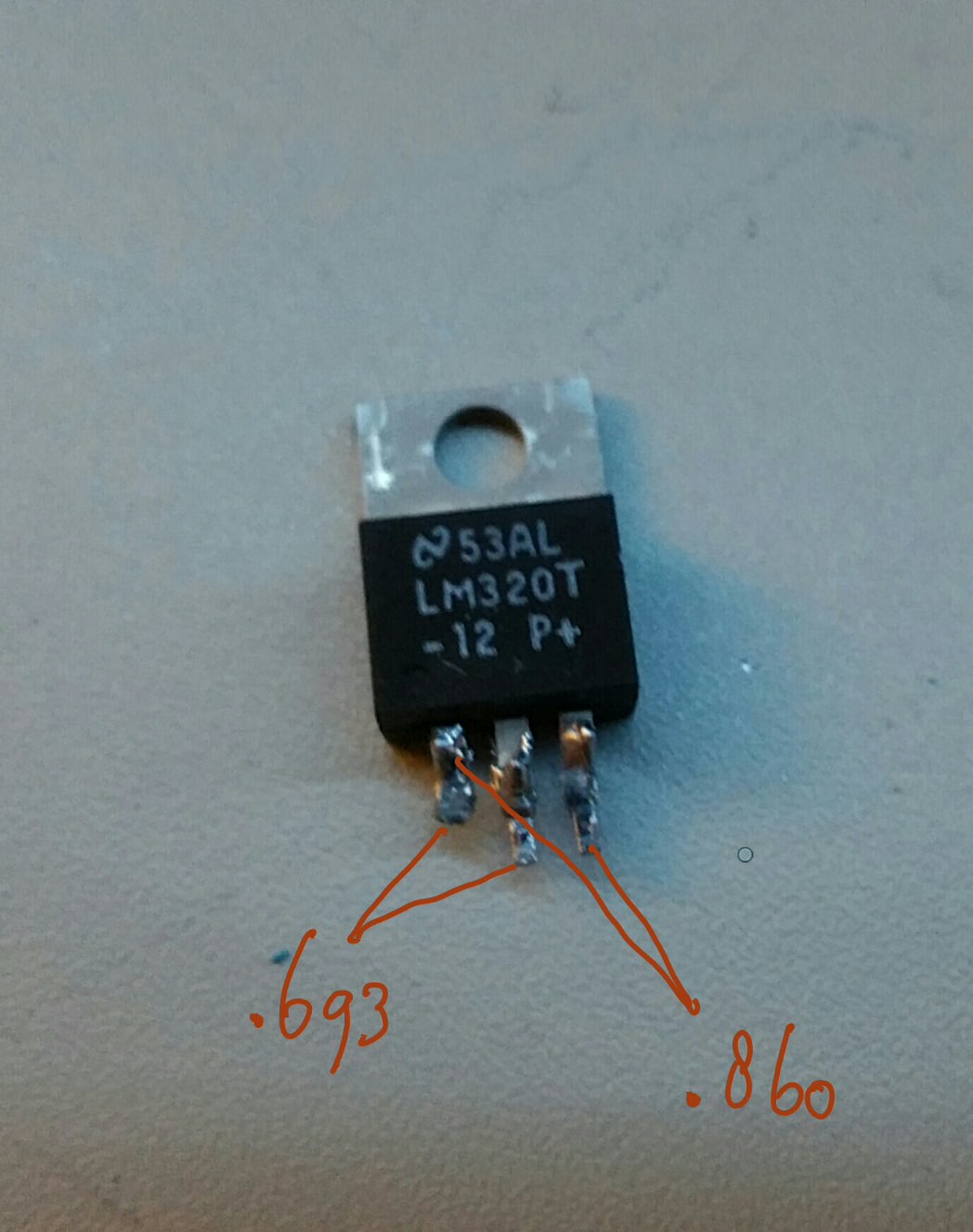

Took rgb card out.
Tried to test the regulator
It came off the board.
Tested it anyway.
| Description: |
|
| Filesize: |
132.58 KB |
| Viewed: |
3657 Time(s) |
|
|
|
| Back to top |
|
|
Luuk neele
Joined: 04 Mar 2015
Posts: 186
Location: Wijk bij duurstede, the Netherlands.
|
| Posted: Wed Mar 11, 2015 11:53 pm Post subject: |
|
|
|
Just to reassure you. There is no powercord anywhere.
|
|
| Back to top |
|
|
macgyver655
Joined: 22 Aug 2007
Posts: 8508
|
| Posted: Wed Mar 11, 2015 11:58 pm Post subject: |
|
|
|
Leave that regulator out and put the board back in the projector and see if you still show a short.
|
|
| Back to top |
|
|
Luuk neele
Joined: 04 Mar 2015
Posts: 186
Location: Wijk bij duurstede, the Netherlands.
|
| Posted: Wed Mar 11, 2015 11:59 pm Post subject: |
|
|
|
Yup, still a short. Still reads 0 with the board in.
|
|
| Back to top |
|
|
macgyver655
Joined: 22 Aug 2007
Posts: 8508
|
| Posted: Thu Mar 12, 2015 12:12 am Post subject: |
|
|
|
Take the board back out. Verify that regulator id on the board is ic20, which it should be. If it is, then locate C84 in that board. Should be right near that reg.. Do a diode test across it and give me the readings.
|
|
| Back to top |
|
|
Nashou66
Joined: 12 Jan 2007
Posts: 16171
Location: West Seneca NY
|
|
| Back to top |
|
|
Luuk neele
Joined: 04 Mar 2015
Posts: 186
Location: Wijk bij duurstede, the Netherlands.
|
| Posted: Thu Mar 12, 2015 12:26 am Post subject: |
|
|
|
Cleaned the pads, no bridge. Still a short. I'll do the diode test tomorrow. Thanks so far everyone.
|
|
| Back to top |
|
|
Luuk neele
Joined: 04 Mar 2015
Posts: 186
Location: Wijk bij duurstede, the Netherlands.
|
| Posted: Thu Mar 12, 2015 8:37 pm Post subject: |
|
|
| macgyver655 wrote: | | Take the board back out. Verify that regulator id on the board is ic20, which it should be. If it is, then locate C84 in that board. Should be right near that reg.. Do a diode test across it and give me the readings. |
diode reads 0, and in continuity mode the meter goes "beep" so its a short
|
|
| Back to top |
|
|
macgyver655
Joined: 22 Aug 2007
Posts: 8508
|
| Posted: Thu Mar 12, 2015 8:44 pm Post subject: |
|
|
|
You verified it is ic20 that is removed? And you are testing on capacitor C84?
|
|
| Back to top |
|
|
Luuk neele
Joined: 04 Mar 2015
Posts: 186
Location: Wijk bij duurstede, the Netherlands.
|
| Posted: Thu Mar 12, 2015 9:00 pm Post subject: |
|
|
|
yes, i removed ic20. (the one that came off the board) and i verified that the cap i tested is c84. it reads: "0"
|
|
| Back to top |
|
|
|
|
