| Posted: Sat Feb 21, 2015 12:55 am Post subject: Pis of re-tubing my Sony 1252Q |
|
|
Thought I would share these. Even tough it seemed a bit daunting at first, putting in the new tubes turned out to be a fun project. If the PJ hadn't worked after what I had done then not so fun.
| Description: |
|
| Filesize: |
123.9 KB |
| Viewed: |
8550 Time(s) |
|
|
|
| Back to top |
|
 |
Audio_Geek_00
Joined: 07 Aug 2014
Posts: 82
Location: SF Bay Area
|
| Posted: Sat Feb 21, 2015 12:57 am Post subject: Re-tubing |
|
|
Nice and shiny!
| Description: |
|
| Filesize: |
129.6 KB |
| Viewed: |
8549 Time(s) |
|
|
|
| Back to top |
|
|
Audio_Geek_00
Joined: 07 Aug 2014
Posts: 82
Location: SF Bay Area
|

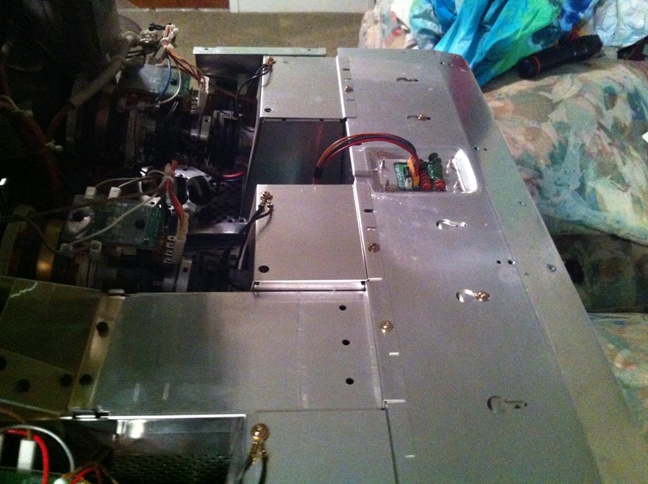

| Posted: Sat Feb 21, 2015 12:59 am Post subject: re-tube |
|
|
What a ball buster to get this down without adding more repair work. it was more of a controlled drop than anything.
| Description: |
|
| Filesize: |
109.93 KB |
| Viewed: |
8548 Time(s) |
|
|
|
| Back to top |
|
|
Audio_Geek_00
Joined: 07 Aug 2014
Posts: 82
Location: SF Bay Area
|
| Posted: Sat Feb 21, 2015 1:00 am Post subject: re-tube |
|
|

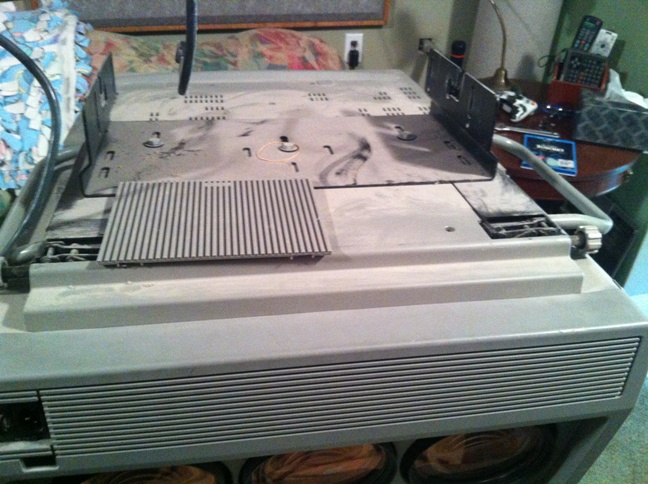

No wonder I've been sneezing.
| Description: |
|
| Filesize: |
142.16 KB |
| Viewed: |
8547 Time(s) |
|
|
|
| Back to top |
|
|
Audio_Geek_00
Joined: 07 Aug 2014
Posts: 82
Location: SF Bay Area
|

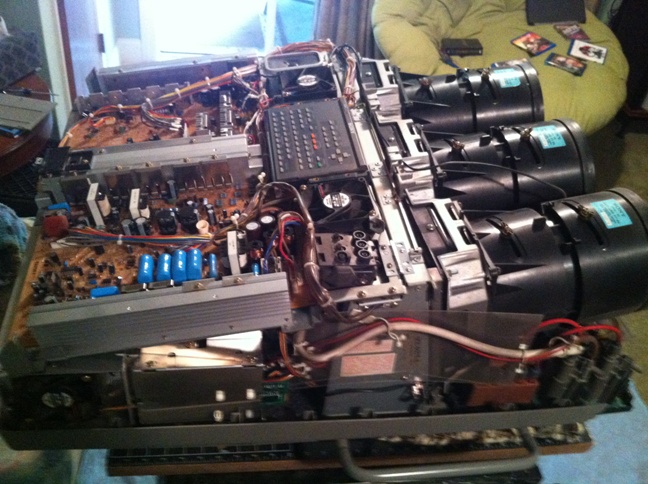

| Posted: Sat Feb 21, 2015 1:03 am Post subject: re-tube |
|
|
I have to admit when I took off the covers I got intimidated again. Fortunately the manual shows how to remove what to get out the tubes out. The chassis looks like a nightmare but it is made to be serviced with very few screws need removal (except the video boards and heat sinks).
| Description: |
|
| Filesize: |
150.37 KB |
| Viewed: |
8545 Time(s) |
|
|
|
| Back to top |
|
|
Audio_Geek_00
Joined: 07 Aug 2014
Posts: 82
Location: SF Bay Area
|
| Posted: Sat Feb 21, 2015 1:06 am Post subject: re-tube |
|
|

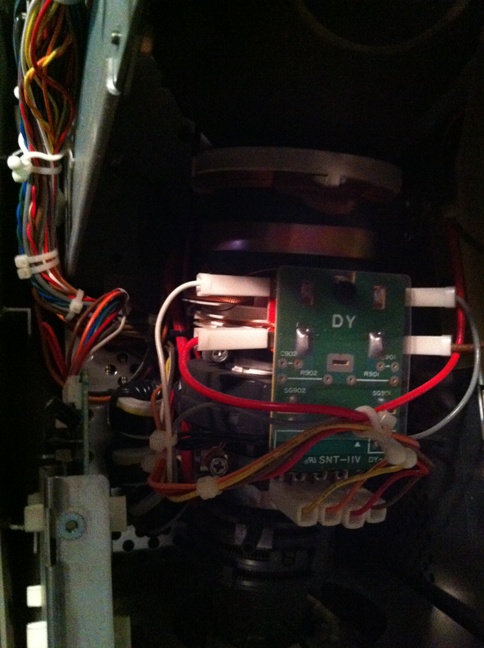

I took pictures of everything I would be taking apart so that I had a handy reference. Especially handy when dealing with cables and such. This is the green gun.
| Description: |
|
| Filesize: |
115.87 KB |
| Viewed: |
8542 Time(s) |
|
|
|
| Back to top |
|
|
Audio_Geek_00
Joined: 07 Aug 2014
Posts: 82
Location: SF Bay Area
|

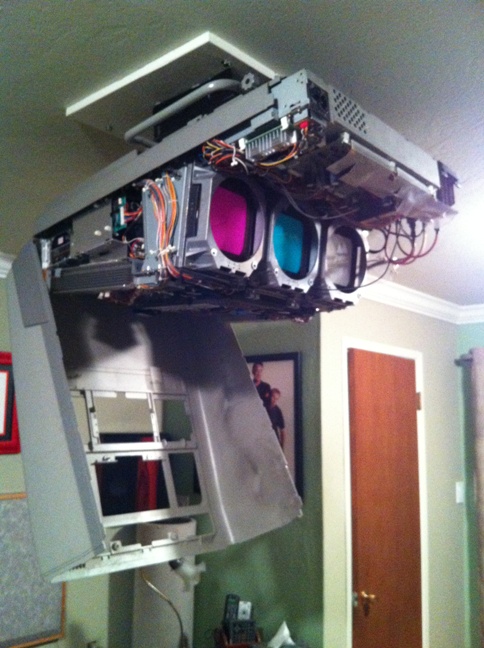

| Posted: Sat Feb 21, 2015 1:08 am Post subject: re-tube |
|
|

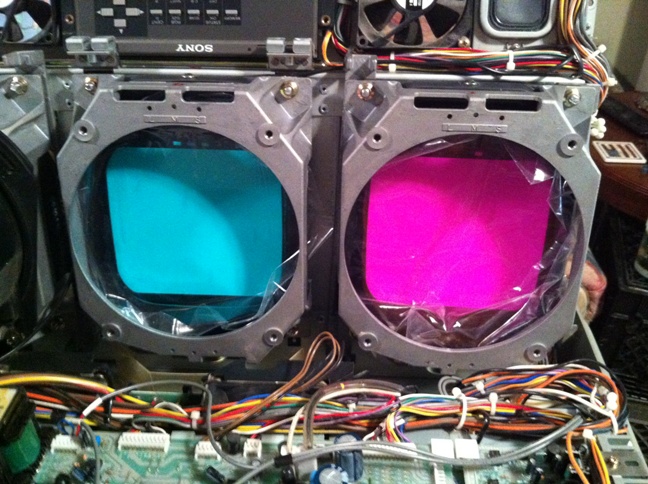

Lenses' out. I should have done this before I took the PJ off of the ceiling. It takes about 35lbs off.
| Description: |
|
| Filesize: |
121.47 KB |
| Viewed: |
8540 Time(s) |
|
|
|
| Back to top |
|
|
Audio_Geek_00
Joined: 07 Aug 2014
Posts: 82
Location: SF Bay Area
|

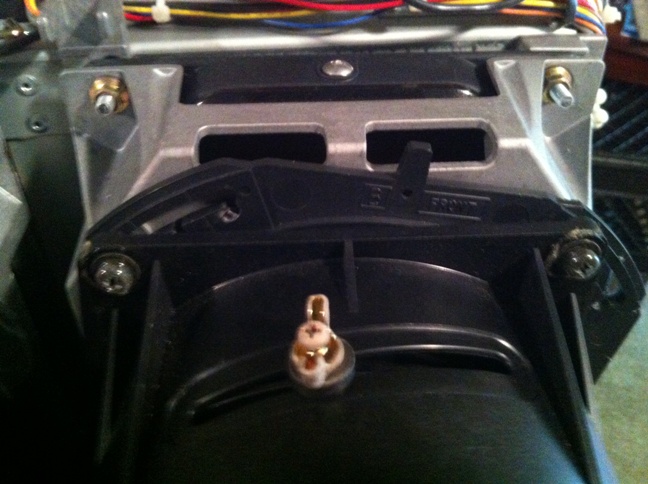

| Posted: Sat Feb 21, 2015 1:10 am Post subject: re-tube |
|
|
Getting my nerve up to disconnect the yoke harnesses from the tubes.
| Description: |
|
| Filesize: |
134.37 KB |
| Viewed: |
8530 Time(s) |
|
|
|
| Back to top |
|
|
Audio_Geek_00
Joined: 07 Aug 2014
Posts: 82
Location: SF Bay Area
|

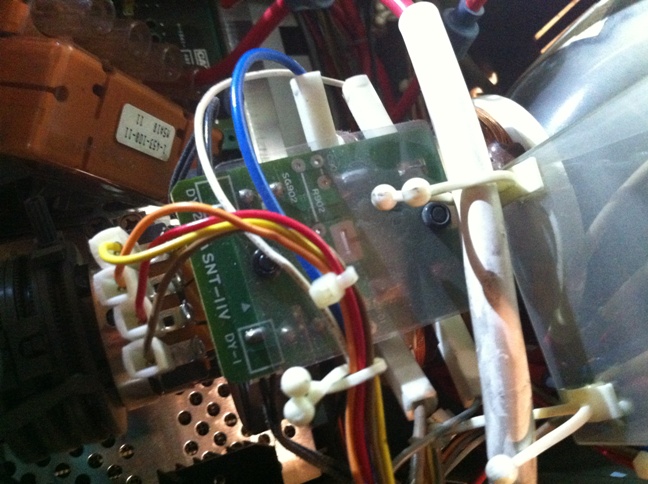

| Posted: Sat Feb 21, 2015 1:11 am Post subject: re-tube |
|
|
Don't get the colors mixed up.
| Description: |
|
| Filesize: |
107.88 KB |
| Viewed: |
8529 Time(s) |
|
|
|
| Back to top |
|
|
Audio_Geek_00
Joined: 07 Aug 2014
Posts: 82
Location: SF Bay Area
|
| Posted: Sat Feb 21, 2015 1:13 am Post subject: re-tube |
|
|
They follow the same logic on all three tubes.
| Description: |
|
| Filesize: |
133.59 KB |
| Viewed: |
8527 Time(s) |
|
|
|
| Back to top |
|
|
Audio_Geek_00
Joined: 07 Aug 2014
Posts: 82
Location: SF Bay Area
|

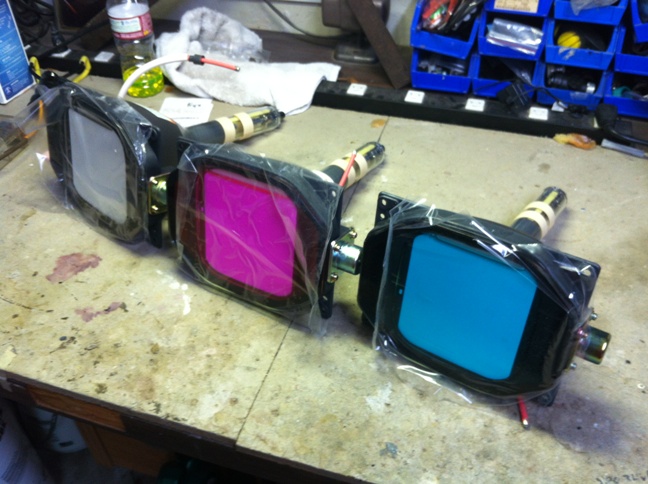

| Posted: Sat Feb 21, 2015 1:16 am Post subject: re-tube |
|
|
Tubes are out. I got really nervous at this point. I wasn't sure how badly I could screw this up but there looked like a lot of opportunity. I was worried I'd break something trying to remove the yoke assembly. The old tape didn't want to let go. But it is not quite as fragile as I thought and I was able to persuade them to come off.
| Description: |
|
| Filesize: |
113.81 KB |
| Viewed: |
8525 Time(s) |
|
|
|
| Back to top |
|
|
Audio_Geek_00
Joined: 07 Aug 2014
Posts: 82
Location: SF Bay Area
|

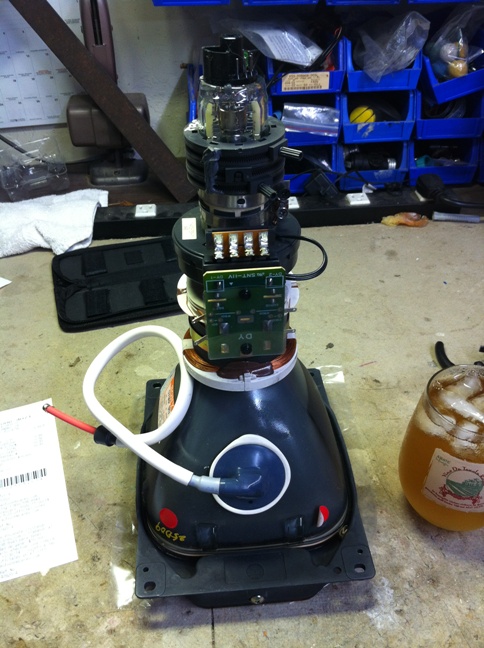

| Posted: Sat Feb 21, 2015 1:18 am Post subject: re-tube |
|
|

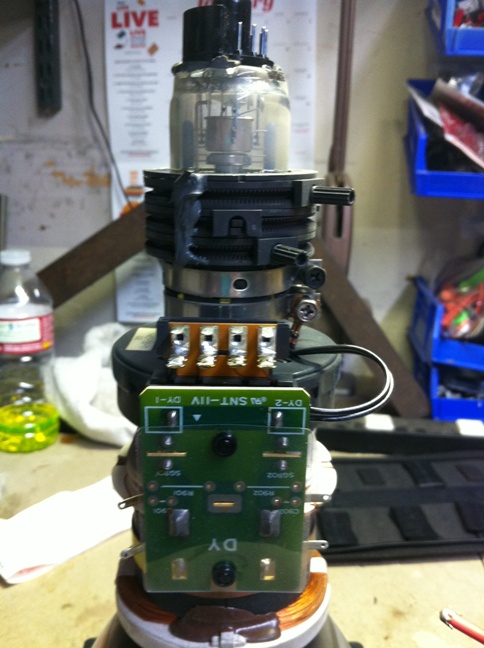

Yoke assemblies transferred to the new tubes.
| Description: |
|
| Filesize: |
140.42 KB |
| Viewed: |
8525 Time(s) |
|
|
|
| Back to top |
|
|
Audio_Geek_00
Joined: 07 Aug 2014
Posts: 82
Location: SF Bay Area
|
| Posted: Sat Feb 21, 2015 1:19 am Post subject: re-tube |
|
|
Tube assemblies re-installed.
| Description: |
|
| Filesize: |
161.28 KB |
| Viewed: |
8523 Time(s) |
|
|
|
| Back to top |
|
|
Audio_Geek_00
Joined: 07 Aug 2014
Posts: 82
Location: SF Bay Area
|

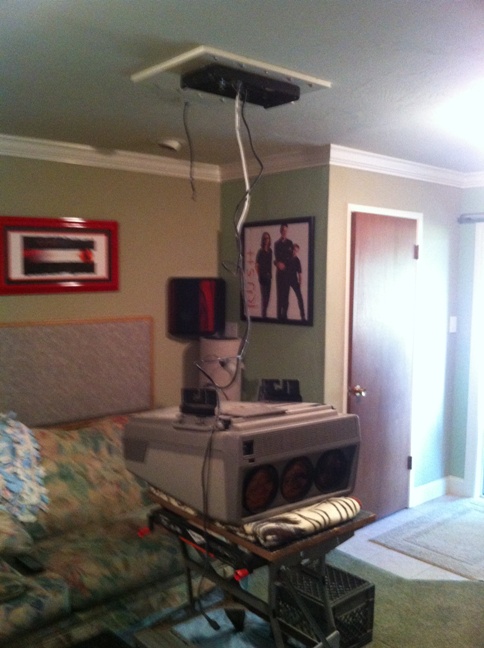

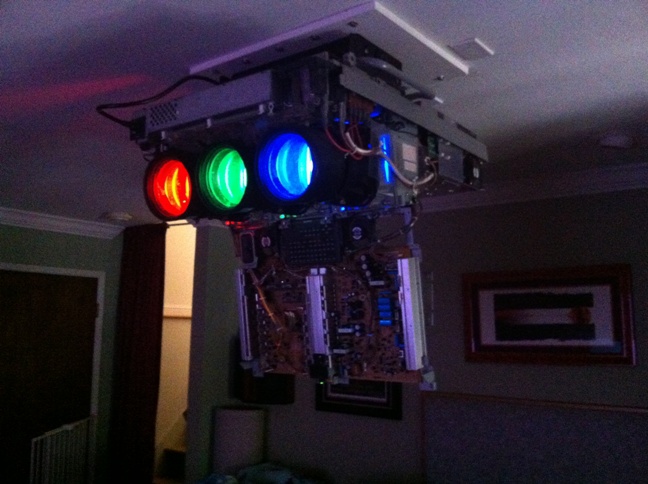

| Posted: Sat Feb 21, 2015 1:22 am Post subject: re-tube |
|
|
Back on the ceiling. Not having the lenses installed help tremendously, although it adds difficulty putting the lenses in.
| Description: |
|
| Filesize: |
130.44 KB |
| Viewed: |
8522 Time(s) |
|
|
|
| Back to top |
|
|
Audio_Geek_00
Joined: 07 Aug 2014
Posts: 82
Location: SF Bay Area
|

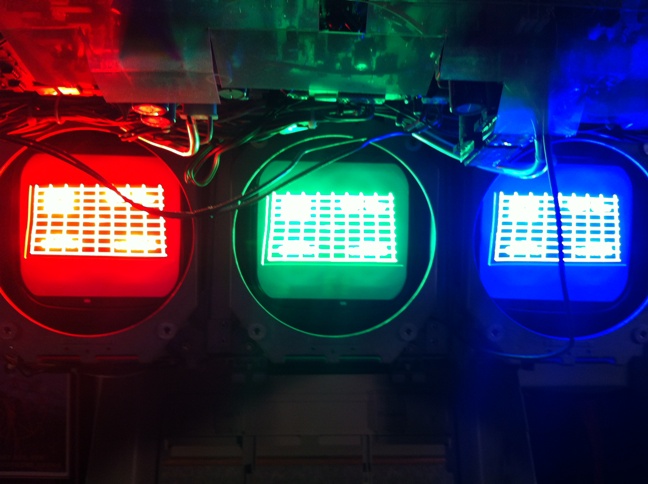

| Posted: Sat Feb 21, 2015 1:23 am Post subject: re-tube |
|
|

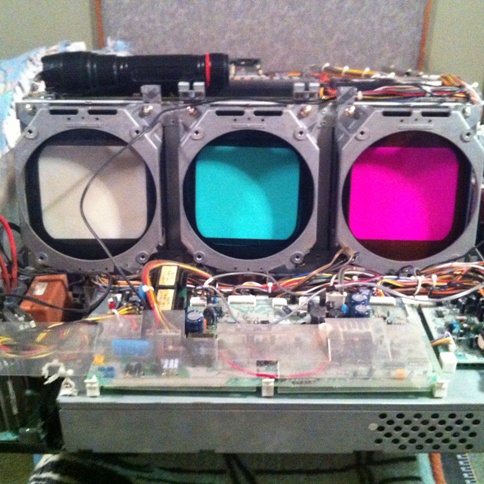

Raster adjustment.
| Description: |
|
| Filesize: |
107.99 KB |
| Viewed: |
8521 Time(s) |
|
|
|
| Back to top |
|
|
Audio_Geek_00
Joined: 07 Aug 2014
Posts: 82
Location: SF Bay Area
|
| Posted: Sat Feb 21, 2015 1:28 am Post subject: re-tube |
|
|
Lenses installed. Now the real fun begins. I used the CRT setup video to go through my PJ. I did OK but feel like it could be better. But overall I'm really happy with the added clarity and brightness. It perked the ole girl up a bit for not much money at all. Consider doing it if you can get a new set of tubes at a good price. It makes a worthwhile difference.
Best
Tim
| Description: |
|
| Filesize: |
113.26 KB |
| Viewed: |
8519 Time(s) |
|
|
|
| Back to top |
|
|
