As this forum is rarely used anymore, we've locked it. Feel free to browse and read. Questions? Please reach out to us directly. Cheers! |
|
 |
|
|
| Author |
Message |
Nashou66
Joined: 12 Jan 2007
Posts: 16171
Location: West Seneca NY
|
| Posted: Tue Dec 16, 2014 6:51 pm Post subject: |
|
|
| stridsvognen wrote: | | Nice patterns, if i should have a wish its one where you only have low level patterns in it, like op to 20 or 30% for not washing out the 2% pattern. |
I was thinking he could reduce the corner patterns to a lower % , like 25 %, left top, 50 % right top, 75% bottom left
and 100% bottom right.
This way we see the two left ones in the x5% range.
A second one would be go to 5% intervals after 10%.
For that version the patterns could be smaller in size as well.
Aslo on the version you made last remove the border on the luma ramp please. what you can do to signify
the 16 level black is put two small white dots marking it above and below the pattern. That can be done on the white side with black dots marking 235 level white in the pattern. maybe put the 16 level white dots in the ramp as well not above and below.
Athanasios
_________________
Don't blame your underwear for your crooked ass~ unknown Greek philosopher
"Republicans believe every day is the Fourth of July, but the Democrats believe every day is April 15." --- President Reagan
One Smart Dog!!!
Marquee High Performance Bellows now shipping!!
Marquee Modifications and Performance Enhancement
Marquee C-element and Bellow removal
|
|
| Back to top |
|
 |
stridsvognen
Guest
|
| Posted: Tue Dec 16, 2014 6:56 pm Post subject: |
|
|
| Nashou66 wrote: | | stridsvognen wrote: | | Nice patterns, if i should have a wish its one where you only have low level patterns in it, like op to 20 or 30% for not washing out the 2% pattern. |
I was thinking he could reduce the corner patterns to a lower % , like 25 %, left top, 50 % right top, 75% bottom left
and 100% bottom right.
This way we see the two left ones in the x5% range.
A second one would be go to 5% intervals after 10%.
For that version the patterns could be smaller in size as well.
Athanasios |
Ill like it to stay below 30% all around, it would be a good way to take a really good look at 1:1 at low level, to see if the signal is clean and undistorted. And use it as a G2 setup pattern to.
For me these patterns is realy nice when i play with the MP mods, and try different components myself.
They will look quite bad on any standard CRT.
Try run them on a digital projector/ flat panel, and see what happens.
|
|
| Back to top |
|
|
Nashou66
Joined: 12 Jan 2007
Posts: 16171
Location: West Seneca NY
|
|
| Back to top |
|
|
Nashou66
Joined: 12 Jan 2007
Posts: 16171
Location: West Seneca NY
|
| Posted: Tue Dec 16, 2014 6:58 pm Post subject: |
|
|
| stridsvognen wrote: | | Nashou66 wrote: | | stridsvognen wrote: | | Nice patterns, if i should have a wish its one where you only have low level patterns in it, like op to 20 or 30% for not washing out the 2% pattern. |
I was thinking he could reduce the corner patterns to a lower % , like 25 %, left top, 50 % right top, 75% bottom left
and 100% bottom right.
This way we see the two left ones in the x5% range.
A second one would be go to 5% intervals after 10%.
For that version the patterns could be smaller in size as well.
Athanasios |
Ill like it to stay below 30% all around, it would be a good way to take a really good look at 1:1 at low level, to see if the signal is clean and undistorted. And use it as a G2 setup pattern to.
For me these patterns is realy nice when i play with the MP mods, and try different components myself.
They will look quite bad on any standard CRT.
Try run them on a digital projector/ flat panel, and see what happens. |
That could be another pattern, called the One to One pluge
I would do 30 on each end and move inward with lower % whites in 5% incriments and the 2% in the middle.
Nashou
_________________
Don't blame your underwear for your crooked ass~ unknown Greek philosopher
"Republicans believe every day is the Fourth of July, but the Democrats believe every day is April 15." --- President Reagan
One Smart Dog!!!
Marquee High Performance Bellows now shipping!!
Marquee Modifications and Performance Enhancement
Marquee C-element and Bellow removal
|
|
| Back to top |
|
|
stridsvognen
Guest
|
| Posted: Tue Dec 16, 2014 7:02 pm Post subject: |
|
|
| Nashou66 wrote: | | stridsvognen wrote: | | Nashou66 wrote: | | stridsvognen wrote: | | Nice patterns, if i should have a wish its one where you only have low level patterns in it, like op to 20 or 30% for not washing out the 2% pattern. |
I was thinking he could reduce the corner patterns to a lower % , like 25 %, left top, 50 % right top, 75% bottom left
and 100% bottom right.
This way we see the two left ones in the x5% range.
A second one would be go to 5% intervals after 10%.
For that version the patterns could be smaller in size as well.
Athanasios |
Ill like it to stay below 30% all around, it would be a good way to take a really good look at 1:1 at low level, to see if the signal is clean and undistorted. And use it as a G2 setup pattern to.
For me these patterns is realy nice when i play with the MP mods, and try different components myself.
They will look quite bad on any standard CRT.
Try run them on a digital projector/ flat panel, and see what happens. |
That could be another pattern, called the One to One pluge
I would do 30 on each end and move inward with lower % whites in 5% incriments and the 2% in the middle.
Nashou |
Ohh and patterns with secondary colors, and i think a gold pattern would fit the season.
ecrabb... would you be interested in a job as pattern generator.? Wonder if any of those patterns can be uploadet to the Croma pattern generator.
|
|
| Back to top |
|
|
ecrabb
Forum Moderator
Joined: 13 Mar 2006
Posts: 15909
Location: Utah
TV/Projector: JVC RS40, Epson 5010
|
| Posted: Wed Dec 17, 2014 4:41 am Post subject: |
|
|
| stridsvognen wrote: | | ecrabb... would you be interested in a job as pattern generator.? |
Depends on the salary.
Hey, guys... Lots of ideas flying around. I don't mind a little "scope creep", but I don't want to take what could just be an idea as direction, or dismiss anything that's crucial or important. So...
Can one of you guys sort of "lead" and take this last round of discussion and put it into a couple of specific specs so we can finalize at least this pattern? What I'm getting it is to hash out the ideas (ala "I was thinking..."), agree on what exactly you want, and then I'll build it.
Maybe we could then turn this into a discussion on other types of patterns we'd all like, variations, colors, etc., then we could even build a list and turn it into a whole set of patterns. What patterns are you missing to set up your system?
SC
|
|
| Back to top |
|
|
Nashou66
Joined: 12 Jan 2007
Posts: 16171
Location: West Seneca NY
|
| Posted: Wed Dec 17, 2014 6:09 am Post subject: |
|
|
| ecrabb wrote: | | stridsvognen wrote: | | ecrabb... would you be interested in a job as pattern generator.? |
Depends on the salary.
Hey, guys... Lots of ideas flying around. I don't mind a little "scope creep", but I don't want to take what could just be an idea as direction, or dismiss anything that's crucial or important. So...
Can one of you guys sort of "lead" and take this last round of discussion and put it into a couple of specific specs so we can finalize at least this pattern? What I'm getting it is to hash out the ideas (ala "I was thinking..."), agree on what exactly you want, and then I'll build it.
Maybe we could then turn this into a discussion on other types of patterns we'd all like, variations, colors, etc., then we could even build a list and turn it into a whole set of patterns. What patterns are you missing to set up your system?
SC |
Ok i'll take over while they are sleeping
| Quote: | Aslo on the version you made last remove the border on the luma ramp please. what you can do to signify
the 16 level black is put two small white dots marking it above and below the pattern. That can be done on the white side with black dots marking 235 level white in the pattern. maybe put the 16 level white dots in the ramp as well not above and below. |
And do the reduced brightness of the corner patterns. top left start at 25%, then top right at 50%, bottom left 75%, and bottom right at 100%.
And on the 1.78 pattern maybe there add the 2.35 and 2.4 aspect ratio markers on the cross hatch you have .
that should do it
_________________
Don't blame your underwear for your crooked ass~ unknown Greek philosopher
"Republicans believe every day is the Fourth of July, but the Democrats believe every day is April 15." --- President Reagan
One Smart Dog!!!
Marquee High Performance Bellows now shipping!!
Marquee Modifications and Performance Enhancement
Marquee C-element and Bellow removal
|
|
| Back to top |
|
|
stridsvognen
Guest
|
| Posted: Wed Dec 17, 2014 3:22 pm Post subject: |
|
|
|
The patterns you made now are fine as a test/ evaluation tool, if you like to continue later on a low level version would be nice, and maybe a inverted one with 100%white background.
|
|
| Back to top |
|
|
redfox001
Joined: 16 Mar 2009
Posts: 2257
Location: The Netherlands
|
| Posted: Wed Dec 17, 2014 11:49 pm Post subject: |
|
|
I am still missing good focus patterns on png or so. I have to start windows and these nec/nokia programs for that. If I had dots and H's I would be happy.
_________________
701s->runco933->8500ultra->cinemax->9500mp->919 splitpack + cinemax
|
|
| Back to top |
|
|
ecrabb
Forum Moderator
Joined: 13 Mar 2006
Posts: 15909
Location: Utah
TV/Projector: JVC RS40, Epson 5010
|
| Posted: Fri Dec 19, 2014 10:15 pm Post subject: |
|
|

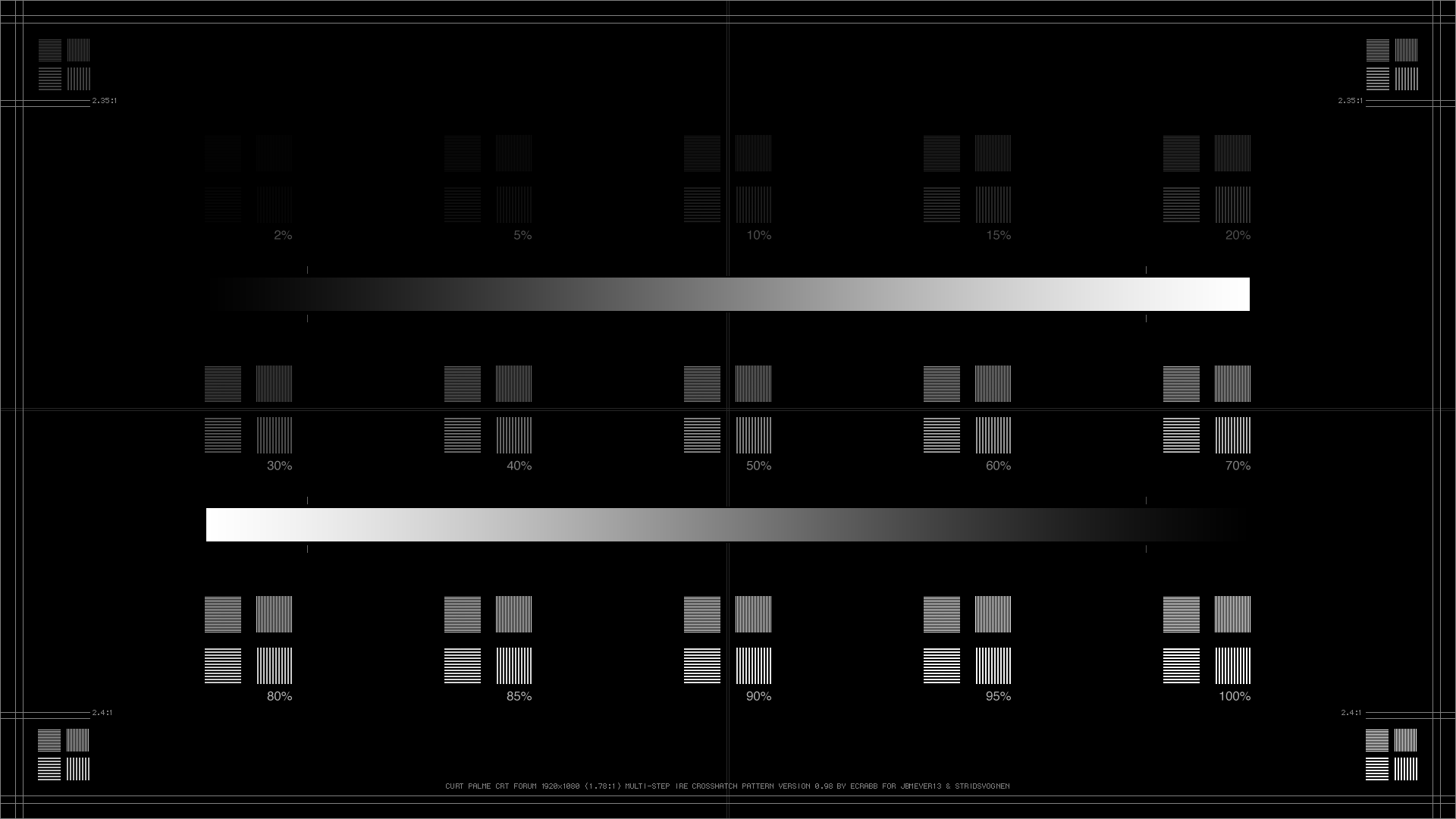

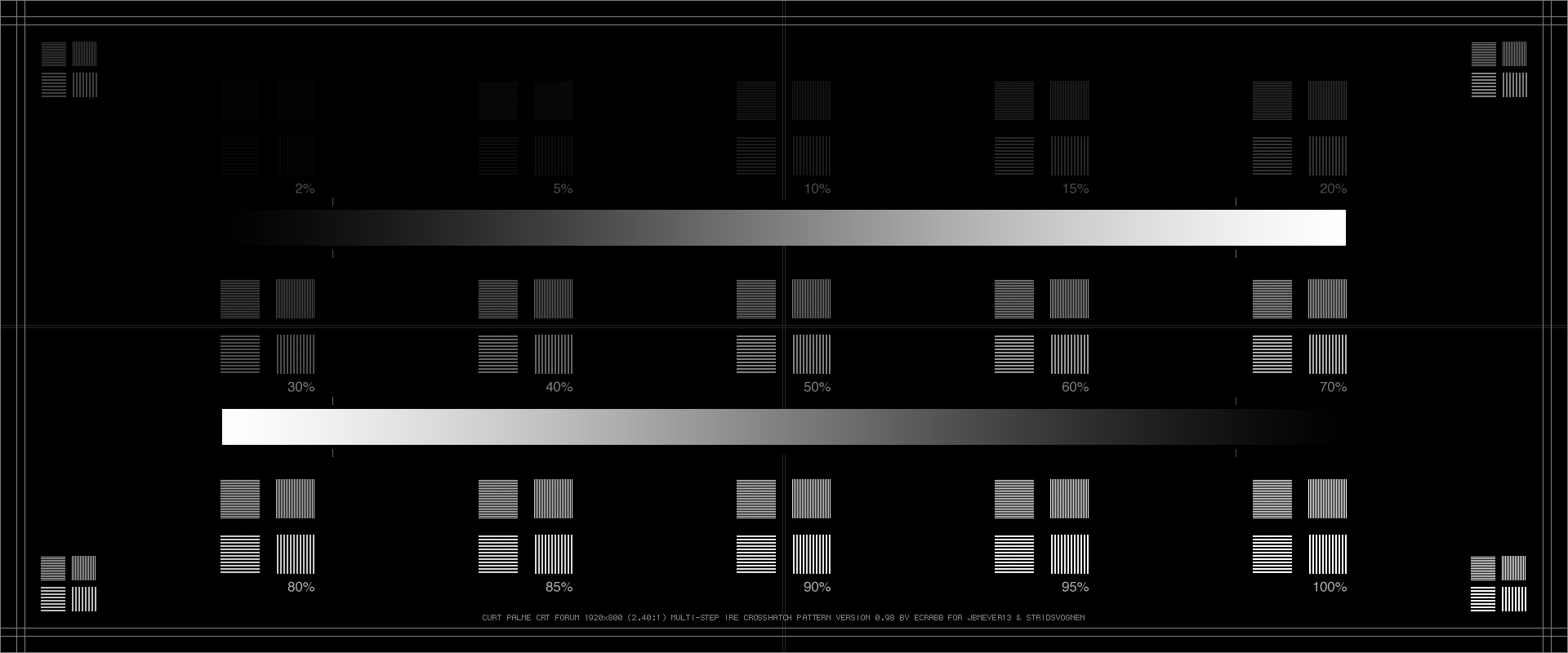

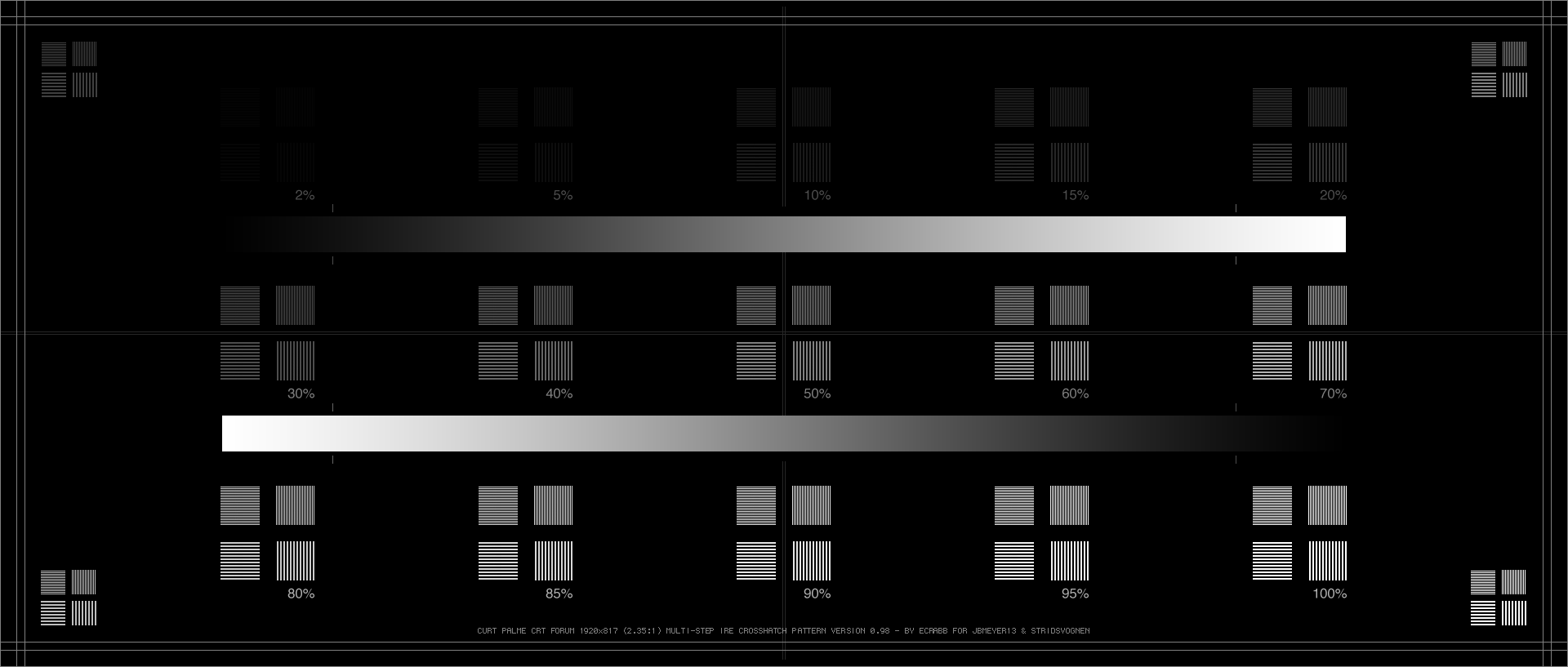

Here's version .98 with the latest round of requested changes. No doubt I've forgot something.
Cheers,
SC
| Description: |
|
| Filesize: |
31.72 KB |
| Viewed: |
7570 Time(s) |
|
| Description: |
|
| Filesize: |
29.37 KB |
| Viewed: |
7570 Time(s) |
|
| Description: |
|
| Filesize: |
29.12 KB |
| Viewed: |
7570 Time(s) |
|
|
|
| Back to top |
|
|
Nashou66
Joined: 12 Jan 2007
Posts: 16171
Location: West Seneca NY
|
|
| Back to top |
|
|
stridsvognen
Guest
|
| Posted: Sat Dec 20, 2014 5:53 pm Post subject: |
|
|
Nash.. Show us how this new pattern looks on the blend..
|
|
| Back to top |
|
|
stridsvognen
Guest
|
| Posted: Tue Dec 23, 2014 12:04 am Post subject: |
|
|
|
If nobody else want to post any shots, i have one here from my MP special 02VIM.
|
|
| Back to top |
|
|
|
|
|
|
|
