| jbmeyer13 wrote: | | My BD player is a Samsung BD-6900. I'm going to try the bmp version later tonight and will report back. |
You might be up the creek, Justin. Unless other formats are supported, but undocumented, the only image format it specifically says in the manual it supports is JPG. I tried saving out a max quality JPG, and it adds a significant amount of crap to the image, though it'll probably all be imperceptible on a CRT, and possible even a digital with gamma cranked up. It's not ideal, but it should work fine, I'd think.
Cheers,
SC
|
|
| Back to top |
|
 |
Nashou66
Joined: 12 Jan 2007
Posts: 16171
Location: West Seneca NY
|
|
| Back to top |
|
|
stridsvognen
Guest
|
| Posted: Sun Dec 14, 2014 1:39 am Post subject: |
|
|
Here is another one.
JVC RS50
|
|
| Back to top |
|
|
CasetheCorvetteman
Joined: 09 Nov 2008
Posts: 6326
Location: Australia
|
| Posted: Sun Dec 14, 2014 2:22 am Post subject: |
|
|
Kurt is it the angle of the photo that causes the lower IRE 1-1 parts to look darker there?
_________________
Barco Cine 9, ,Sony VPL570ES 4K SXRD, 135" OZ Theatre Majestic 16:9 screen, Denon X6700in preamp mode, 2x 7ch Tonewinner amps, 2x Tonewinner 15" subs, 2x 10" subs, 7.2.6...
RUNCO DTV991 LC ( NEC XG 852 LC ) 100" 4:3 screen, H/K AVR 7.1...
|
|
| Back to top |
|
|
gjaky
Joined: 05 Jun 2010
Posts: 2802
Location: Budapest, Hungary
|
| Posted: Sun Dec 14, 2014 7:54 am Post subject: |
|
|

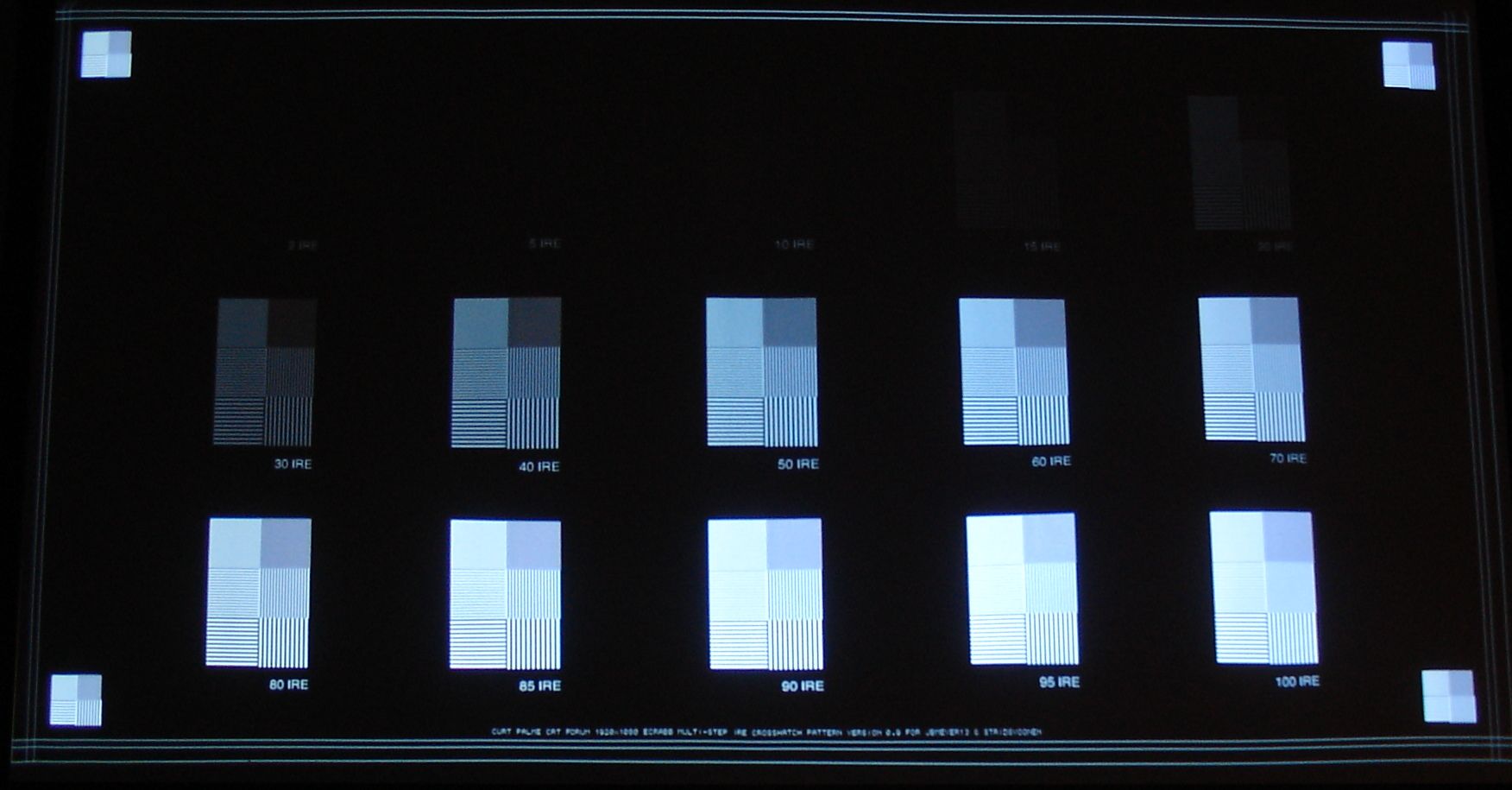

Ok, just as expected, my NEC XG at 1080i-96Hz (125MHz pixel clock)
