It's like a Barco, there's too much pin or key top and bottom. Try backing off on those towards the 50% mark and see which one causes the line to go away.

Z-Photo · Posted: Wed Dec 13, 2006 4:32 pm Post subject:

Curt-

AAAAAHHHHHHHHH
We will have to ban you from your own website for a remark like that.
the nerve. Smile

**AnalogRocks** · Posted: Wed Dec 13, 2006 4:33 pm Post subject:

Z-Photo · Posted: Wed Dec 13, 2006 4:36 pm Post subject:

No (not a secret) - He compared a Barco to an (gasp) Ampro.

I am now so upset that I may have to leave work. Smile

**AnalogRocks** · Posted: Wed Dec 13, 2006 4:53 pm Post subject:

stefuel · Posted: Thu Dec 14, 2006 2:51 am Post subject:

**AnalogRocks** · Posted: Thu Dec 14, 2006 6:06 am Post subject:

**AnalogRocks** · Posted: Fri Dec 15, 2006 12:24 am Post subject:

Ok this horizontal black line is bugging me. It COMPLETELY disappears when I turn of the registration (55 CODE). I tried resetting the channel to 50% across the board but it didn't help. Even with all the Key and pin at 50% there's a black line across the picture.

Incova sent me this:

tse · Joined: 03 May 2006 Posts: 1014 Location: Sweatbucket, Fl.

Which registration bd do you have? There should be a little sticker with a 8XXXX number on it. I might be able to find something on it. There probably is a pot to adjust.

Scott

**AnalogRocks** · Posted: Fri Dec 15, 2006 4:43 am Post subject:

**AnalogRocks** · Posted: Sat Dec 16, 2006 5:37 pm Post subject:

OK Scott, the number is 80833. The 65298 REV A on the circuit board and beside the 80XXX sticker there's a 2nd sticker that says 5309-07.

Thanks.

Let me just make sure this is the right board Scott. It's the one right next to the power supplies?? It has two little pots on the back for the vertical postioning of the red and blue rasters. Is this the right board?

**Curt Palme** · Posted: Sat Dec 16, 2006 5:58 pm Post subject:

Let me send you a new reggie board and the convergence output board. Email me the two numbers (6XXXX) to my home address. I didn't see the issue here, but I didn't see the HVPS/LVPS ones either.. Smile

tse · Joined: 03 May 2006 Posts: 1014 Location: Sweatbucket, Fl.

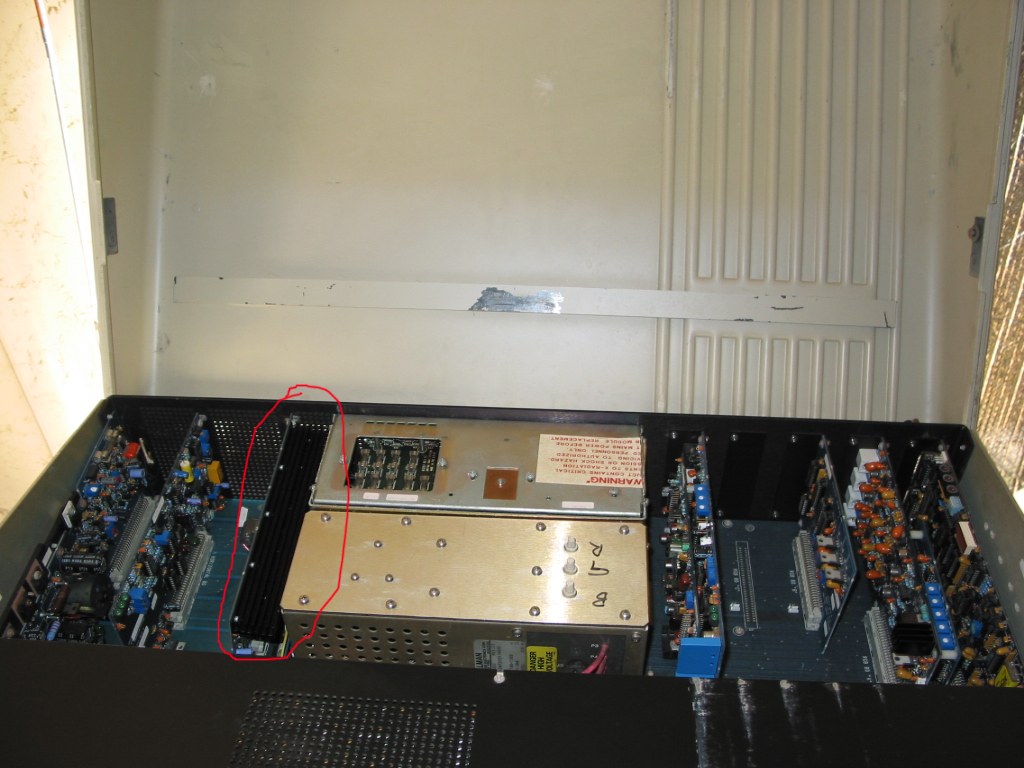

The board that is circled is the vertical deflection. Your registration bd is in the big black box toward the front of the pj. It sounds like Curt is going to help you out. That's your best bet. These old projectors will come up with problems when you start using them after they sit unused for a while. Once all the problems are worked out they should work fine for a long time.

Scott

**AnalogRocks** · Posted: Sat Dec 16, 2006 11:03 pm Post subject:

Ok thanks for the clarification Scott. I was going by the 4600 layout tips on the website.

Hey Curt, you ever going to do a board labeling picture for the 4000? It would make things a little easier for me. Smile

Ok I'll make things easier for you. Can you please fill in the blanks 1, 2 and 3?

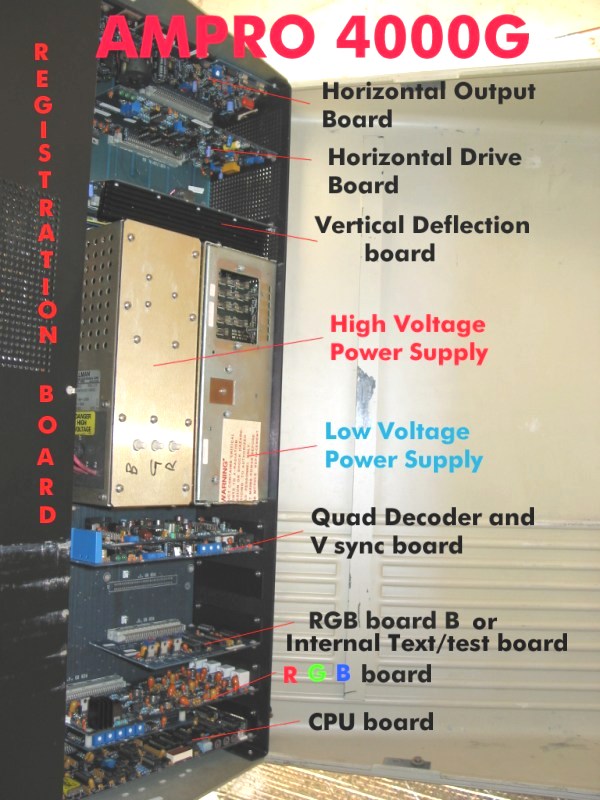

EDIT: Here's the updated pic for reference

stefuel · Posted: Sat Dec 16, 2006 11:51 pm Post subject:

Yo Anie

Look at the mother board where the socket is. They are labled Wink

**AnalogRocks** · Posted: Sun Dec 17, 2006 1:07 am Post subject:

DOH!! I have the projector high up on a cart. I took that picture while balancing on a chair. LOL I'll have to make some stilts. Thank's for the tip Chip.

Suddenly I feel like singing "It's a small world after all" Wink

**AnalogRocks** · Posted: Sun Dec 17, 2006 1:34 am Post subject:

One more thing. I think it might be cable related. I get fast horizontal lines that roll up the picture quikly. They change thickness when I went from 60Hz to 72. Is this a cabling problem?

**Curt Palme** · Posted: Sun Dec 17, 2006 2:41 am Post subject:

That might be a ground loop. Try lifting (breaking) the ground pin off the Ac cord and see if they go away.

**AnalogRocks** · Posted: Sun Dec 17, 2006 3:24 am Post subject:

Ahh I was thinking maybe a ground loop. I'll try that.
