It would matter if R2 was suppose to be 47 ohms. But we're not sure if the prints we have are correct. Are you sure your R2 originally had a 270k resistor? I dont have a supply of that model number to check.
|
|
| Back to top |
|
 |
macgyver655
Joined: 22 Aug 2007
Posts: 8508
|
| Posted: Mon Jun 13, 2011 5:19 pm Post subject: |
|
|
|
Does your board have an R94 location?
|
|
| Back to top |
|
|
Nashou66
Joined: 12 Jan 2007
Posts: 16171
Location: West Seneca NY
|
|
| Back to top |
|
|
dvh99
Joined: 25 Dec 2009
Posts: 2158
Location: nederland
|
| Posted: Mon Jun 13, 2011 5:35 pm Post subject: |
|
|
r2 is 270k in my hvps, just checked.
_________________
1 answer always poses multiple questions.
marquee 9500ultra HD10L moome hdmi1.3 v3+ some mods.
|
|
| Back to top |
|
|
macgyver655
Joined: 22 Aug 2007
Posts: 8508
|
| Posted: Mon Jun 13, 2011 6:08 pm Post subject: |
|
|
| dvh99 wrote: | | r2 is 270k in my hvps, just checked. |
And yours is an X2294?
|
|
| Back to top |
|
|
dvh99
Joined: 25 Dec 2009
Posts: 2158
Location: nederland
|
| Posted: Mon Jun 13, 2011 6:36 pm Post subject: |
|
|
x2532
and 10-000310-02p issue 3 rev b3.
i cannot find r94 either.
_________________
1 answer always poses multiple questions.
marquee 9500ultra HD10L moome hdmi1.3 v3+ some mods.
|
|
| Back to top |
|
|
haireez
Joined: 14 Jun 2007
Posts: 207
Location: singapore
TV/Projector: Vidikron Vision 1 - Ultra
|
| Posted: Tue Jun 14, 2011 2:02 pm Post subject: |
|
|
Hi,

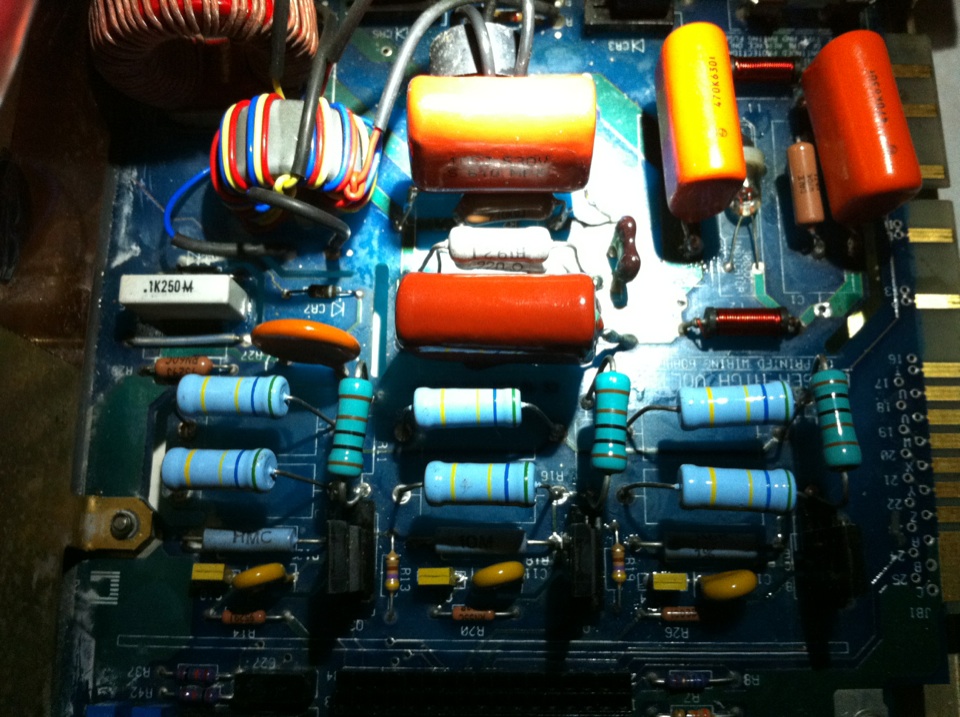

I can't find R94 on my HVPS either. Anyway, this is the photo as Athanasios request.
Curt,
I do not have any H board issues. Everyting is fine after replacing a spare HVPS.
| Description: |
|
| Filesize: |
244.03 KB |
| Viewed: |
3186 Time(s) |
|
|
|
| Back to top |
|
|
dvh99
Joined: 25 Dec 2009
Posts: 2158
Location: nederland
|
| Posted: Tue Jun 14, 2011 2:26 pm Post subject: |
|
|
are you sure you put the new caps in right?
i see 2 new reds and 2 new yellows.
if those reds have the same value and those yellow caps then they are placed wrong.
on the right side the caps should be 0.47uf / minimal 600volt
can`t remember the value from memory for the other caps.
_________________
1 answer always poses multiple questions.
marquee 9500ultra HD10L moome hdmi1.3 v3+ some mods.
|
|
| Back to top |
|
|
haireez
Joined: 14 Jun 2007
Posts: 207
Location: singapore
TV/Projector: Vidikron Vision 1 - Ultra
|
| Posted: Tue Jun 14, 2011 2:48 pm Post subject: |
|
|
Hi,
It's actually orange and brown colour. However due to reflection, it seem like 2 red & 2 yellow.
The 2 caps on the right is .47uf while the other 2 on the left is 1.0uf.
_________________
2 White Vision 1
|
|
| Back to top |
|
|
macgyver655
Joined: 22 Aug 2007
Posts: 8508
|
| Posted: Tue Jun 14, 2011 3:30 pm Post subject: |
|
|
At this point if you have verified you have all the correct parts in the correct places and still have a problem then you are going to have to test each part for value or function. You probably dont have to do the whole supply but without a exact print its hard to say specifically what you have to test and what you dont.
Add to that, even if you find 1 or more bad parts and the anomaly goes away, the supply should still be checked for actual output of both the G2 and Anode voltages or other serious problems can occur.
|
|
| Back to top |
|
|
mp20748
Joined: 12 Sep 2006
Posts: 5689
Location: Maryland
TV/Projector: 9500LC Ultra / Super 02 and 03 VIM
|
| Posted: Tue Jun 14, 2011 3:59 pm Post subject: |
|
|
It's really best to avoid playing around in the HVPS for the most part, because in changing out parts in certain areas of the unit, the components would normally be labeled:
Critical Safety Components
This is an area of the unit or most HV sections of these types of devices, that the components were chosen based on specific requirements. These requirements are safety and radiation related. And to add, that only certain types of resistors should be used in these circuits, because not all resistors are high voltage rated, and would break down and could cause tube damage.
The noise that's appears to be related to these circuits, is not coming from the resistors. The measured noise on the G2 lines to the CRT's are coming from the high voltage section inside the potted section of the unit. It is at the same rate (frequency) that drives the high voltage multiplying stage and transformer.
So if trying to lower the noise on the G2 lines, you would have to filter the G2 using beads and or inductors that's rated at the frequency of the pulse that drive the transformer.
The only time to replace the 560K resistors, is if they have changed in value.
the original 34.9K units had 560K carbon resistors in it. the upgraded version used ceramics. And they had a version after that, where they went back to carbon. Go figure.
|
|
| Back to top |
|
|
haireez
Joined: 14 Jun 2007
Posts: 207
Location: singapore
TV/Projector: Vidikron Vision 1 - Ultra
|
| Posted: Wed Jun 15, 2011 2:21 pm Post subject: |
|
|
Dear All,
I have actually upgraded another set of HVPS using the correct resistor and the improvements was pretty obvious. The picture looks cleaner and the black look better too. Overall, I'm pretty impressed with the picture quality and thanks to all of you.
However, I'm still sad that this HVPS problem is still not resolved yet. To send this unit for repair might not be the best solution as the shipping cost from Singapore to US and back to Singapore is too expensive.
_________________
2 White Vision 1
|
|
| Back to top |
|
|
dvh99
Joined: 25 Dec 2009
Posts: 2158
Location: nederland
|
|
| Back to top |
|
|
Curt Palme
CRT Tech
Joined: 08 Mar 2006
Posts: 24396
Location: Langley, BC
TV/Projector: All of them!
|
| Posted: Wed Jun 15, 2011 4:58 pm Post subject: |
|
|
|
It's possible that you damaged something in the potted area. If you can't get it going, I have a couple of Ultra HVPS here.. $350 plus shipping per HVPS.
|
|
