I just scrolled through the whole electrical parts list and PS302 is the only other fuse that has not been tested yet.
_________________
Chip
A Barco is only a AmPro with training wheels
Card carrying member of the AVS chain gang.
|
|
| Back to top |
|
 |
macgyver655
Joined: 22 Aug 2007
Posts: 8508
|
| Posted: Mon May 02, 2011 2:35 pm Post subject: |
|
|
| stefuel wrote: | | macgyver655 wrote: | | stefuel wrote: | | now I have to go search out PS302 on the AV board. |
It should be right off of CN205. I forget the pin number and it's on a different PC from where I am now. |
IT's pin 2 (-11V). It's pin 2 on the PS, AV and panel L board. It appears to go straight through with a brief pit stop at PS302. If I have continuity between pin 2 at the PS and pin 2 at the panel L board, PS302 and everything inbetween should be good. |

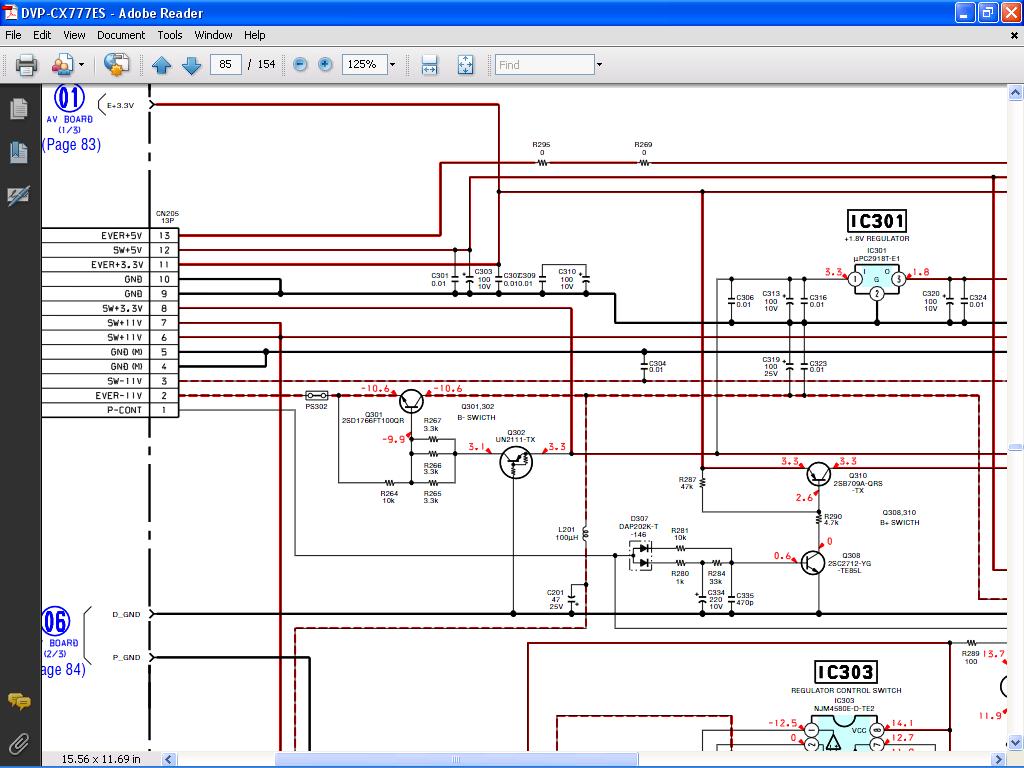

Nope, that wont work. There is a switch transistor in between. See schematic below.

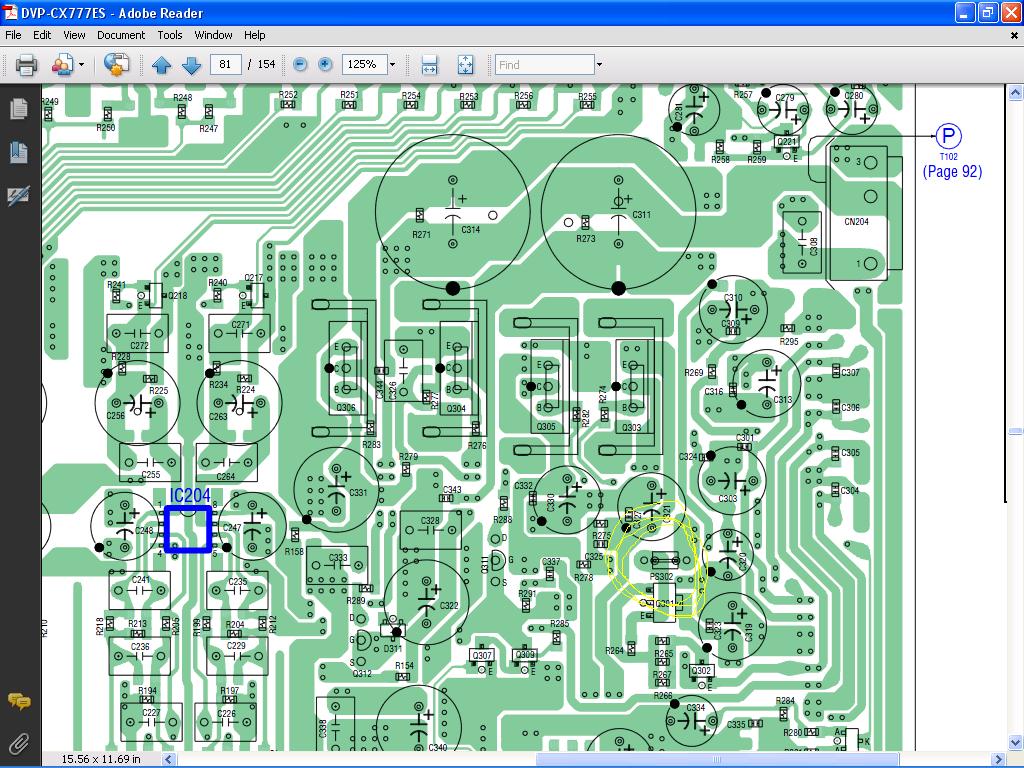

Also, you said in a PM that you can only see the back of the AV board and cant test that fuse. I also added a pic of the back of the board and circled the fuse location to test from there.
| Description: |
|
| Filesize: |
185.9 KB |
| Viewed: |
8792 Time(s) |
|
| Description: |
|
| Filesize: |
118.53 KB |
| Viewed: |
8792 Time(s) |
|
|
|
| Back to top |
|
|
stefuel
Joined: 07 Mar 2006
Posts: 3353
Location: Green Harbor MA USA
|
| Posted: Tue May 03, 2011 12:01 am Post subject: |
|
|
Well it isn't PS302. Power on both sides of it and power to the output connector on the AV board to the panel L board.
I also checked CN204 for power from the sub power transformer when the power board is engauged. It is supposed to be 10VAC on both sides relative to ground. I'm showing 12.3 but there doesn't seem to be any load on it.
My next pit stop will be the panel L board to check the other end of the power cable from the AV board.
