Only one left to pick up, Tbx (Thomas) his in in customs.
Even though this was a lot of work it made me proud to be part of this world wide Community of us CRT lovers. A few years a go I never would have thought I would get this involved in something with such a widespread global following. It has been great and a excellent learning experience and I hope we all stay together and keep this great Hobby I have become obsessed with alive for years ahead.
This effort went from the USA,Canada,Italy,Australia,Netherlands,Sweden,Switzerland,Denmark and Germany!!! Now that is Effin cool !
Athanasios
_________________
Don't blame your underwear for your crooked ass~ unknown Greek philosopher
"Republicans believe every day is the Fourth of July, but the Democrats believe every day is April 15." --- President Reagan
One Smart Dog!!!
Marquee High Performance Bellows now shipping!!
Marquee Modifications and Performance Enhancement
Marquee C-element and Bellow removal
|
|
| Back to top |
|
 |
Arno P
Joined: 01 Jan 2007
Posts: 282
Location: The Netherlands
|
| Posted: Wed Oct 01, 2008 3:00 pm Post subject: |
|
|
Everyone got is Red C?

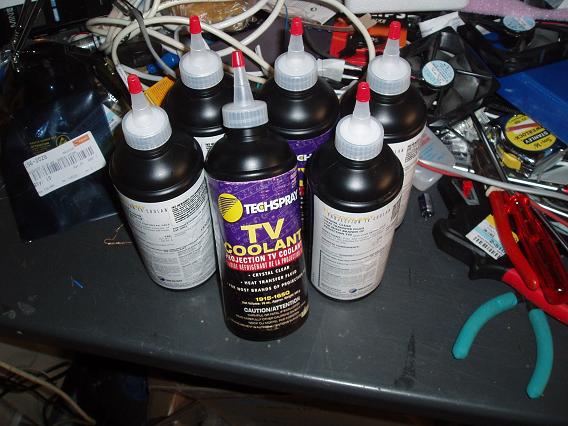

Today I received my glycol (and some neckboard IC's)....so...ready to start
Any pics from anyone that placed the Red C (of the 24 pcs order)?
| Description: |
|
| Filesize: |
57.12 KB |
| Viewed: |
8518 Time(s) |
|
_________________
"Obviously you're not a golfer"
|
|
| Back to top |
|
|
NewbieDAN
Joined: 09 Mar 2006
Posts: 319
Location: Bunbury Western Australia
|
| Posted: Wed Oct 01, 2008 3:22 pm Post subject: |
|
|
Installed the week I got them.
 [/img]
_________________
Sorting the fly sh*t from the pepper
|
|
| Back to top |
|
|
Arno P
Joined: 01 Jan 2007
Posts: 282
Location: The Netherlands
|
| Posted: Wed Oct 01, 2008 3:26 pm Post subject: |
|
|
| NewbieDAN wrote: | Installed the week I got them.
|
How long did you let rtv dry before filling?
And....no damaged bellows?
_________________
"Obviously you're not a golfer"
|
|
| Back to top |
|
|
draganm
Joined: 08 Mar 2006
Posts: 8990
Location: Colorado
|
| Posted: Wed Oct 01, 2008 3:38 pm Post subject: |
|
|
| NewbieDAN wrote: | Installed the week I got them.
|
that green looks wierd, is it a Sony spec. piece from a G90?
|
|
| Back to top |
|
|
Nashou66
Joined: 12 Jan 2007
Posts: 16171
Location: West Seneca NY
|
|
| Back to top |
|
|
Arno P
Joined: 01 Jan 2007
Posts: 282
Location: The Netherlands
|
| Posted: Wed Oct 01, 2008 3:51 pm Post subject: |
|
|
| Nashou66 wrote: | | Arno P wrote: | | NewbieDAN wrote: | Installed the week I got them.
|
How long did you let rtv dry before filling?
And....no damaged bellows? |
Arno thats a barco LC housning differnet than our Marquee's
Athanasios |
Oops
_________________
"Obviously you're not a golfer"
|
|
| Back to top |
|
|
Cgaia
Joined: 15 Mar 2008
Posts: 12
Location: Italy
|
| Posted: Wed Oct 01, 2008 4:15 pm Post subject: |
|
|
| Arno P wrote: | | Everyone got is Red C? |
I finally got them after lot of problems with italian customs.
Many thanks to Athanasios and Arno for their efforts!!!
Ciao
Claudio
_________________
CRT Enthusiast
Owner of Marquee 8500AC and 9501LC
|
|
| Back to top |
|
|
Nashou66
Joined: 12 Jan 2007
Posts: 16171
Location: West Seneca NY
|
|
| Back to top |
|
|
Arno P
Joined: 01 Jan 2007
Posts: 282
Location: The Netherlands
|
| Posted: Wed Oct 01, 2008 5:01 pm Post subject: |
|
|
| Cgaia wrote: | | Arno P wrote: | | Everyone got is Red C? |
I finally got them after lot of problems with italian customs.
Many thanks to Athanasios and Arno for their efforts!!!
Ciao
Claudio |
Italian, Dutch....both terrible customs (but perhaps they got a good reason for it )
_________________
"Obviously you're not a golfer"
|
|
| Back to top |
|
|
NewbieDAN
Joined: 09 Mar 2006
Posts: 319
Location: Bunbury Western Australia
|
| Posted: Thu Oct 02, 2008 5:56 am Post subject: |
|
|
| draganm wrote: | | NewbieDAN wrote: | Installed the week I got them.
|
that green looks wierd, is it a Sony spec. piece from a G90? |
Nice eye......I couldn't get hold of any Marquee spec Green elements well not for under $350 anyway  I managed to track down an element from a Sony 1292 for nix through the generosity of one of our local Aussie forum members, not quite as close to primary like the marquee ones...but better than the clear's that are originally fitted. I'm not sure how the G90's tint compares to the 1292 as there is no information avaliable, unlike the measurements of the G90's.
_________________
Sorting the fly sh*t from the pepper
|
|
| Back to top |
|
|
r.bauer
Joined: 08 Apr 2006
Posts: 280
Location: The Netherlands
|
| Posted: Thu Oct 02, 2008 6:44 am Post subject: |
|
|
|
The 1292 uses the proper green C-element. The G90 is the only projector that uses a different green C-element.
|
|
| Back to top |
|
|
NewbieDAN
Joined: 09 Mar 2006
Posts: 319
Location: Bunbury Western Australia
|
| Posted: Thu Oct 02, 2008 7:33 am Post subject: |
|
|
| r.bauer wrote: | | The 1292 uses the proper green C-element. The G90 is the only projector that uses a different green C-element. |
Well there you go
_________________
Sorting the fly sh*t from the pepper
|
|
| Back to top |
|
|
km987654
Joined: 25 Jul 2007
Posts: 2874
Location: Australia
TV/Projector: Barco BG809s
|
| Posted: Fri Oct 03, 2008 6:43 am Post subject: |
|
|
|
So thats it there are no more Red and Green C elements anywhere right!!
|
|
| Back to top |
|
|
Nashou66
Joined: 12 Jan 2007
Posts: 16171
Location: West Seneca NY
|
|
| Back to top |
|
|
TbX
Joined: 06 May 2006
Posts: 94
Location: Sweden
|
| Posted: Fri Oct 03, 2008 9:49 pm Post subject: |
|
|
finally, I have finished arguing with customs and the c-elements is at home
Many thanks to Athanasios and Arno for their efforts!!!
//TbX
|
|
| Back to top |
|
|
Arno P
Joined: 01 Jan 2007
Posts: 282
Location: The Netherlands
|
| Posted: Sat Oct 04, 2008 11:15 am Post subject: |
|
|
| TbX wrote: | finally, I have finished arguing with customs and the c-elements is at home
Many thanks to Athanasios and Arno for their efforts!!!
//TbX |
No Thanks...enjoy

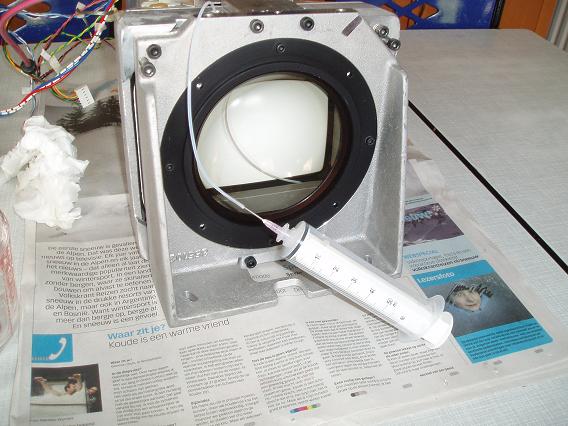

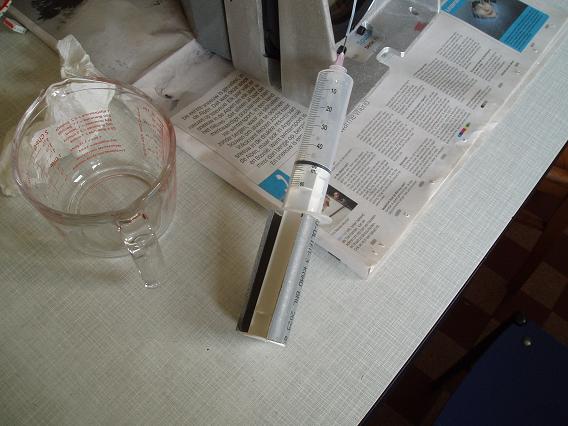

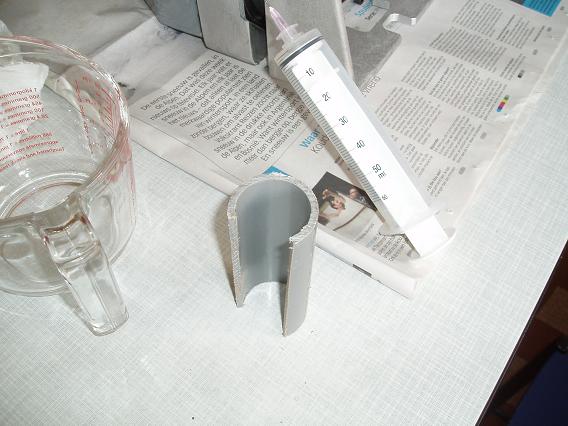

Started on mine today....
| Description: |
|
| Filesize: |
56.36 KB |
| Viewed: |
8345 Time(s) |
|
| Description: |
|
| Filesize: |
47.39 KB |
| Viewed: |
8345 Time(s) |
|
| Description: |
|
| Filesize: |
46.53 KB |
| Viewed: |
8345 Time(s) |
|
_________________
"Obviously you're not a golfer"
|
|
| Back to top |
|
|
Nashou66
Joined: 12 Jan 2007
Posts: 16171
Location: West Seneca NY
|
| Posted: Sat Oct 04, 2008 12:07 pm Post subject: |
|
|
Arno, I found a better way to take out the old C-elements. Look on the side's of the back LC housing and see the pivot pins, they are threaded inside. Take one of the srews you took out of the front housing and screw it into that pin and pull the pin out on both sides . Then remove the back LC housing, you'll have to remove the plastic cover too, the ones i was working on are bare tubes so not sure if you need to remove anything else but i dont think so. Then you have to remove the metal gasket, this is tight fit so if your allen key's "L" is not "short" enough you may have to cut it down to fit between the housing and screws. remove that and its now easier to push the Bellow through the hole and now you are able to use a blade to help in removing the C-element.
Athanasios
_________________
Don't blame your underwear for your crooked ass~ unknown Greek philosopher
"Republicans believe every day is the Fourth of July, but the Democrats believe every day is April 15." --- President Reagan
One Smart Dog!!!
Marquee High Performance Bellows now shipping!!
Marquee Modifications and Performance Enhancement
Marquee C-element and Bellow removal
Last edited by Nashou66 on Sat Oct 04, 2008 1:09 pm; edited 1 time in total
|
|
| Back to top |
|
|
Arno P
Joined: 01 Jan 2007
Posts: 282
Location: The Netherlands
|
| Posted: Sat Oct 04, 2008 12:17 pm Post subject: |
|
|
| Nashou66 wrote: | Arno, I found a better way to take out the old C-elements. Look on the side's of the back LC housing and see the pivot pins, they are threaded inside. Take one of the srews you took out of the front housing and screw it into that pin and pull the pin out on both sides . Then remove the back LC housing, you'll have to remove the plasic cover too, the ones i was working on are bare tubes so not sure if you need to remove anything else but i dont think so. Then you have to remove the metal gasket, this is tight fit so if your allen key's "L" is not "short" enough you may have to cut it down to fit between the housing and screws. remove that and its now easier to push the Bellow through the hole and now you are able to use a blade to help in removing the C-element.
Athanasios |

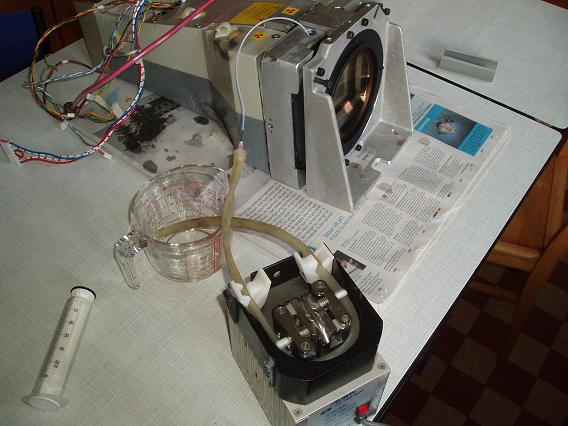

And maybe...I found an even easier way...
