Nashou66
Joined: 12 Jan 2007
Posts: 16171
Location: West Seneca NY
|
| Posted: Sun Mar 08, 2009 3:59 am Post subject: |
|
|
Moving this to the top of the page since analog started a new page with a whore posting
I am taking paypal payments for the bellows , Dale has shown me a computer model and as soon as he set up the terms we will begin to schedual the making of the mold and
start production.
Reposted list of Payments
The Bellow List:
Draganm 3 Paid
CRT_Ben 6 Paid
J Kildare 3 Paid
New fee adjustment,
fee is 3.33% for USA and 4.33% for non USA customers, this will keep it close to with a few pennies of what they charge me.
thanks Guys.
Shipping will be figured out once I receive the bellows, remember I do not know for sure How long it will take
Hopefully they can start as soon as I make the First Payment.
Athanasios
_________________
Don't blame your underwear for your crooked ass~ unknown Greek philosopher
"Republicans believe every day is the Fourth of July, but the Democrats believe every day is April 15." --- President Reagan
One Smart Dog!!!
Marquee High Performance Bellows now shipping!!
Marquee Modifications and Performance Enhancement
Marquee C-element and Bellow removal
|
|
| Back to top |
|
|
draganm
Joined: 08 Mar 2006
Posts: 8990
Location: Colorado
|
| Posted: Sun Mar 08, 2009 4:46 am Post subject: |
|
|
| Nashou66 wrote: | , this will keep it close to with a few pennies of what they charge me.
Athanasios |
IF you stay away from those government liquidation auctions you wouldn't be pinching penny's right now
|
|
| Back to top |
|
|
Nashou66
Joined: 12 Jan 2007
Posts: 16171
Location: West Seneca NY
|
| Posted: Tue Mar 10, 2009 1:56 am Post subject: |
|
|
Hi guys!!! Talked to Dale earlier today and gave him the first payment Via CC !!!!
| Quote: | Tom,
We'll need about 4 weeks to machine the mold and another week to process some parts. If we can do better we will. In the meantime, give me a call so I can get your credit card information squared away. We were going to do 50% down on the tooling, with the remainder due at the time of completion or first part submission. .... We will do a separate bill for parts when you figure out the quantities you need. Thanks again!
I've been buried with projects, but I would like to get you a part drawing by tomorrow.
Dale |
Its on its way guys!!!!! I am excited about this effort ,doing my part for the Marquee Community.
Athanasios
_________________
Don't blame your underwear for your crooked ass~ unknown Greek philosopher
"Republicans believe every day is the Fourth of July, but the Democrats believe every day is April 15." --- President Reagan
One Smart Dog!!!
Marquee High Performance Bellows now shipping!!
Marquee Modifications and Performance Enhancement
Marquee C-element and Bellow removal
|
|
| Back to top |
|
|
Nashou66
Joined: 12 Jan 2007
Posts: 16171
Location: West Seneca NY
|
|
| Back to top |
|
|
draganm
Joined: 08 Mar 2006
Posts: 8990
Location: Colorado
|
| Posted: Tue Mar 17, 2009 6:41 pm Post subject: |
|
|
| Nashou66 wrote: | Ok here is a snap shot of the Drawings By Dale.
Athanasios |
I nominate Athanasios for CRT person of the year.
That's a nice frickin drawing, these guys must work for NASA or something  Can't wait to get my first set and I will almost surely buy 3 more when they are made.
|
|
| Back to top |
|
|
-Pjackso
Joined: 31 Mar 2006
Posts: 791
Location: Oklahoma
|
| Posted: Wed Mar 18, 2009 12:23 am Post subject: |
|
|
I second that motion.
Athanasios for CRT president!
BTW, Athanasios you've got PM.
_________________
-Nothing relevant to add.
|
|
| Back to top |
|
|
AnalogRocks
Forum Moderator
Joined: 08 Mar 2006
Posts: 26706
Location: Toronto, Ontario, Canada
TV/Projector: Sony 1252Q, AMPRO 4000G
|
| Posted: Wed Mar 18, 2009 5:55 am Post subject: |
|
|
I really got to drive down there and see your toys.
_________________
Tech support for nothing
CRT.
HD done right!
|
|
| Back to top |
|
|
Nashou66
Joined: 12 Jan 2007
Posts: 16171
Location: West Seneca NY
|
| Posted: Wed Mar 18, 2009 1:00 pm Post subject: |
|
|
| AnalogRocks wrote: | | I really got to drive down there and see your toys. |
That be great... be ready for some work though!!! Having some one here would be more motivation to get the Blend fully set up! But you would have to help me remove my drooped ceiling, the layer of hard foam insulation, a layer of regular insulation, then we'd have to work around the rooms ceiling joist's to get to the hose floor joist to mount the pulley Projector mount of course after having both aligned on the floor and then transferring the mount locations to the floor joists. then we have to pull the Projectors up to the mount while one secures it and the other holds the ropes. you might have to stay two days
Athanasios
_________________
Don't blame your underwear for your crooked ass~ unknown Greek philosopher
"Republicans believe every day is the Fourth of July, but the Democrats believe every day is April 15." --- President Reagan
One Smart Dog!!!
Marquee High Performance Bellows now shipping!!
Marquee Modifications and Performance Enhancement
Marquee C-element and Bellow removal
|
|
| Back to top |
|
|
Nashou66
Joined: 12 Jan 2007
Posts: 16171
Location: West Seneca NY
|
| Posted: Wed Mar 18, 2009 4:25 pm Post subject: |
|
|
Just got the updated drawings with new dimensions after i gave him the entire lens assembly to measure and look at how it al fits together. He did a nice cross section of the whole thing. And here is his E-mail to me.
Tom,
I modeled the other components of the lens assembly by taking measurements of the parts provided. I adjusted the outside diameter of the round undercut area of the bellows to more closely match the counterbore (5.830) in the cast aluminum housing as my original model had a diameter larger than the counterbore. Based on the measurements, the gap created between the lens base and the aluminum housing is .044. The total seal thickness at that area including the beads is .065. That puts .021 squeeze on the seal which results in a 32% compression. That is pretty much where we would like to be in terms of compression.
I also updated the part drawing to suit the modification and added some missing dimensions. Also added is an approval sign off box. If the part drawing looks good and you agree with what is shown in the lens assembly, please sign and return the drawing. If you have any questions, give me a call or email.
The drawing is the same except for the new Dimensions so i am not reposting it.
Lens Assembly Cross Section
So I think I am going to sign off on it.
Athanasios
_________________
Don't blame your underwear for your crooked ass~ unknown Greek philosopher
"Republicans believe every day is the Fourth of July, but the Democrats believe every day is April 15." --- President Reagan
One Smart Dog!!!
Marquee High Performance Bellows now shipping!!
Marquee Modifications and Performance Enhancement
Marquee C-element and Bellow removal
|
|
| Back to top |
|
|
Heywood Jablome
Joined: 12 Mar 2006
Posts: 1548
|
| Posted: Wed Mar 18, 2009 4:34 pm Post subject: |
|
|
| Nashou66 wrote: | Ok here is a snap shot of the Drawings By Dale.
Athanasios |
Apple Rubber... I know them well. Good shop! A supplier of mine here, of largely (but not entirely) O-rings.
_________________
"Those countries which lag behind in industry, in the application of mechanics and technical chemistry, in the careful selection and utilization of natural products, where the respect for such activities does not permeate all classes of society, will unfailingly decline in prosperity. They will sink faster when neighbor states, with an energetic exchange between science and industry, go forward with renewed vitality."
-- Baron Alexander von Humboldt: 1769-1859
|
|
| Back to top |
|
|
CRT_Ben
Joined: 28 Aug 2006
Posts: 1684
Location: Northern Virginia
|
| Posted: Wed Mar 18, 2009 5:00 pm Post subject: |
|
|
|
Correct me if I'm wrong, but isn't the C-element in the "Lens Assembly Cross Section" picture above flipped upside down?
|
|
| Back to top |
|
|
draganm
Joined: 08 Mar 2006
Posts: 8990
Location: Colorado
|
| Posted: Wed Mar 18, 2009 6:13 pm Post subject: |
|
|
| CRT_Ben wrote: | | Correct me if I'm wrong, but isn't the C-element in the "Lens Assembly Cross Section" picture above flipped upside down? |
the C-element is pointing up, how could it be up-side down.
|
|
| Back to top |
|
|
CRT_Ben
Joined: 28 Aug 2006
Posts: 1684
Location: Northern Virginia
|
| Posted: Wed Mar 18, 2009 6:28 pm Post subject: |
|
|
| draganm wrote: | | CRT_Ben wrote: | | Correct me if I'm wrong, but isn't the C-element in the "Lens Assembly Cross Section" picture above flipped upside down? |
the C-element is pointing up, how could it be up-side down. |

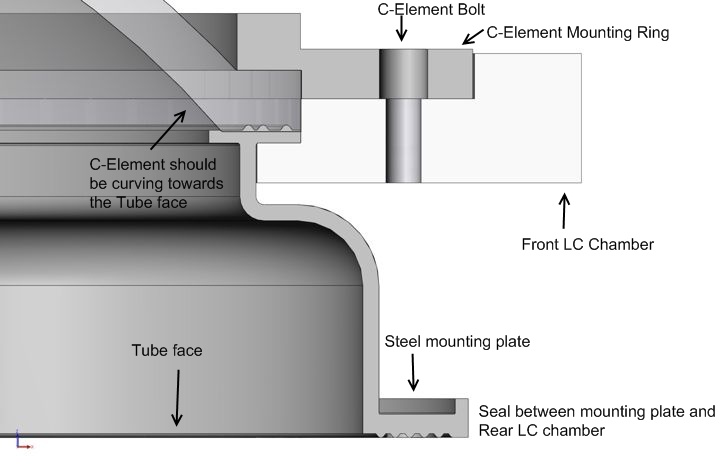

I couldn't think of a better way to explain it so I marked up the picture Athan posted. What do you think?
| Description: |
|
| Filesize: |
50.73 KB |
| Viewed: |
7081 Time(s) |
|
|
|
| Back to top |
|
|
draganm
Joined: 08 Mar 2006
Posts: 8990
Location: Colorado
|
| Posted: Wed Mar 18, 2009 7:08 pm Post subject: |
|
|
wow, good catch. The C-element is indeed inverted.
|
|
| Back to top |
|
|
Nashou66
Joined: 12 Jan 2007
Posts: 16171
Location: West Seneca NY
|
|
| Back to top |
|
|
stefuel
Joined: 07 Mar 2006
Posts: 3353
Location: Green Harbor MA USA
|
| Posted: Wed Mar 18, 2009 9:53 pm Post subject: |
|
|
| AnalogRocks wrote: | | I really got to drive down there and see your toys. |
As long as he's not playing with himself
_________________
Chip
A Barco is only a AmPro with training wheels
Card carrying member of the AVS chain gang.
|
|
| Back to top |
|
|
AnalogRocks
Forum Moderator
Joined: 08 Mar 2006
Posts: 26706
Location: Toronto, Ontario, Canada
TV/Projector: Sony 1252Q, AMPRO 4000G
|
| Posted: Thu Mar 19, 2009 1:19 am Post subject: |
|
|
| stefuel wrote: | | AnalogRocks wrote: | | I really got to drive down there and see your toys. |
As long as he's not playing with himself |
If thats the case I'm out.....
_________________
Tech support for nothing
CRT.
HD done right!
|
|
| Back to top |
|
|
Nashou66
Joined: 12 Jan 2007
Posts: 16171
Location: West Seneca NY
|
| Posted: Fri Mar 20, 2009 12:34 am Post subject: |
|
|
ok Dale corrected the drawing:
Tom,
Here it is again with the C-element in the correct orientation. I just didn't know any better, but it looks like it makes more sense this way. The inside edge of the seal is shown extending into the C-element. Obviously, when installed in the real world, that portion of the seal will deflect out of the way and follow the curve of the C-element. Again, this is based on the measurements of the bellows and mating components provided. I can shorten that extension up if you want to. Let me know what you think.
This looks correct now, And I am letting him know to leave the small excess over hang as it probably adds a bit more "seal" around the lens.
Athanasios
_________________
Don't blame your underwear for your crooked ass~ unknown Greek philosopher
"Republicans believe every day is the Fourth of July, but the Democrats believe every day is April 15." --- President Reagan
One Smart Dog!!!
Marquee High Performance Bellows now shipping!!
Marquee Modifications and Performance Enhancement
Marquee C-element and Bellow removal
|
|
| Back to top |
|
|
bbfarmht
Joined: 27 May 2006
Posts: 1273
Location: Where the Mississippi runs east to west!!
|
| Posted: Fri Mar 20, 2009 12:51 am Post subject: |
|
|
I'm not sure of the stiffness of the material, but it could deflect enough to compromise the seal!!
_________________
Adam
"Any society that would give up a little liberty to gain a little security will deserve neither and lose both"
Benjamin Franklin
|
|
| Back to top |
|
|
|
|
