Want a different bundle?
Contact us
for options!
 All
EyeOne Pro's now include CalMAN calibration tables for LED based displays,
carrying case, and tripod holder!
CalMAN Home Edition with EyeOne Pro
Includes LED calibration tables, EyeOne Pro tripod holder,
and soft carrying case
CalMAN info |
|
|
|
CalMAN Enthusiast
Edition with EyeOne Pro
Includes LED calibration tables, EyeOne Pro tripod holder,
and soft carrying case
CalMAN info |
|
|
|
EyeOne Pro
LED calibration
Already have a meter? Add
calibration tables to CalMAN for accurate support of
LED based displays. |
|
|
|
|
CalMAN Home
Edition for the EyeOne Pro / ColorMunki (Software Only) |
|
|
|
|
|
|
Sign up
today to receive the latest EyeOne Pro news!
We ship priority to anywhere in the world!
Please contact
spectracal@curtpalme.com for a custom shipping quote if our shopping
cart does not have the option you want.
Payment methods include PayPal and all major credit cards
(PayPal account *not* needed to pay by credit card).
Our payment processor
will automatically convert the
amount to
your local currency.
Orders ship direct from
SpectraCal in Washington State, USA.
|
We've
worked out an exclusive deal for our members to bring you this product at
a price lower than what everyone else pays anywhere on the internet! Buy direct
from SpectraCal at prices lower than buying off their own website! Same product,
same support, just more money in your pocket at the end of the day.
The EyeOne Pro is typically bundled with high end photography software not
useful for home theater use, driving the price well over $1000. We offer you the meter without this
useless software at approximately half the price!
Confused about meters? See our
FAQ: Which meter
is right for me?

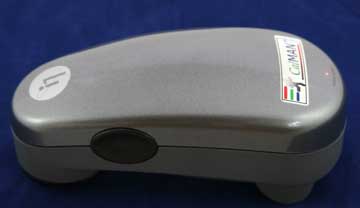

The EyeOne Pro Spectroradiometer (also known as the i1 Pro) is our hands-down
choice for a professional calibrator's primary instrument. It's the only
hand-held device that provides the full accuracy of a professional
spectrophotometer. If you carry only one meter with you when you visit customer
sites, the EyeOne Pro should be that meter. The EyeOne Pro sensor includes 100
detectors that each measures a very narrow segment of the light spectrum.
The EyeOne Pro is manufactured in Switzerland and calibrated at the factory
by X-Rite (against a reference system traceable to a National Institute of
Standards and Technology (NIST) source. Each ships with a certificate of
performance which warrants the accuracy of the meter for a period of a year.
Each EyeOne Pro is calibrated against is own base plate, a ceramic tile based on
barium sulfate according to DIN 5033 and certified by the Physikalisch
Technische Bundesanstalt in Germany.
CalMAN Video Calibration Software is tightly integrated with the EyeOne Pro,
including, for example, such features as the ability to program the action
button on the EyeOne Pro. The EyeOne Pro is also suited for use with our
Greyscale
Calibration for Dummies guide as it is also supported by the ColorHCFR
software (but not as extensively as with CalMAN as the authors of
CalMAN are an
OEM of X-rite and therefore have access to a much lower interface in the
meter than with any other software).
What
is Backlight LED Calibration? More and more new displays are arriving based on
Backlight LED technology. One industry analyst
estimates that by next year 40% of flat-panel
displays will use Backlight LEDs. Existing
meters give erroneous results when calculating
these displays. The errors aren't huge, but
they're there, and most people don't go to the
trouble of calibrating their displays for the
purpose of making them "not too wrong."
Accurate results from backlight LED devices can
be achieved if the meter has an additional
calibration table to account for this discrepancy.
Included now are backlight LED tables for
the professional EyeOne Pro spectroradiometer. It does not matter if the
display is edgelit, backlit or backlit RGB - they
all work with the Backlight LED calibrated EyeOne
Pro.
All
calibration is performed in SpectraCal's
NIST-traceable calibration lab using a Konica
Minolta CS-2000 reference meter. This is the
only source for Backlight LED calibrated EyeOne
Pro's.
They aren’t available anywhere else.
Why use a spectroradiometer instead of a less expensive pod colorimeter?A pod
device such as the Spyder2, Spyder3, Eye-One Display 2/LT, Gamma 5, or Chroma 5 measures light through filters and estimates the color based on a
relatively small number of sensors, usually three and sometimes a few more. The
Eye-One Pro uses a holographic diffraction grating with a diode array (no
filters to degrade) similar to what is found in laboratory grade instruments.
The Eye-One Pro samples with 100 sensors instead of three and uses the
internationally recognized scientific standard method from CIE to calculate the
x and y coordinates from those samples. The end result is increased accuracy
that remains accurate over time.
Technical Specifications
-
Supported measurement modes:
-
Reflectance single measurement
-
Reflectance scanning measurement with automatic patch
detection
-
Emission: radiance measurement (monitor measurement)
-
Emission: irradiance measurement (light measurement)
-
Spectral analyzer: Holographic diffraction grating with 128
pixel diode array
-
Optical resolution: 10nm
-
Physical sampling interval: 3.5nm
-
Spectral data: Range: 380 to 730 nm in 10nm steps
-
Measurement aperture: 4.5mm diameter
-
Measurement geometry: 45°/0° ring illumination optics, DIN
5033
-
Light source: Gas filled tungsten (Type A)
-
Physical filters: No or UV cut (Filters not exchangeable)
-
Inter-instrument agreement: Average dE*94 0.4, max. dE*94
1.0 (Deviation from X-Rite manufacturing standard at 23°C for single
measurement mode on 12 BCRA tiles, D50, 2°)
-
Short-term repeatability: ΔE*94 <= 0.1 (D50, 2°), with
respect to the mean CIELab value of 10 measurements every 3 seconds on white
-
Data format:
-
Spectral radiance (mW/nm/m2 /sr);
-
Luminance Y (cd/m2)
-
Measurement range: 0.2 to 300 cd/m2
-
Short-term repeatability: x,y: +/- 0.002 typical (CRT
5000°K, 80 cd/m2)
-
Type: Cosine-corrected diffuse light measurement head
-
Diameter: 6.0 mm
-
Data format: Spectral irradiance (mw/nm/m2), Illuminance Y (lux)
-
Physical dimensions: 6”L x 2.6”W x 2.6”H (151 x 66 x 67mm)
-
Weight: 6.5 oz (185g)
-
Power conditions: Device powered by USB. No additional
charger or battery required. USB 1.1 high power device.
Display Support
Supports all known display types including (but not necessarily limited to):
LCD, LCoS, SXRD, CRT, Plasma, DLP, and LED based displays.
Materials Included In addition to the EyeOne Pro
Spectroradiometer itself, the EyeOne Pro OEM kit contains:
-
Flat Panel Holder & Counter Weight
-
Ambient Head (Diffuser or Cosine Corrector) & Cap
-
Small plastic calibration base plate
-
USB cable
-
CD containing documentation, etc.
-
NIST certificate
-
Tripod holder
-
EyeOne Pro soft carrying case
-
Get Grey DVD of calibration patterns

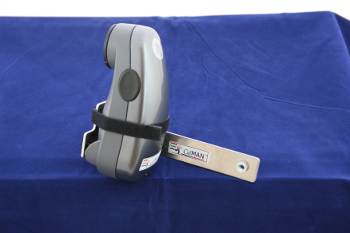

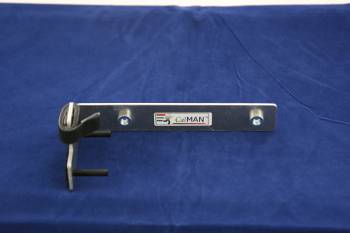

Tripod Holder Many people find that the addition
of a tripod holder for their EyeOne Pro significantly aids in the speed and ease
their calibration sessions. It is included in our kits.

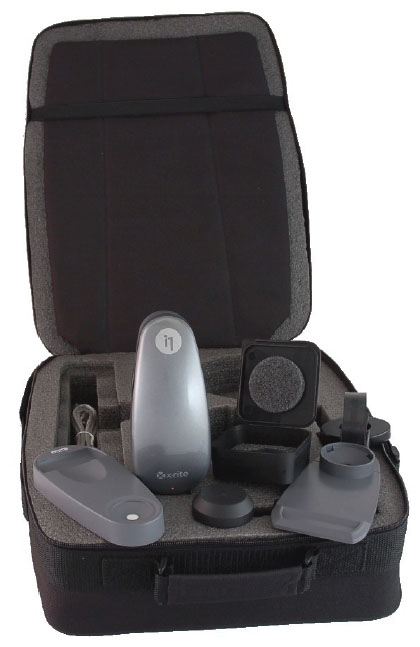

Soft Carrying Case
A custom EyeOne Pro soft carrying case is included with all
our orders. Perfect for keeping your EyeOne Pro and accessories safe!
Warranty
All X-Rite meters are backed by a strong one-year warranty. Click
here
for full warranty details.
Using your EyeOne Pro with CalMAN
See the
EyeOne Pro Quick Start Guide for instructions on installing the EyeOne Pro
driver.
Why it matters Where you Buy Your Meter These meters are sold by SpectraCal, an authorized
X-rite OEM reseller. Why does that matter?
When you buy an X-rite meter through us, you know:
- The meter you receive is a
brand-new meter.
- The meter you receive is
the current revision of the meter.
- The meter you receive is
never B-stock, refurbished material, or gray market cut-outs.
- The meter you receive has
been calibrated at the factory.
- The meter you receive has a
recent calibration date. The calibration of the meter is certified
for one year. You know that you get a full
twelve months’ use of the meter before it may need recalibration.
- The meter you receive carries an original X-rite factory warranty.
In short, when you buy a meter through us, you know what you are getting,
and you know you are getting the best.
Reviews/Testimonials
"I just recalibrated my H79 projector last night with a $25,000 Konica
Minolta CS-1000 which is a pain to use because it can take up to 2 minutes per
reading at low light. Anyhow I check the results with my i1Pro and guess what
the difference between the two would not be noticeable and at the most was [off]
no more than 0.5dE grayscale. Not bad for a meter costing less than $700." -
Derek
Need more information? See the official EyeOne Pro forum
thread!
Visit the SpectraCal Discussion/Support Forum
Questions, comments or feedback should be directed to
SpectraCal at:
spectracal@curtpalme.com
|
