X-Rite Chroma 5 Colorimeter with CalMAN

We've worked out an exclusive deal for our members to bring you this product at a price lower than what everyone else pays anywhere on the internet! Buy direct from SpectraCal at prices lower than buying off their own website! Same product, same support, just more money in your pocket at the end of the day.

An an OEM of X-Rite, SpectraCal is uniquely positioned to offer you this meter at a price considerably lower than anywhere else! This is the same meter that Sencore sells as the ColorPro V in their $4,000 package!

Confused about meters?  See our FAQ: Which meter is right for me?

The X-Rite Chroma 5 is a quick-reading colorimeter with far more accuracy than other colorimeters. The Chroma 5 offers excellent low light level measurement capability, and it is appropriate for use in calibrating any video display technology.

An excellent match for the CalMAN Video Calibration Software.

CalMAN's meter profiling allows Chroma 5 users to achieve even higher accuracy. Using CalMAN's meter profiling, you can profile your Chroma 5 against a spectroradiometer (such as the X-Rite EyeOne Pro). CalMAN compares the differences in readings, then allows you to automatically adjust what the Chroma 5 records as if it were the Eye One Pro.

The Chroma 5 is manufactured and calibrated by the Gretag Macbeth division of X-Rite Incorporated. It is calibrated at the factory with a reference instrument traceable to a National Institute of Standards and Technology (NIST) source.

What is Backlight LED Calibration?

More and more new displays are arriving based on Backlight LED technology. One industry analyst estimates that by next year 40% of flat-panel displays will use Backlight LEDs. Existing colorimeters give erroneous results when calculating these displays. The errors aren't huge, but they're there, and most people don't go to the trouble of calibrating their displays for the purpose of making them "not too wrong."

Accurate results from backlight LED devices can be achieved if the colorimeter has an additional calibration table to account for this discrepancy. Included now are Backlight LED tables for the workhorse Chroma 5 colorimeter. It does not matter if the display is edgelit, backlit or backlit RGB - they all work with the Backlight LED calibrated Chroma 5.

All calibration is performed in SpectraCal's NIST-traceable calibration lab using a Konica Minolta CS-2000 reference meter. This is the only source for Backlight LED calibrated Chroma 5's. They aren’t available anywhere else.

What if I already own a Chroma 5 and want Backlight LED Calibration?

So, what do I do if I already own a Chroma 5? If you order a Chroma 5 NIST recertification using the 'Buy Now' button above, Backlight LED calibration will be included at no additional charge for use with CalMAN.

Here's how recertification works: When you order, you will be given a recertification appointment date. Rather than sending your meter in now, wait until your appointment before sending it in. That way you don’t spend so long without the use of your meter.

Technical Specifications

Luminance Range: 0.05 - 1000 cd/m^2

Accuracy:

For 1.0 cd/m^2 <= Luminance <= 1000 cd/m^2, Luminance: +/- 3%; White (x and y): +/- 0.002; Color (x and y): +/- 0.004
For 0.05 cd/m^2 <= Luminance < 1.0 cd/m^2, Luminance: +/- 5%; White (x and y): +/- 0.006; Color (x and y): +/- 0.006 .

Repeatability:

For 1.0 cd/m^2 <= Luminance <= 1000 cd/m^2, Luminance: +/- 0.5%; White (x and y): +/- 0.001; Color (x and y): +/- 0.001
For 0.05 cd/m^2 <= Luminance < 1.0 cd/m^2 Luminance: +- 2%; White (x and y): +/- 0.002; Color (x and y): +/- 0.002

Measurement Units: Luminance may be displayed as either foot Lamberts (fL) or cd/m² (Nits)

Measurement Speed: 350 ms (3 samples per second)

PC Interface: USB

Display Support

Supports all known display types including (but not necessarily limited to): LCD, LCoS, SXRD, CRT, Plasma, DLP

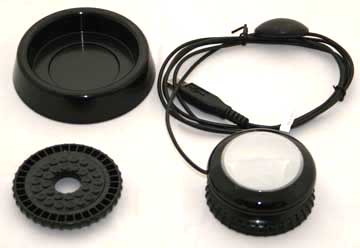

Materials Included

The Chroma 5 kit SpectraCal ships contains:

• The Chroma 5 Colorimeter
• The Chroma 5 base plate
• Suction cup attachment
• A read head for use with CRTs, and one for use with all other displays
• A NIST certificate
• Pro Mini Carrying Case
• Projector Kit (Tripod holder and diffuser)
• Get Grey DVD of calibration patterns

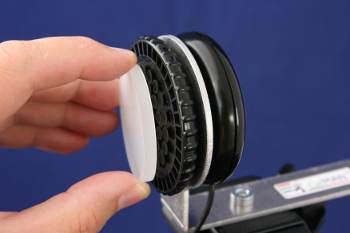

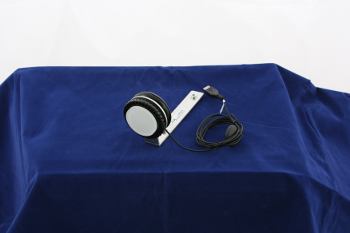

Projector Kit

Tripod Holders provide you with the flexibility to pick the ideal location for your non-contact meter reading to ensure optimal results with minimal hassle. Increase your productivity, accuracy and flexibility with a Chroma5 Projector kit. The kit includes a tripod holder for mounting your Chroma5 in exactly the position and also an opal diffuser which enables you to calibrate the light coming out of your projector.  It is available for order separately and included for free in our kits.

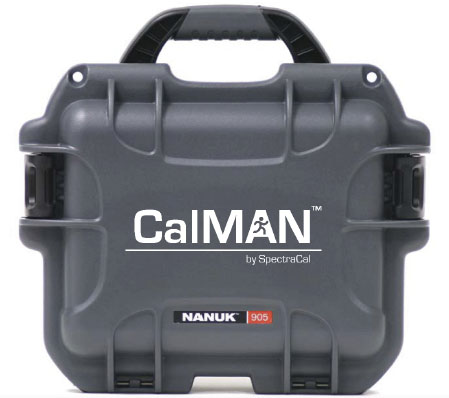

Professional Carrying Case

A custom mini-pro carrying case with custom form fitted foam insert is included with all our orders. Features: Waterproof, Impact resistant, Auto pressure release valve, Dual Power Claw Latching System, Lifetime Guarantee, Exterior Dimensions are L315mm x W255mm x H150mm (L12.5” x W10.1” x H6.0”). The custom foam insert allows for perfect fit of each included component.

Warranty

All X-Rite meters are backed by a strong one-year warranty. Click here for full warranty details.


Using your Chroma 5 with CalMAN

See the Chroma 5 Quick Start Guide for instructions on installing the Chroma 5 driver and using it was CalMAN.


Why it matters Where you Buy Your Meter

These meters are sold by SpectraCal, an authorized X-rite OEM reseller. Why does that matter?

When you buy an X-rite meter through us, you know:

• The meter you receive is a brand-new meter.
• The meter you receive is the current revision of the meter.
• The meter you receive is never B-stock, refurbished material, or gray market cut-outs.
• The meter you receive has been calibrated at the factory.
• The meter you receive has a recent calibration date. The calibration of the meter is certified for one year. You know that you get a full twelve months’ use of the meter before it may need recalibration.
• The meter you receive carries an original X-rite factory warranty.

In short, when you buy a meter through us, you know what you are getting, and you know you are getting the best.

Reviews/Testimonials

"Got my package today. So fast on the shipping. I just paid the other day. Nicely packaged sharp looking unit. First impression is quality. Nice job with the custom packing insert all velvety and such. First rate. Can't wait to get this hooked up and going. Nice job SpectraCal. Thanks for the great customer service!" - Ray

"I used last month's sale opportunity and got a Chroma5, calibrated my RS1 with it, to great results. A lot more accurate than the EyeOne LT I had before, especially at low light values, where the LT was dancing all around the bull's eye - frustrating. (The Chroma5 does that a bit at very low light values as well, but to a much lesser extent, as it is still "workable" even then.) After using the Chroma5 I must agree that it's a deal even at its non-sale price. Seriously. What a great little toy." - Scooby

Need more information? See the official Chroma5 forum thread!
