Blu-Wire T1/R1 HDMI Extension Kit

Enable long-distance HDMI - up to 200 feet from source to display! Unlike most HDMI extenders ours is easy to set up, reliable, uses only one cable, and has FULLHD 1080p support! No tweaking or adjustments required - it just works!

Having issues with picture dropouts, blank screens, or dancing dots in the image? You need to use our HDMI extender!

Even the best HDMI cables are only certified to approximately 45 feet when used as Category 1 ("Standard" 1080i/720p at 74.5Mhz) or 25 feet as Category 2 ("High Speed" 1600p at 340Mhz). The distances are reduced in electrically noisy environments or when lower quality (less expensive) cables are used.

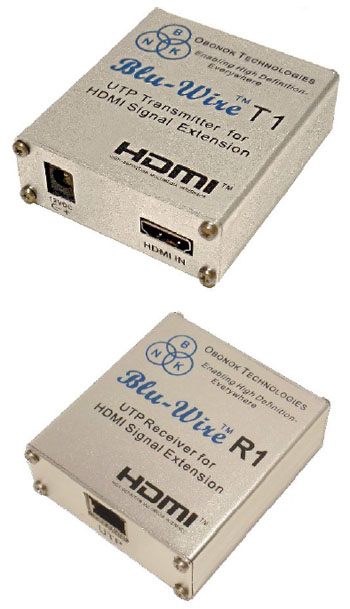

The Blu-Wire HDMI T1 Transmitter and R1 Receiver provide a quick and easy method of extending HDMI v1.3 or v1.2 + HDCP over cost-effective UTP (unshielded twisted pair) networking cable. NO adjustments for ease of installation and maintenance, and full 1080p + HDCP performance over SINGLE UTP CatX cable.

The Blu-Wire T1/R1 HDMI Extension Kit is produced by Obonok Technologies, the world’s leading technology for HDMI signal distribution over category cable. Two U.S. patents are pending on their proprietary technology used in this kit.

Need to go farther than 200 feet or split/distribute an HDMI signal? Contact us for details!

How is the Blu-wire T1/R1 Extender Kit better than other HDMI extenders?

• Other solutions require two CatX cables. Our solution uses only one cable which reduces costs and making installation easier. Two less connections also means 50% less chance of connection-related failures.
• Other solutions are only rated for 1080i and 1600 x 1200 with bandwidth in the neighbourhood of 2 Gbps or less. Our solution supports FullHD 1080p with 6.6 Gbps of bandwidth. Future-proof your setup by making sure your HDMI extender supports 1080p!
• Other solutions are sensitive to cell phones and other electrical noise such as fluorescent lighting causing noise and/or dropouts. Our solution uses technology that is NOT sensitive to either - you do not need to use more expensive shielded cables required by most of the other solutions.
• Other solutions require adjustment and tweaking to maintain a picture. Our solution has Auto Gain and Auto EQ which results in a good signal regardless of distance with no adjustments needed.

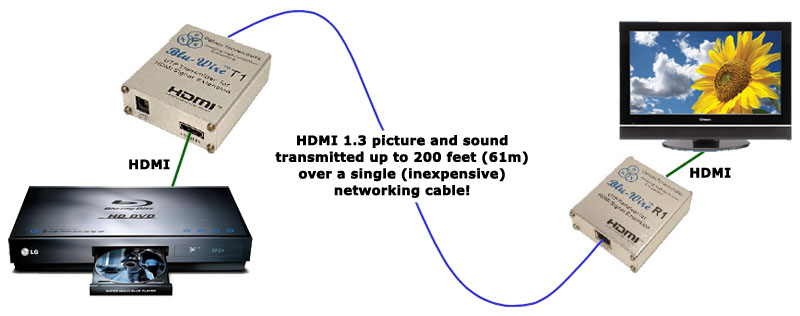

Hook-up

Hooking up the T1/R1 HDMI extender is extremely simple. Using short HDMI cables, plug the T1 transmitter into the source and the R1 receiver into the display then connect the two using a UTP networking cable and plug in the power supply. Done!

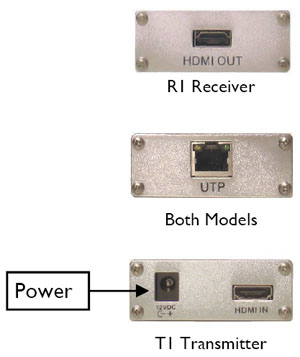

Connections

Features

• Extend HDMI v1.3 / 1.2 + HDCP + Power over a single UTP (CatX)
• HDMI extension to 200’ / 61m @ 1080i/720p; 150’ / 46m @ 1080p
• Auto Gain / Auto EQ for plug-and-play setup and zero maintenance
• Not sensitive to electrical interference from nearby lighting or mobile phones
• Uses unshielded Cat6 or selected Cat5e cables (see recommended cables below)

Specifications

• Total Bandwidth: up to 6.6 Gbps
• Maximum Resolution: 1080p / 1920 x 1200
• Maximum Distance (from transmitter to first receiver): 200 ft. / 61m @ 1080i, or 150 ft. / 46m @ 1080p
• HDMI Connectors (1): Type A 19-pin F
• Link Connectors (1): RJ-45 F
• Power Supply: 12V DC (T1 transmitter only—included)
• Power Consumption: 6 Watts (max.)
• Operating Temperature: -15C to 50C
• Storage Temperature: -40C to 85C
• HDMI Specifications Supported: v1.1, 1.2 & 1.3
• HDCP Compliant
• Cable Compatibility: Solid, bonded Cat5e/6/7 (Cat6 or Cat7 required for 1080p applications)
• Gain / EQ / Skew Compensation: Automatic; adjustment-free
• Dimensions: 71mm L x 64mm W x 24mm H
• Patents Pending: U.S. 60956694 and 60968046

Datasheet: T1R1_SpecSheet.pdf (340Kb).

Recommended UTP (network) cables

• Belden Home Choice 2510 Cat6
• Shaxon UL725-8 Cat6
• Belden 7988R Cat5e
• Solid, bonded Cat6 highly recommended for 1080p applications
• Not recommended: Stranded cable, “soft” network jump cables, Belden 7987R/P or other "skew-free" cables

Note: Extension distance may vary due to differences in source material, resolution, and cable. For example, cheaper Staples brand Cat5e at 1080i/720p resolution can be expected to extend HDMI v1.2 approximately 100 to 125 ft. For better results, use solid Cat6 or one of the recommended cables.

Need more information? See the 'Blu-wire T1/R1 HDMI Extension Kit FAQ' in our forum!
